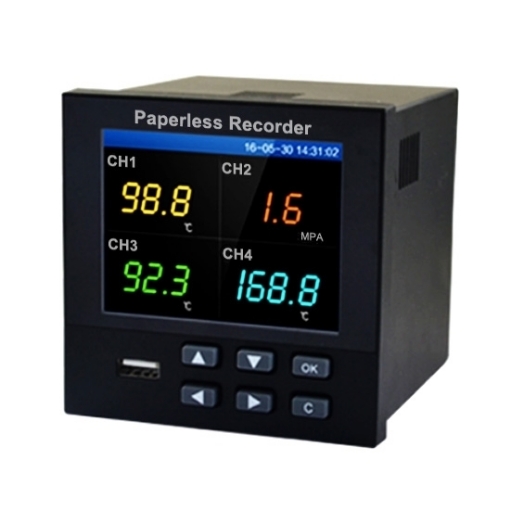

    Paperless Recorder, 1/4/8/12/18 Channel

    3.5-inch paperless recorder with 1 USB data interface, optional AC/DC power supply, 18 input channels, 4 alarm outputs, 1 RS485 communication output, can be used to collect, calculate, display, and record temperature, pressure, current, voltage, and other input signal data.
    SKU: SISCO-PLR-CH18
    *
    *
    $556.24
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    3.5-inch paperless recorder optional 18 input, can realize temperature/pressure/current/voltage online monitoring and U disk data download, full channel isolation technology, each channel does not interfere with each other, for thermocouple and other special signal technology upgrades, really realize accurate records.

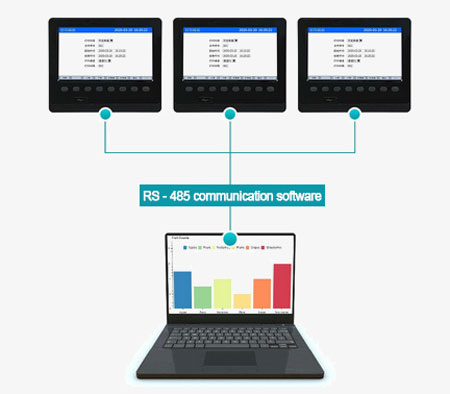

    Smart communication

    Intelligent communication and interconnection of multiple machines

    • Realize online communication of multiple recorders and easily control field data.
    • 7" TFT color LCD display screen.
    • Data can be easily copied and analyzed with the complimentary software.
    • Modular design for free expansion, data can be easily copied and analyzed with complimentary software.

    Application

    Paperless recorders are mainly used in various application scenarios such as metallurgy, petroleum, chemical industry, building materials, papermaking, food, pharmacy, colleges and universities, biological research, heat treatment, water treatment and so on.

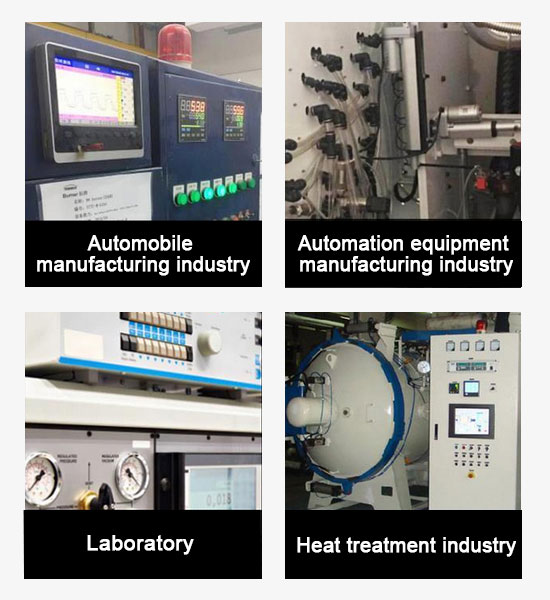

    Paperless recorder application

    Specs
    Model SISCO-PLR-R9600
    Shipping weight 1kg
    Dimension (W*H*L) 96*96*101mm with hole size 92*92mm
    Display 3.5 inches TFT true color LCD display, 320*240 resolution
    Power supply * 1. AC power: AC 176~264V, 47~63Hz
    2. DC power: DC 24V
    Power dissipation ≤20W
    External power supply 24VDC, 150mA (for external device)
    Internal storage 48M bytes flash
    Note: All the data is stored in flash memory to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure.
    External storage U disk support (standard USB2.0 communication interface)
    Number of Channel * 1, 2, 3, 4, 6, 8, 12, 16, 18
    Input signal 1. Standard signal: 0-20mA, 4-20mA, 0-5V, 0-10V, 1-5V
    2. mV signal: 0-20mV, -20~20mV, 0-100mV
    3. Thermocouple signal: S, B, K, T, E, J, R, N type
    4. RTD signal: Pt100, Cu50
    Alarm output * Up to 4 alarm outputs, relay parameter: NO, 2A / 250VAC
    Communication output * RS485
    Communication protocol Modbus communication protocol
    Sampling period 1s
    Recording interval 1s~60min (by parameter setting)
    Functions Different data display forms: Front Panel, Digital Display, Bar Graph, Real-time Curve, Power Off Safeguard, Alarm, History
    Operating temperature 0~50℃ (32~122℉)
    Relative humidity 10~85%RH (No condensation)
    Storage temperature and humidity Temperature: -20~+60℃ (-4~+140℉), Humidity: 5~95%RH (No condensation)
    Warranty 3 years
    FAQs

    Q1: What is a paperless recorder?
    A1: A paperless recorder is an instrument that records the collected data/arithmetic data on a time-based axis in the instrument's internal storage system without consuming any common recording facilities, such as paper, pen, and ink. The stored data recorded inside the instrument is displayed on the LCD screen after calculation and simulation. Commonly used display LCD screens are more extensive. On the LCD screen, digital display, bar graph display, curve display, alarm list, etc. can be displayed.

    Q2: What is the use of different channel numbers of paperless recorders?
    A2: The number of channels of urgent interest means that the scene is necessary to record the next few data on the selection of several channels, for example, if the scene is only a point of temperature, then choose a channel, there are two points of temperature necessary to record the selection of two channels. Usually in order to facilitate future expansion, you can choose a few more channels on the basis of this backup.

    Q3: What paperless recorder alarm is how to achieve?
    A3: The alarm function of the paperless recorder is important to refer to the relay alarm output, if the scene is necessary to alert the alarm, it is necessary to connect an external acoustic and optical alarm, exceed the standard will trigger the alarm, receive the police light to achieve the alarm function.

    Tips: Paperless recorders in use only a period of time to record the data, and then can no longer record, but the performance of normal how to solve this?

    Check whether the trigger conditions for recording are reformed and whether the current work is in the conditions for triggering the record, if the instrument does not know the working condition of the trigger conditions data is not recorded; deceive check whether the record mode is set to not cyclic mode if you choose not cyclic mode when the instrument memory space is full of data when the newly generated data will not be recorded.
