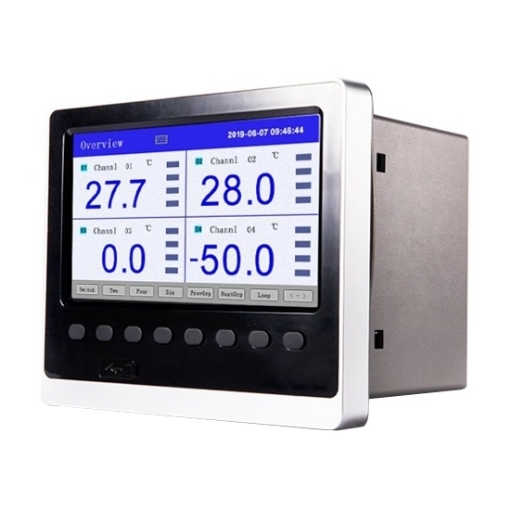

Paperless Chart Recorder, 48 Channel

The 7-inch paperless chart recorder has a USB interface, SD card socket, EtherNet interface, and mini printer interface, with optional 48 input channels, 12 analog outputs, 18 alarm outputs and RS485/RS232/EtherNet communication outputs, it is a reliable paperless chart recorder engineers need.
SKU: SISCO-PLR-CH48
*
*
$921.32
i h
Free shipping
Delivery date: 7-12 days
Overview


Paperless recorder up to 48 input channels, designed for industrial automation data acquisition system, with a secure built-in data storage and network connection, support U disk and SD card data transfer and backup, and can be directly connected to a printer for printing, suitable for more occasions data recording and display.

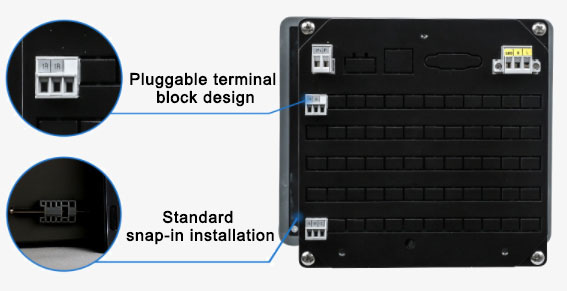

Paperless recorder terminals

32-bit ARM microprocessor

  • High-speed, high-performance processor, built-in embedded operating system, screen switching response time ≤ 0.3S.
  • TFT high brightness LCD display, clear screen display, adjustable screen brightness, so that the use of paperless recorder becomes a kind of enjoyment.

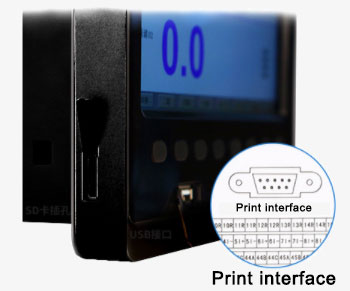

Paperless recorder printer interface



Standard voltage signal transmission

  • sisco 6000C paperless recorder, using intelligent signal board design.
  • Input and output signal types up to 44 kinds, more than 2 times than ordinary recorders.
  • Realize real multi-functional signal input and output.



Application

Paperless recorders are mainly used in various application scenarios such as metallurgy, petroleum, chemical industry, building materials, papermaking, food, pharmacy, colleges and universities, biological research, heat treatment, water treatment, and so on.



Paperless recorder application

Specs
Model SISCO-PLR-R6000C
Shipping weight 4kg
Dimension (W*H*L) 185*154*176mm with hole size 138*138mm
Packaging included 1 * Paperless recorder
4 * Installing support & screw
1 * Screwdriver
1 * Optical disk (software)
1 * USB flash disk
1 * SD card
1 * User manual
Display 7 inches TFT true color LCD display, 800*480 resolution
Accuracy 0.2%FS±1d
Power supply * 1. AC power: AC 85~264V, 50/60Hz
2. DC power: DC 12~36V
Power dissipation ≤20W
External power supply 24VDC, ≤250mA (for external device)
Internal storage 64M bytes flash
Note: All the data is stored in flash memory to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure.
External storage USB flash disk and SD card are supported (the maximum capacity is 8 GB). FAT and FAT32 formats are supported.
Number of Channel * 1, 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48
Input signal 1. Current signal: 0-20mA, 4-20mA, 0-10mA, (4-20mA)^0.5, (0-10mA)^0.5
2. Voltage signal: 0-5V, 0-10V, 1-5V, ±5V, (0-5V)^0.5, (1-5V)^0.5, 0-20mV, 0-100mV, ±20mV, ±100mV
3. Thermocouple signal: S, B, K, T, E, J, R, N, F2, WRE3-25, WRE5-26
4. RTD signal: Pt100, Cu50, Cu53, Cu100, BA1, BA2
5. Linear resistance: 0-400Ω
Analog output * Up to 12 analog outputs:
4-20mA (load resistance≤380Ω), 0-20mA (load resistance≤380Ω), 0-10mA (load resistance≤760Ω), 1-5V (load resistance≥250KΩ), 0-5V (load resistance≥250KΩ), 0-10V (load resistance≥500KΩ)
Note: The sum of number of channels & analog outputs should be ≤48.
Alarm output * Up to 18 alarm outputs, relay parameter: NO, 1A / 250VAC
Note: The sum of analog outputs & alarm outputs should be ≤18.
Communication output * 1. RS485: 1200-57600BPS baud rate, Modbus communication protocol, 1km communication distance.
2. RS232: 1200-57600BPS baud rate, Modbus communication protocol, 15m communication distance.
3. EtherNet: 10M communication rate, only used for LAN
Interface EtherNet interface, mini-printer interface, USB interface, SD card socket
Sampling period 1s
Recording interval 1s, 2s, 4s, 6s, 15s, 30s, 60s, 120s, 240s
Storage length 24 days (1s interval) ~ 5825 days (240s interval)
Functions Different data display forms: Overview Digital Display, Bar Graph, Real-time Curve, Power View, Alarm List, History Curve, File List, Print, Backup, Configuration
Operating temperature -10~+50℃ (14~122℉)
Relative humidity 10~90%RH (No condensation)
Warranty 3 years
FAQs

Q1: What is a paperless recorder?
A1: A paperless recorder is an instrument that records the collected data/arithmetic data on a time-based axis in the instrument's internal storage system without consuming any common recording facilities, such as paper, pen, and ink. The stored data recorded inside the instrument is displayed on the LCD screen after calculation and simulation. Commonly used display LCD screens are more extensive. On the LCD screen, digital display, bar graph display, curve display, alarm list, etc. can be displayed.

Q2: What is the use of different channel numbers of paperless recorders?
A2: The number of channels of urgent interest means that the scene is necessary to record the next few data on the selection of several channels, for example, if the scene is only a point of temperature, then choose a channel, there are two points of temperature necessary to record the selection of two channels. Usually in order to facilitate future expansion, you can choose a few more channels on the basis of this backup.

Q3: What paperless recorder alarm is how to achieve?
A3: The alarm function of the paperless recorder is important to refer to the relay alarm output, if the scene is necessary to alert the alarm, it is necessary to connect an external acoustic and optical alarm, exceed the standard will trigger the alarm, receive the police light to achieve the alarm function.

Tips: How paperless chart recorder is applied in a pipeline pressure testing project?

In pipeline construction in the petrochemical field, pipeline pressure testing must be carried out before commissioning. Especially for pipeline test pressure in ship and platform construction, pressure recorders are needed to record the curves during the test pressure for inspection and archiving. Previously, disk-type pressure recorders were mainly used in the field. This kind of recorder is large, costly, has a high maintenance cost, and is easily affected by site factors, causing interference and time lag. After changing to the paperless recorder, the pressure data is accurately reflected on the computer, can be stored for a long time, and can be processed, viewed, and printed at any time. This improves the efficiency of pressure testing and promotes the overall progress of pressure testing projects. The installation of a paperless recorder can keep the pressure test personnel away from the pressure test pipeline and increase the personal safety of the pressure test personnel. In terms of economic benefits, the cost savings of paperless recorders compared to disk recorders are the cost of the recorder itself, maintenance costs, and the cost of thermal paper. Also, because the paperless chart recorder and the field pressure gauge records are synchronized, it can effectively increase the pressure test time by one hour. This saves nearly 3,000 man-hours a year.
