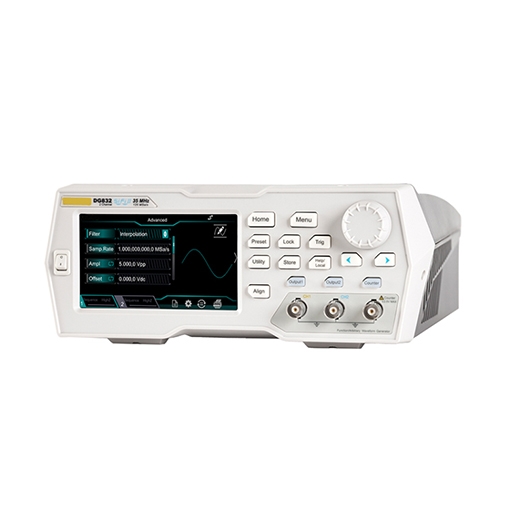

SISCO arbitrary wave generator built-in high-order harmonic generator (up to 8th order harmonics) Built-in 7-bit/s, 240MHz bandwidth full-function frequency meter Built-in up to 160 arbitrary waveforms, covering commonly used signals in various fields such as engineering applications, medical electronics, automotive electronics, mathematical processing, etc.

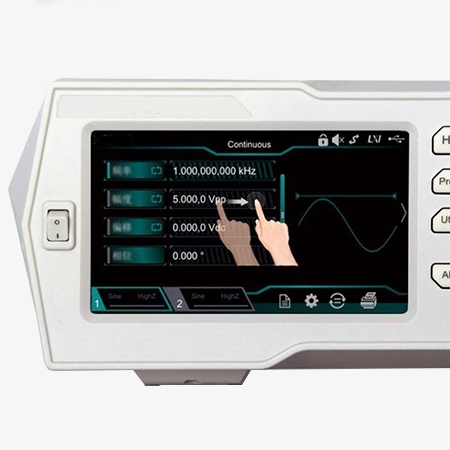

- 4.3-inch TFT color touch screen, high contrast, strong layering, bright colors, single-sided anti-glare glass, to ensure clear colors, dust and knock resistance.
- Original SiFi II (Signal Fidelity II) technology: generate arbitrary waveforms point by point, restore signals without distortion, accurately adjust the sampling rate, and jitter of all output waveforms (including square waves, pulses, etc.) as low as 200ps.
- The arbitrary wave generator supports RS232, PRBS and Dualtone output.
- ABS engineering plastic, durable and beautiful, high fireproof grade, prevents trouble before it happens.
- Standard USB Host & Device interface, supports USB-GPIB function.
- The arbitrary generator has optional equal-performance dual channels, equivalent to two independent signal sources.
- The host has the function of editing arbitrary waveform sequences, and can also generate arbitrary waveforms through the host computer software.

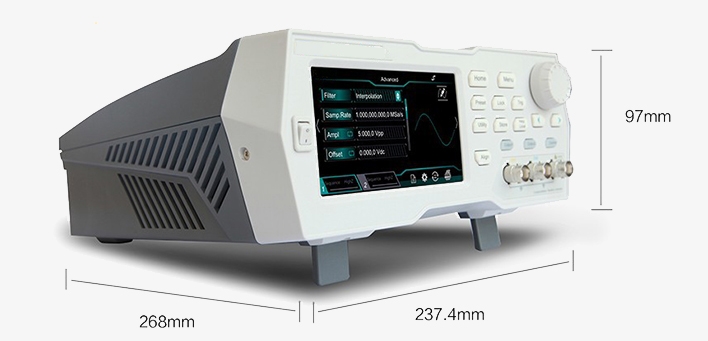

Dimension
Applications
SISCO arbitrary waveform generator (AWG) is versatile and widely used in various fields. It can simulate complex communication signals, test and develop electronic components and circuits, generate biomedical signals for medical device testing, simulate automotive sensor outputs, and test radar and sonar systems in aerospace and defense. Additionally, AWGs are used in audio equipment testing, acoustic research, educational tools, industrial automation, power quality testing, and renewable energy systems. They are essential for precise and customizable signal generation, making them invaluable for development, testing, and research in multiple domains.
Power Quality Testing
Industrial Automation
Equipment Testing
Audio Equipment Testing
Â
| Model | SISCO-AWG-DG832 |
| Basic Parameters | |
| Maximum Output Frequency | 35 MHz |
| Sampling Rate | 125 MSa/s |
| Vertical Resolution | 16 bits |
| Number of Channels | 2 |
| Arbitrary Wavelength | 2 Mpts |
| Display | 4.3-inch TFT color touch screen |
| Instrument Function | |
| Built-in Waveform | 7 basic waveforms, 160 ​​arbitrary waveforms |
| Frequency Characteristics | Sine wave: 1 μHz-35 MHz Square wave: 1 μHz-10 MHz Sawtooth wave/triangle wave: 1 μHz-1 MHz Pulse wave: 1 μHz-10 MHz |
| Resolution | 1 μHz |
| Amplitude Range (50Ω) | 1 mVpp-10 Vpp (≤10 MHz); 1 mVpp-5 Vpp (≤30 MHz); 1 mVpp-2.5 Vpp (≤60 MHz); 1 mVpp-2.5 Vpp (＞10 MHz) |
| Modulation Function | AM, FM, PM, ASK, FSK, PSK, PWM |
| Sweep Waveform | Sine wave, square wave, sawtooth wave, arbitrary wave (except DC) |
| Burst Waveform | Sine wave, square wave, sawtooth wave, pulse wave, noise, arbitrary wave (except DC), pseudo-random binary series, RS232, sequence (except DC, two-tone, harmonic) |
| Frequency meter Function | 1 μHz-240 MHz |
| Other Configurations | |
| Harmonic Generator Function | Support 8th harmonic generator |
| Standard Interface | USB host, USB device, LAN ( LXI-C) |

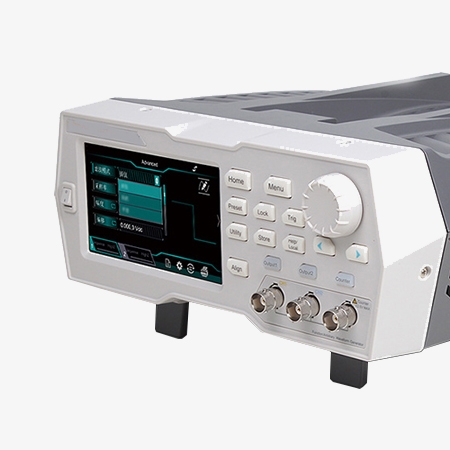

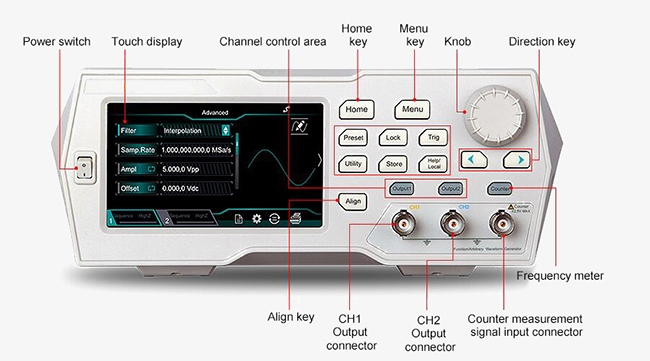

Detail
Q1: What is an Arbitrary Waveform Generator (AWG)?
A1: An Arbitrary Waveform Generator (AWG) is a device that generates user-defined, complex waveforms. It allows for the creation and output of a wide variety of signal shapes, beyond standard sine, square, and triangle waves.
Q2: How does an AWG differ from a standard function generator?
A2: Unlike standard function generators, which produce fixed waveforms like sine, square, and triangle waves, AWGs can produce any waveform defined by the user. This makes AWGs more versatile and suitable for complex testing scenarios.
Q3: What is the importance of the sampling rate in an AWG?
A3: The sampling rate in an AWG is crucial because it determines how accurately the waveform can be represented. A higher sampling rate provides better resolution and fidelity, ensuring the generated waveform closely matches the desired signal, which is essential for precise testing and measurement.
Tips: Do arbitrary waveform generator (AWGs) output signals with distortion?
Arbitrary Waveform Generators (AWGs) are designed to produce precise and high-quality signals, but, like any electronic device, they can introduce some level of distortion. The extent and nature of this distortion depend on several factors:
- Bandwidth Limitations: Signals with high frequencies might not be accurately reproduced.
- Sampling Rate: Insufficient sampling rates can cause aliasing and distortion.
- Temperature Drift: Changes in temperature can affect the performance of electronic components, potentially introducing distortion.
- Output Amplitude: High amplitudes may introduce nonlinearities.
- Calibration: Regular calibration is needed to minimize distortion.
In summary, while AWGs are designed to minimize distortion and provide high-quality signal generation, some level of distortion can be present due to device limitations, operating conditions, and external factors. Choosing a high-quality AWG and maintaining it properly can help reduce these issues.
