Digital torque meter has functions such as zero tracking, low/high alarm and peak value display, which can be used for measuring dynamic torque, speed and power at the same time.

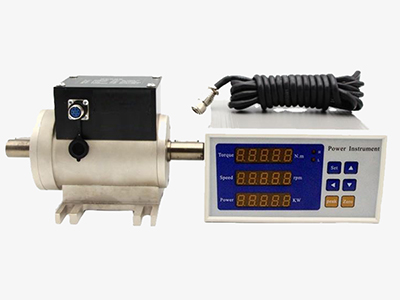

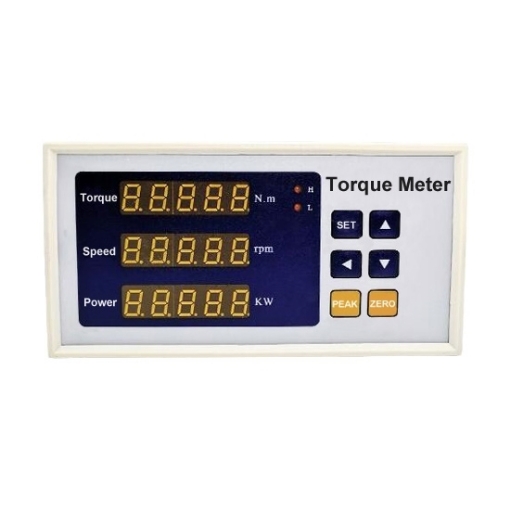

5 digit digital torque meter for torque sensor
- sisco 5 digit digital torque meter can enter the working state when it is powered on, no preheating process is required.
- High detection accuracy, good stability and strong anti-interference.
- Digital panel meter can be installed in any position and in any direction.
- The positive and negative torque can be continuously measured without repeated zero adjustment.
- Non-contact transmission of energy and signals, and the transmission of signals has nothing to do with rotation, speed and steering.
- It can transmit forbidden torque signal, rotating torque signal, dynamic torque signal and static torque signal.
Applications
Dynamic 5 digit digital torque meter is an intelligent measuring panel meter designed and manufactured to test and detect various dynamic torques. High-precision test equipment for detecting torque, speed and power of various motors and reducers. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industries.
| Basics | Model | ATO-DPM-RTS5D |
| Dimension | 160*80*170mm horizontal, hole size 152*76mm | |
| Shipping weight | 2 kg | |
| Technical parameters | Display | Measuring range of torque: -99999~99999 Nm Display value of torque: 0~99999 Nm Display value of speed: 0~99999 rpm Display value of power: 0~99999 kW |
| Measuring resolution | Meter resolution: 1/1000000, display resolution: 1/120000 | |
| Measuring speed | 25 times/second | |
| Display method | 3-channel 5 digit LED display | |
| Meter power supply | 220VAC, 50/60Hz | |
| Input signal | Various pulse signal: NPN, PNP, OC gate output signal of sensors, proximity sensors, rotary encoders | |
| Measuring frequency | Input pulse of torque: 5kHz~15kHz Input pulse of speed: 0.3Hz~20kHz |
|
| Alarm | Three alarm outputs for L/H alarm | |
| Analog signal output | 2-channel DC 4-20mA output signals (resolution: 1/4000, error: ＜0.2%FS, load capacity: ≤600Ω, optical isolation) | |
| Communication output* | RS485 or RS232 (optical isolation) | |
| External power supply * | ±15VDC or 24VDC (≥300mA, provide power supply for torque sensor) | |
| Working environment | Temperature: -10~+70℃ (14~158℉), humidity: 0~90%RH (no condensation) |

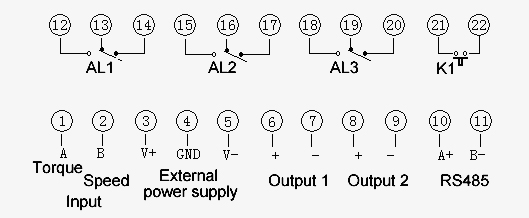

Wiring Diagram
5 Digit Digital Torque Meter Datasheet.pdfQ1: What is a digital panel meter?
A1: The digital panel meter displays the voltage, current value or other standard signal transmission display value in the electrical circuit by digital direct reading; the product has the advantages of good stability, strong anti-interference, high cost performance, and the product is small in size and can be directly replaced original pointer meter.
Q2: What are the functions of digital panel meters?
A2: Digital panel meters can be categorized by type, size, style or other criteria. Understanding the functions of the digital panel meter is an important factor in choosing it. Commonly used functions are ammeters, voltmeters, frequency meters, power meters, energy meters, counters, timers, thermometers, process meters and controllers.
Q3: What are the advantages of digital panel meters?
A3: The digital panel meter directly displays the measured value or deviation value by digital quantity, which is clear and intuitive, easy to read, and will not produce parallax. Digital panel meters generally use large and medium-scale integrated circuits, with simple circuits, good reliability and good shock resistance. Because of the common modular design method for instruments, that is, digital panel meters are mostly composed of a small number of modular circuits with separated functions, so they are conducive to manufacturing, debugging and maintenance.
Tips: Why choose digital torque meter from sisco.com?
- SISCO digital torque meter can detect the required output torque and power of electric motors, internal combustion engines and other rotating power equipment.
- 5 digit torque panel meter can detect the load torque and input power of motors, air pumps, mixers, reducers, transmissions, hoists, propellers, drilling machinery and other equipment.
- It can detect various machining centers and automatically realize the torque in the working process of the machine tool.
- Ability to detect torque and efficiency provided by various rotating power plant systems.
- Torque and rotational speed are detected, and shaft power is detected at the same time.
- Can be used for the manufacture of viscometers, electric, pneumatic and hydraulic torque wrenches.
