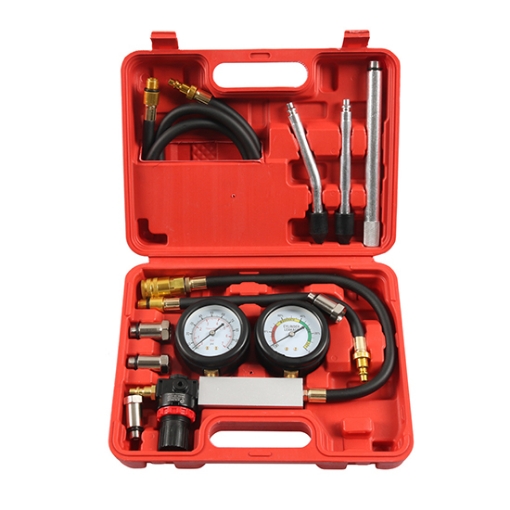

Cylinder Leak Down Tester Kit

Q1: What is a cylinder leak down tester used for?
A1: A cylinder leak down tester is used to measure the condition of an engine's internal components by determining how much air is leaking from a cylinder. It helps diagnose issues such as worn piston rings, damaged valves, blown head gaskets, or cracked cylinder heads. The tester introduces compressed air into the cylinder and measures the percentage of air that escapes. By listening to where the air is leaking - such as from the intake, exhaust, or oil filler cap—mechanics can pinpoint the exact cause of engine problems and assess the overall health of the engine.

Q2: What can a cylinder leak down tester diagnose?
A2: A Cylinder Leak Down Test can diagnose a variety of engine issues by measuring how much air escapes from each cylinder. It helps identify:

• Worn Piston Rings: If air escapes through the oil filler cap or dipstick tube, it indicates worn or damaged piston rings, allowing pressure to bypass and enter the crankcase.
• Leaking Valves: If air escapes through the intake or exhaust manifold, it suggests damaged or improperly sealing valves, which can result in poor engine performance.
• Blown Head Gasket: Air escaping from the radiator or coolant system indicates a blown head gasket, which can cause coolant to mix with engine oil and lead to overheating.
• Cracked Cylinder Head: If air leaks from areas other than the normal exhaust or intake paths, it may signal a crack in the cylinder head, which could cause significant engine damage.

Q3: Do I need to remove the cylinder head to perform the test?
A3: No, you do not need to remove the cylinder head to perform a Cylinder Leak Down Test. The test is non-invasive and can be done with the engine assembled. You only need to remove the spark plug from the cylinder you're testing, and then rotate the engine to Top Dead Center (TDC) on the compression stroke. The leak-down tester is connected to the spark plug hole, and air is introduced into the cylinder to measure the leakage. This allows you to assess the condition of the engine without disassembling it.

Tips: What does it mean if air is escaping from the oil filler cap or dipstick tube?

If air is escaping from the oil filler cap or dipstick tube during a cylinder leak down test, it typically indicates that the piston rings are worn or damaged. The piston rings are responsible for sealing the combustion chamber, preventing pressure from escaping into the crankcase. When the rings wear out, air can bypass them and enter the crankcase, leading to increased blow-by.

This issue suggests internal engine wear, and the engine may experience reduced power, increased oil consumption, and poor performance. If you hear air escaping from these areas, it's a sign that the piston rings need attention, and the engine may require an overhaul or replacement of the rings.
