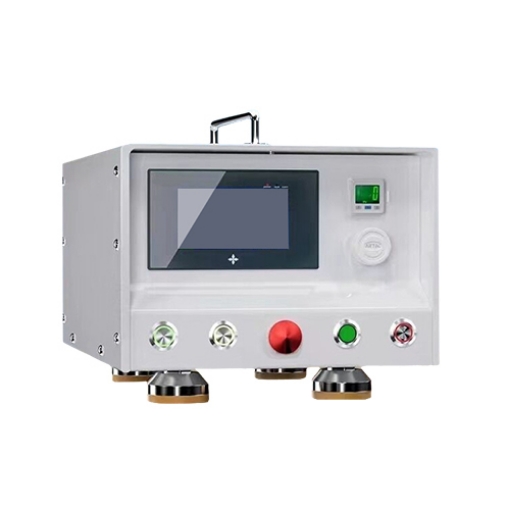

Equipped with 3.5-inch screen, air leakage testing equipment consumes power 35W-50W. Single channel airtightness detector supports AC 220V ±10%, 50/60Hz, accuracy up to 0.25%. The air leak tester’s leakage unit is kpa, and other units are optional.

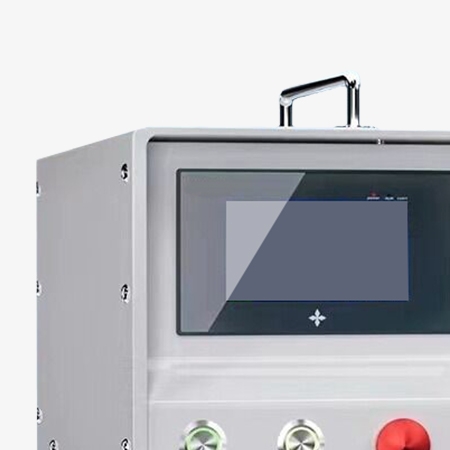

Clear touch screen, convenient to operate data
- The touch screen of the air leak tester can manually set the test pressure, inflation time, pressure stabilization time, detection time, etc., and start the entire process of inflation, pressure stabilization, and detection with one button.
- The touch screen of the air leakage testing equipment uses an industrial-grade glass panel, with a simple and intuitive interface, supporting the display of pressure change curves and leakage charts, which is convenient for quick judgment of air leakage test results.

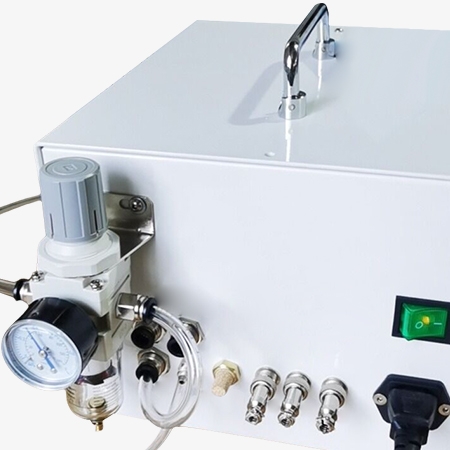

The multi-function button of the leak detector, complete test functions
- The multi-function button of the air leak tester is designed to improve the convenience of operation and detection efficiency. Its function integration and hardware configuration need to adapt to different detection scenarios.
- Different buttons are used to adjust the parameters of the air pressure leak tester, such as test pressure, pressure holding time, leakage threshold, etc. The air leakage testing equipment has a data storage function, which can save the current test results to the built-in memory with one click.

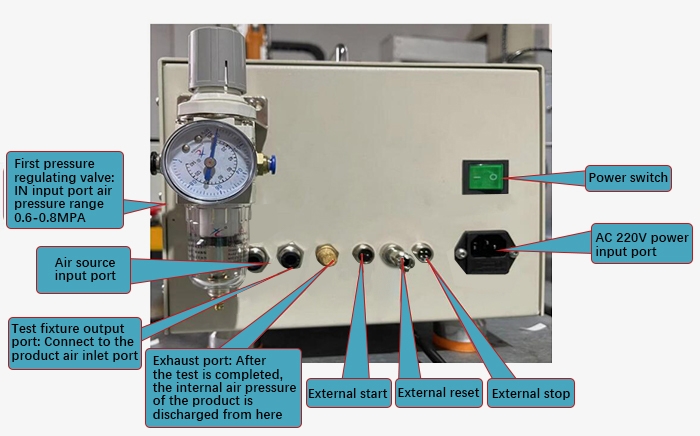

Digital Air Leak Tester Host Structure
Application
Air pressure leak testers can be used to assess the sealing performance of electronic components, including automobile engines, transmissions, braking systems, doors, windows, roofs, and other elements. An air leak tester can also be used to detect leaks in batteries, valves, and smart electronic devices, among other applications.

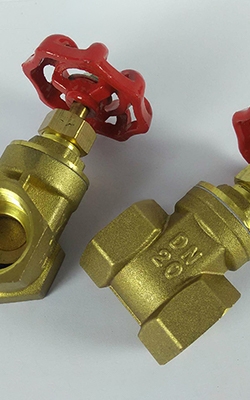

Valves
Vials
Smart Devices
Batteries
Â
| Model | SISCO-VLD-YD-T01 | ||
| Detection Pressure Range | 1kpa～800kpa (optional) | ||
| Pressure Sensor Range | 1kpa～800kpa | ||
| Resolution 1~200pa | |||
| Detection Mode | Positive pressure test | ||
| Accuracy | 0.25% | ||
| Number of Test Channels | Single channel | ||
| 10 Interface | Input signal 2 / output signal 5 | ||
| Show | 3.5 inch touch screen display | ||
| Unit | kpa (other units available) | ||
| Curve | Graph from inflation to exhaust | ||
| Time | Tour name | Minimum value (S) | Maximum value (H) |
| Filling/inhaling | 0.1 | 9999.9 | |
| Holding pressure | 0.1 | 9999.9 | |
| Size | 360*230*260 (mm) Length*Width*Height | ||
| Host Weight | About 15kg, the fixture can be customized | ||
| Power Supply | AC 220V ±10%, 50/60Hz | ||
| Power Consumption | 35W ~ 50W | ||
| Test Gas Source | Use a clean air source (such as an air compressor) with large flow and high pressure, and connect it to a stable air pressure source adjusted by a pressure regulating valve. | ||
| Ambient Temperature | The operating temperature is 5℃~40℃, the storage temperature is -20℃~50℃, below 80% RH, but without condensation. | ||
Q1: What is an air leak detector?
A1: An air leak detector, also known as a sealing detector or a leak detector, is a key device used in the field of industrial manufacturing to detect the sealing performance of products. Its core function is to accurately measure the amount of tiny leaks to ensure that the sealing performance of the product meets the design requirements.
Q2: How does an air pressure leak tester work?
A1: The object to be tested is placed in a closed test chamber, and a certain pressure of compressed gas is filled into the object to be tested so that the pressure in the chamber reaches the preset test pressure. Subsequently, the leak detector monitors the changes in the pressure in the chamber in real time, and then monitors the changes in pressure to evaluate its sealing performance.
Q2: What is an air leak tester used for?
A1: An airtight leak detector is a high-precision testing device that is widely used in many industries such as medicine, food, cosmetics, and medical devices.
Tips: What are the advantages of positive pressure air leak tester?
Positive pressure air leak testers can accurately measure the degree of gas leakage, helping users to accurately determine the location and severity of the leak point. Positive pressure detection can complete the detection in a short time and improve production efficiency. It is suitable for large-scale production environments, saving users' time and energy. Positive pressure airtight leak detectors can be used to detect different types of gas leaks and are suitable for various application scenarios, especially for scenarios that need to withstand positive pressure, such as sealing verification in industries, automotive parts, and consumer electronics.
