This portable nuclear radiation detector emits a sound and flashing alarm when the radiation dose exceeds the threshold, providing a warning in any mode, including sleep mode. This radiation detector can be widely used in various power radiation environments, such as home decoration, nuclear labs, nuclear power plants, building materials, petrochemicals, and geological surveys.

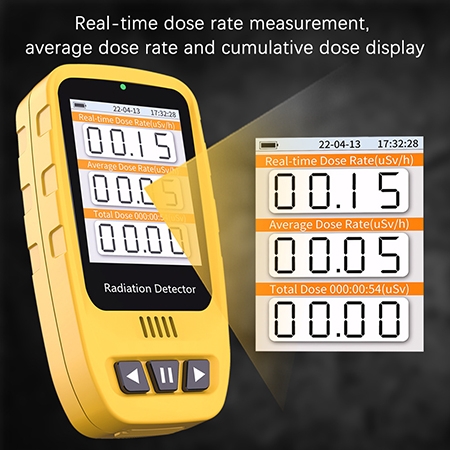

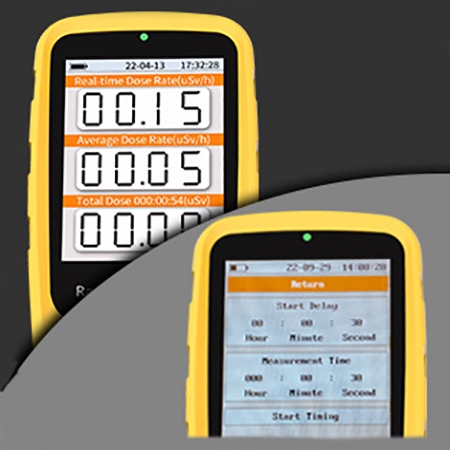

The nuclear radiation detector can display real-time dose rate, cumulative dose and average dose rate
- The radiation detector is equipped with a high-contrast OLED display, providing clear and crisp visual information, even in low-light environments.
- The screen shows real-time readings of the current radiation dose rate, allowing users to monitor exposure levels instantly.
- The pocket radiation detector tracks and displays the total accumulated dose over a specific period, helping users assess long-term radiation exposure.
- The radiation meter also calculates and displays the average dose rate, offering a comprehensive overview of radiation exposure trends.
The radiation meter built-in GM technology tube
- The digital radiation detector utilizes an integrated Geiger-Müller (GM) tube, ensuring highly sensitive and accurate detection of ionizing radiation, including alpha, beta, and gamma particles.
- GM tube technology is a well-established method for radiation detection, offering precise readings and robust performance across a range of environments.
- The built-in GM tube provides long-lasting reliability, minimizing the need for frequent maintenance or replacement while ensuring consistent detection accuracy.
Applications
SISCO radiation detector is a device used to detect and measure ionizing radiation, such as alpha, beta, gamma rays, and neutrons. Radiation detectors are used in medical imaging, industrial safety, environmental monitoring, and security to measure ionizing radiation. They help ensure safe radiation levels, detect contamination, and prevent the unauthorized transport of radioactive materials. They’re also crucial in scientific research for studying radiation effects.
Environmental
Security
Industrial
Medical
| Model | SISCO-RD-HFS-20 |
| Sensor | GM counter tube |
| Measurement Range | 0.08μSv-50mSv |
| Measurement Accuracy | -17%-25%, based on 137 CSγ |
| Operating Temperature | -20-50℃ |
| Operating Humidity | ＜95% RH without condensation |
| Working Voltage | 3.7-5V |
| Alarm Response Time | td: <10s |
| Charging Port | Type-C interface |
| Detection Ray | X, β, γ ray |

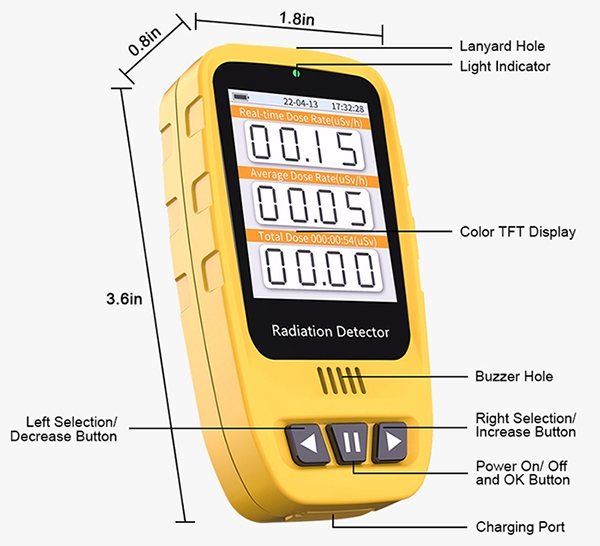

| Dimensions | 3.6*1.8*0.8 inch |
| Weight | 60g |
Detail
Q1: What is a radiation detector?
A1: A radiation detector is a device designed to detect and measure ionizing radiation, such as alpha, beta, gamma rays, and neutrons. These detectors work by sensing the interaction of radiation with matter, often producing an electrical signal that correlates with the intensity or type of radiation present. Radiation detectors come in various types, including Geiger-Müller counters, scintillation detectors, and solid-state detectors, each tailored to detect different forms of radiation or provide varying levels of sensitivity.
Q2: Do radiation detectors need calibration?
A2: Yes, radiation detectors need regular calibration to ensure accurate and reliable measurements. Calibration involves adjusting the detector to account for any changes in its performance over time, which can be caused by factors such as aging components, environmental conditions, or variations in detector sensitivity. Regular calibration helps maintain the accuracy of the readings and ensures that the detector provides precise data for assessing radiation levels. Calibration is typically performed using known radiation sources and may be required by regulatory standards to ensure compliance and safety.
Q3: Can radiation detectors detect non-ionizing radiation?
A3: Most radiation detectors are designed to detect ionizing radiation, such as alpha, beta, gamma rays, and neutrons. Non-ionizing radiation, which includes radio waves, microwaves, infrared, and visible light, requires different types of sensors. For example:
- Radio frequency (RF) meters and electromagnetic field (EMF) meters are used to measure non-ionizing radiation like radio waves and microwaves.
- Photodetectors (such as photodiodes) measure visible light, while infrared sensors detect infrared radiation.
Tips: Can ionizing radiation detectors be used for personal safety?
Yes, ionizing radiation detectors are indeed valuable for personal safety. They are essential tools for monitoring radiation exposure in environments where ionizing radiation is present, such as in medical facilities, research laboratories, and nuclear power plants. Personal radiation detectors, like dosimeters, continuously measure and record an individual's exposure to ensure it stays within safe limits. These devices often feature real-time alarms that alert users to sudden spikes in radiation, allowing them to take immediate action to minimize exposure. By providing accurate and timely information, ionizing radiation detectors help individuals adhere to safety regulations and standards, protecting their health and reducing the risk of radiation-related illnesses. Additionally, in emergency situations involving radiation leaks or accidents, these detectors enable quick assessment of radiation levels, guiding safe evacuation and response measures.
