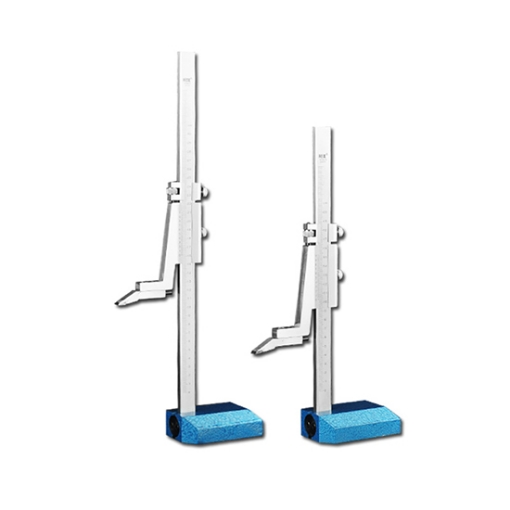

Q1: What is a vernier height gauge?
A1: The vernier height gauge is used to measure vertical dimension from the reference ground. Vernier Height Gauge consists of a graduated scale or bar held in a vertical position by a finely ground fixed base.
Q2: What is the advantage of the vernier height gauge?
A2: Relatively simple to operate, their main advantage over other height gauges is the range of sizes they come in, meaning they can be used to measure a wide range of workpieces accurately. Typically, two scales are shown on the beam of the height gauge.
Q3: What is the vernier height gauge used for?
A3: Vernier height gauges are used in metrology and metalworking to detect or measure vertical distances. The height gauges are often used to measure a granite surface or scribe part features from a datum plane. To detect the measured feature, a scriber, test indication, touch probe, or CMM-style probe is often utilized.
Tips: What is a vernier height gauge?
The vernier height gauge is a special type of vernier instrument that is used to measure the heights of different engineering objects up to high precision and accuracy during many industrial jobs where the measuring process is required.
