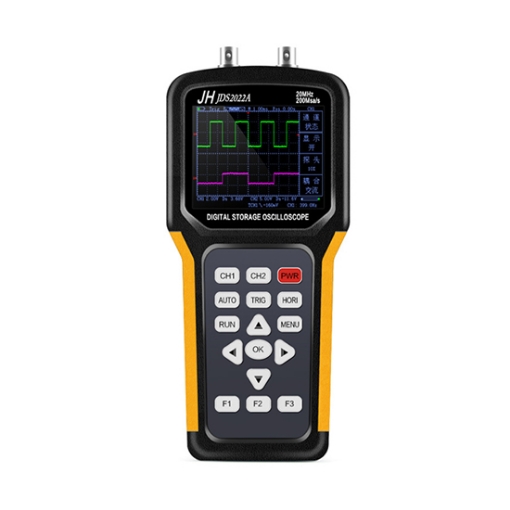

SISCO digital oscilloscope with adjustable key backlight and high-resolution LCD screen design, it is easier for users to operate at night and during the day. This dual channel handheld oscilloscope built-in battery, coarse and fine adjustment dual mode, adjustment number can be set. The digital storage oscilloscope is small in size, has many functions, easy to operate and easy to carry.
Data Can be Stored by Connecting to a Computer
- PC Connectivity: The handheld automotive oscilloscope can easily connect to a computer for advanced analysis, storage, and reporting of automotive signals.
- Data Storage: Store captured waveforms directly on the oscilloscope or transfer to a PC for later review.
- Real-Time Analysis: Perform detailed diagnostics and waveform analysis on the computer with specialized software.
- Portable & Compact: This handheld oscilloscope is ideal for on-the-go diagnostics with the added benefit of digital storage.
Large 3.5-inch sScreen with Adjustable Backlight Brightness
- 3.5-inch Large Display: Provides clear and detailed waveform viewing, perfect for quick diagnostics.
- Adjustable Backlight: Customizable brightness for optimal visibility in different lighting conditions, ensuring accurate readings day or night.
- Data Storage: Store waveforms directly on the oscilloscope or transfer to your PC for later review.
- Portable and Compact: Ideal for on-the-go diagnostics in tight spaces, with all the features of a full-size oscilloscope.
Applications
The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.
Electrical
Automotive Test
Medical Equipment Testing
Signal Analysis
| Model | SISCO-HO-JDS2022A |
| Input Coupling | AC、DC |
| Bandwidth | 20 MHz |
| Sample Rate | 200 MSa/s |
| Channel | 2 channel |
| Input Impedance | 1MΩ 25pF |
| The Maximum Input Voltage | 40V (probe X1); 400V (probe X10) can be measured 220V voltage; (probe X100) 2000V voltage can be measured |
| Probe Attenuation | 1X, 10X |
| Set the Probe Attenuation Factor | 1X, 10X, 100X |
| Sampling Method | Real-time sampling, random sampling |
| Memory Depth | 4K (per channel for each 2K) |
| Acquisition Mode | Sample, Peak Detect |
| Vertical Sensitivity | 10mV-5V (Probe 1X) 100mV-50V (probe 10X) (1, 2.5, 5 step) |
| Vertical accuracy | ±3% |
| Vertical resolution | 8bit |
| Horizontal Scan Range | 10nS/div-5S/div |
| Mode | Auto, Normal and Single |
| Type | Rising edge trigger, falling edge trigger |
| Automatic Detection | Support (50Hz-40MHz) |
| Math | CH1+CH2, CH1-CH2, CH2-CH1 |
| Cursor Measurements | Support time and voltage cursors |
| Measurements | Manual |
| Measure | Peak and frequency |
| Screen | 3.2-inch, 16-bit true color, TFT, 320*240 |
| Battery | 3000+mA lithium battery (single cell about four hours of continuous work) |
| Size | 202*100*35mm |
Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.
Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.
Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.
Tips: What kind of problems can an automotive oscilloscope help diagnose?
An automotive oscilloscope is mainly used to visualize and analyze electrical signals in a vehicle. It can help diagnose:
- Ignition performance – spark quality, coil operation, and timing accuracy.
- Sensor signals – verifying if crankshaft, camshaft, MAP, or oxygen sensors output the correct waveform.
- Actuator control – checking fuel injectors, solenoids, and motor drivers.
- Charging and starting systems – detecting alternator ripple, battery health, and starter draw issues.
- Communication networks – analyzing CAN/LIN signals for noise, dropouts, or corruption.
By showing the actual waveform, it reveals problems that a scan tool or code reader may miss, especially intermittent or borderline faults.
