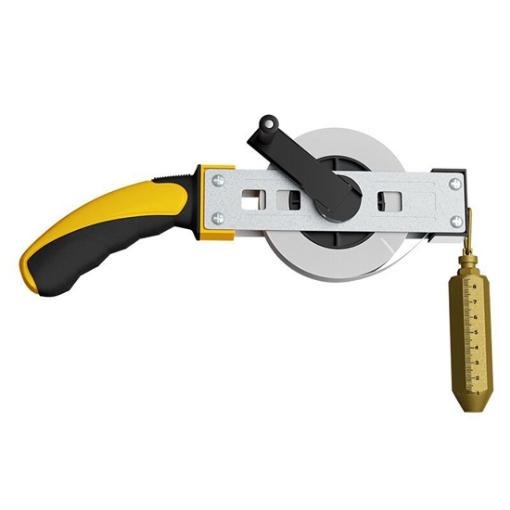

    20m Oil Gauging Tape

    Tank gauging tape is a portable measuring tool. Quickly retract the tape measure, strong and durable, easy to operate and use. Nickel-plated carbon steel tape of oil tank dip gauge tape, clear and more resistant, anti-rust, and not easy to break.
    SKU: SISCO-OGT-20
    $96.72
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview

    Oil tank measuring tapes may be made from a variety of materials, including stainless steel or other metals, and may be coated with a protective material to prevent rust and corrosion.

    Oil gauging tape detail one

    Oil gauging tape adopts with solid brass anchor

    • The anchor can be rotated arbitrarily to prevent the tape from spiraling.
    • Solid explosion-proof, making the oil gauging safe to use.
    Oil gauging tape detail two

    Aluminum alloy rust-proof ruler frame

    • Strong and durable, making the service life of the tape longer.
    • Nickel plated paint and with clear scale.

    Application

    Oil gauging tapes are commonly used in the oil and gas industry to measure the amount of crude oil or other petroleum products in storage tanks. Accurate measurements are essential for monitoring inventory levels, calculating production volumes, and ensuring compliance with regulations.

    Oil gauging tape application

    Specs
    • Model: SISCO-OGT-20
    • Length: 20m
    • Tape Material: stainless steel
    • Anchor Head Material: Brass
    • Anchor Head Diameter: 20mm
    • Dipstick Length: 290mm
    • Weight: 900g
    FAQs

    Q1: What is oil gauging tape?
    A1: An oil gauging tape is a measuring tool that is used to determine the depth of oil in storage tanks, drums, or other containers. It is typically made of a long, flexible steel ribbon or tape, marked with precise measurements at regular intervals.

    Q2: What are the components of oil gauging tape?
    A2: The oil gauging tape consists of handle, tape frame, crank, measuring tape, brass drawing weight, oil wiper, bracket and connector.

    Q3: Can a oil gauging tape be wrong?
    A3: Over time, the numbers on a tape will fade, and the tape itself can bend, rust, get tangled, or even break. Other abuse, such as being dropped on the shop floor or being snapped into the housing at full speed one time too many can cause measurement inaccuracies.

    Tips: Oil gauging tape troubleshooting

    • The tape does not rewind smoothly. If the tape does not rewind smoothly or gets stuck, it may be due to dirt or debris on the tape or the reel. Clean the tape and reel thoroughly with a clean, dry cloth or a mild solvent to remove any dirt or debris.
    • The tape is inaccurate. If the oil gauging tape is not providing accurate measurements, it may be due to the tape being stretched, bent, or damaged. Make sure the tape is not kinked or bent during use, as this can affect the accuracy of the measurements.
    • The oil gauging tape is difficult to read. If the markings on the tape are difficult to read, it may be due to wear and tear or fading of the markings. Ensure that the tape is clean and dry, and use proper lighting to read the markings. If the markings are faded or illegible, the tape may need to be replaced.
    Warranty

    Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than sisco approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by sisco.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
    5.0 1
    Write your own review Close
    *
    *
    Donald789 | 10/9/2023 7:52 PM
    Performs well in extreme environments
    Our company has been using this 20-meter fuel gauge tape and it performs well in extreme environments. The design of this measuring tape is very smart and easy to operate. It greatly reduces human errors and ensures accuracy and safety in oil storage.
