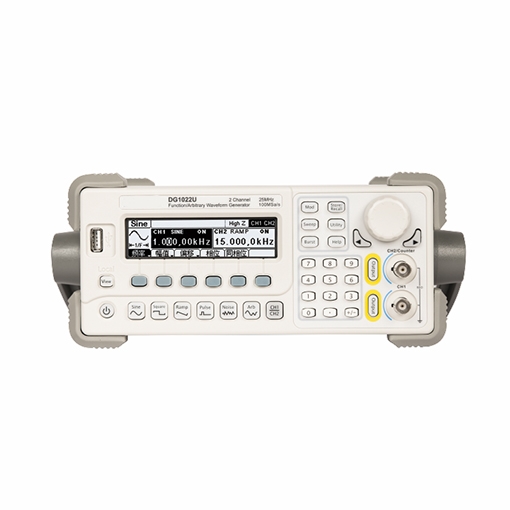

    25 MHz Arbitrary Waveform Generator, 100 MSa/s

    Cheap 25 MHz arbitrary waveform generator is a dual-channel arbitrary generator with a 100 MSa/s sampling rate, 14 bits vertical resolution and 4k arbitrary wavelength. The AWG generator adopts direct digital synthesis (DDS) technology which can generate accurate, stable, and low-distortion output signals.
    SKU: SISCO-AWG-DG1022U
    $1,005.38
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO high-speed arbitrary waveform generator for sale online. The arbitrary signal generator has dual-channel output, can output 5 standard waveforms, and has 48 built-in arbitrary waveforms, meeting the requirements of most application scenarios in basic testing.

    25 MHz arbitrary waveform generator detail
    • DDS direct digital synthesis technology obtains accurate, stable and low-distortion output signals.
    • Dual-channel output enables channel coupling and channel replication.
    • Outputs 5 basic waveforms and has 48 built-in arbitrary waveforms.
      Supports plug-and-play USB storage devices, and can store and read waveform configuration parameters and user-defined arbitrary waveforms through USB storage devices, and upgrade software.
    • The graphical interface can visually verify signal settings.

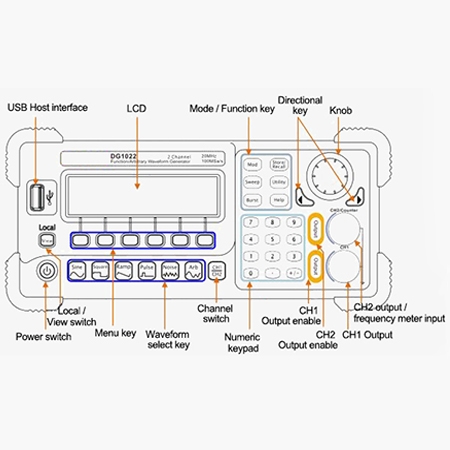

    25 MHz arbitrary waveform generator detail
    • The arbitrary waveform generator provides 9 standard waveforms: SINE, SQUARE, RAMP, PULSE, EXPRISE, EXPFALL, SINC, NOISE and DC, which can meet basic needs.

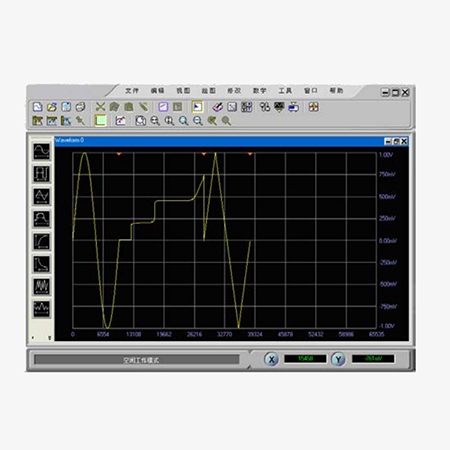

    • It also provides users with manual drawing, line drawing between points, and arbitrary point editing, making it easy to create complex waveforms; the management method of the multi-document interface allows users to edit multiple waveform files at the same time.
    • The AWG generator can store the created arbitrary wave as TXT (text file), CSV (CSV file), or RDF (arbitrary waveform file).
    • Read the WFM waveform file stored in the DS series digital oscilloscope. Print the waveform.
    • Download the created arbitrary wave to the internal memory of the waveform generator.

    Dimension

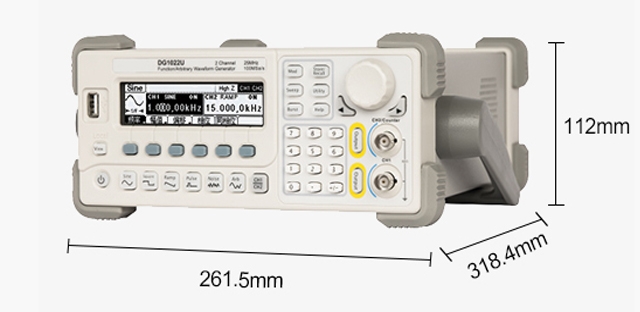

    25 MHz arbitrary waveform generator size

    Applications

    SISCO arbitrary waveform generator (AWG) is versatile and widely used in various fields. It can simulate complex communication signals, test and develop electronic components and circuits, generate biomedical signals for medical device testing, simulate automotive sensor outputs, and test radar and sonar systems in aerospace and defense. Additionally, AWGs are used in audio equipment testing, acoustic research, educational tools, industrial automation, power quality testing, and renewable energy systems. They are essential for precise and customizable signal generation, making them invaluable for development, testing, and research in multiple domains.

    Arbitrary waveform generator for power quality testing

    Power Quality Testing

    Arbitrary waveform generator for industrial automation

    Industrial Automation

    Arbitrary waveform generator for equipment testing

    Equipment Testing

    Arbitrary waveform generator for audio equipment testing

    Audio Equipment Testing

    Specs



    Model SISCO-AWG-DG1022U
    Basic Parameters
    Maximum Output Frequency 25 MHz
    Sampling Rate 100 MSa/s
    Vertical Resolution 14 bits
    Number of Channels 2
    Arbitrary Wavelength 4k
    Display Clear graphical interface
    Instrument Function
    Built-in Waveform 5 basic waveforms, 48 ​​arbitrary waveforms
    Frequency Characteristics Sine wave: 1 μHz-25 MHz
    Square wave: 1 μHz-5 MHz
    Sawtooth wave/triangle wave: 1 μHz-500 kHz
    Pulse wave: 500 μHz-5 MHz
    Resolution 1 μHz
    Amplitude Range (50Ω) 2 mVpp-10 Vpp (≤20 MHz); 2 mVpp-10 Vpp (>20 MHz)
    Modulation Function AM, FM, PM, FSK
    Sweep Waveform Sine wave, square wave, sawtooth wave, arbitrary wave (except DC)
    Burst Waveform Sine wave, square wave, sawtooth wave, pulse wave, noise, arbitrary wave (except DC)
    Frequency meter Function 100 MHz-200 MHz
    Other Configurations
    Harmonic Generator Function Not supported
    Standard Interface USB host, USB device



    Packing List

    • 1*Arbitrary Waveform Generator
    • 1*Power cord
    • 1*BNC cable
    • 1*USB cable
    • 1*Certificate of conformity

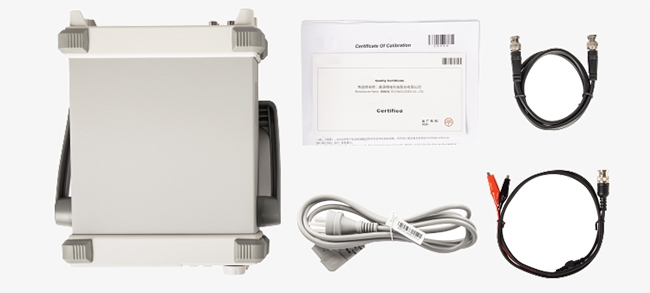

    25 MHz arbitrary waveform generator accessories

    FAQs

    Q1: What is an Arbitrary Waveform Generator (AWG)?
    A1: An Arbitrary Waveform Generator (AWG) is a device that generates user-defined, complex waveforms. It allows for the creation and output of a wide variety of signal shapes, beyond standard sine, square, and triangle waves.

    Q2: How does an AWG differ from a standard function generator?
    A2: Unlike standard function generators, which produce fixed waveforms like sine, square, and triangle waves, AWGs can produce any waveform defined by the user. This makes AWGs more versatile and suitable for complex testing scenarios.

    Q3: What is the importance of the sampling rate in an AWG?
    A3: The sampling rate in an AWG is crucial because it determines how accurately the waveform can be represented. A higher sampling rate provides better resolution and fidelity, ensuring the generated waveform closely matches the desired signal, which is essential for precise testing and measurement.

    Tips: How to create a custom waveform on an AWG?

    To create a custom waveform on an AWG, follow these steps:

    • Waveform Design: Use waveform creation software provided by the AWG manufacturer or third-party software. These tools often allow you to draw the waveform manually, use mathematical functions to define the waveform, or import waveform data from other sources (e.g., CSV files or measured data).
    • Editing and Fine-Tuning: Adjust the waveform parameters as needed, such as amplitude, frequency, and phase. Many software tools offer features like zoom, grid alignment, and mathematical operations to fine-tune the waveform shape.
    • Uploading to the AWG: Save the designed waveform file in a format compatible with the AWG (e.g., .wfm, .csv). Connect the AWG to your computer using a suitable interface, such as USB, Ethernet, or GPIB. Use the AWG's control software or front panel interface to upload the saved waveform file to the device's memory.
    • Configuring the AWG: Select the uploaded waveform from the AWG's memory. Configure additional settings such as output voltage range, offset, and output impedance. Set the desired output parameters, including the frequency and amplitude of the waveform generation.
    • Generating the Waveform: Activate the waveform output on the AWG. The device will now generate the custom waveform based on your uploaded design.
    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
