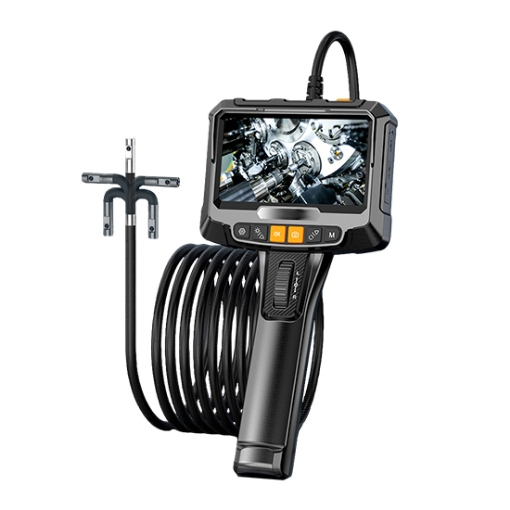

This smart 360° articulating borescope features 2MP HD imaging, providing full-angle inspection without blind spots. Its unique combination of dual-direction rotation and a side-view mirror greatly reduces visual dead zones, enabling a more comprehensive observation experience. The snake tube of the articulating inspection camera is constructed with high-density tungsten braiding, delivering excellent resistance to abrasion and corrosion, ensuring long-term reliability even in harsh industrial or field environments.
Enhanced Visual Display & Safety Control

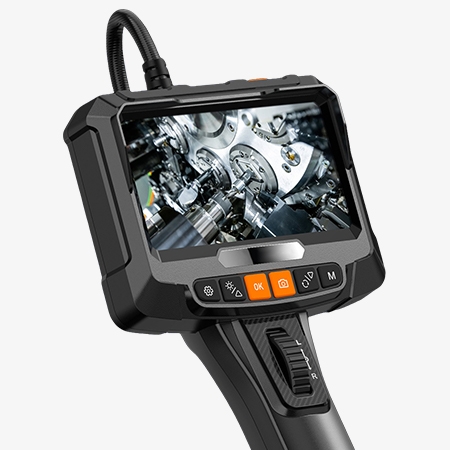

- This handheld articulating inspection camera features a 5-inch IPS HD display with a 178° ultra-wide viewing angle, offering a broader and clearer field of view. Its optimized imaging technology supports 1080P HD output, allowing users to capture and inspect fine structural details with exceptional accuracy.
- Additionally, the articulating borescope incorporates a nano-level temperature control sensor that provides intelligent over-temperature protection. With more than 3,000 temperature detections per minute, it continuously monitors and regulates temperature conditions to ensure safe and stable operation.
Precision Steering & Durable Tungsten Cable

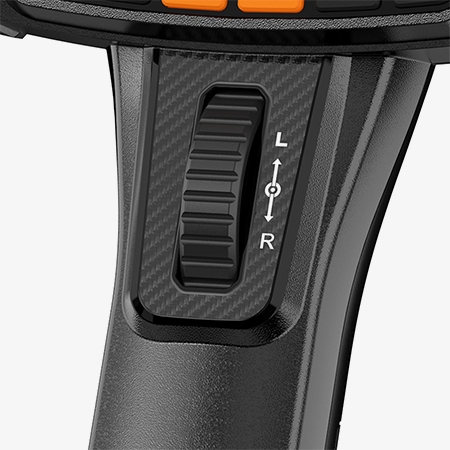

- The control wheel of the articulating endoscope is wrapped in anti-slip silicone, increasing friction for better handling. The damping-assisted positioning design enables smooth, precise adjustment of the inspection camera’s orientation, allowing users to fine-tune even subtle directional angles during inspection.
- The 360° articulating borescope's cable is built with high-density tungsten wire and a 360° protective braided structure, providing outstanding durability with strong resistance to wear and corrosion. This ensures long-lasting reliability and stable performance during extensive or repeated inspection tasks.
360° Full-Angle Observation & Reliable Protection

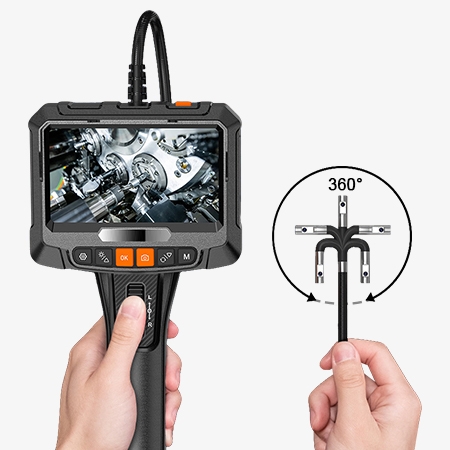

- This 360° articulating inspection camera supports full-range bidirectional rotation, enabling complete, blind-spot-free observation of complex environments. When combined with the side-view mirror accessory, the device further expands its visible range, minimizing visual blind spots and improving overall inspection efficiency.
- The articulating borescope camera head is rated IP67 waterproof, while the cable features heat-insulating and chemical-resistant properties to protect internal wiring. Whether working in damp pipelines or underwater environments, the borescope maintains stable, reliable performance.
Applications
The industrial endoscope is widely used in automotive inspection, allowing users to check engine cylinders, valves, and oil leaks without disassembly and quickly pinpoint faults. During carbon buildup inspection, it observes valves and pistons through the spark plug hole, preventing unnecessary engine damage. In home appliance repair, the inspection camera helps examine circuit boards and compressors for faults. For pipeline or drain inspection, the pipe endoscope locates blockages or foreign objects, assesses severity, and guides cleaning — improving efficiency and accuracy.
Carbon Check
Appliance Repair
Clog Detection
Auto Repair
| Model | SISCO-IC-S10 |
| Display | 5-inch IPS Screen |
| Screen Resolution | 854 × 452 |
| Sensor | CMOS |
| Cable Type | Hard (Semi-rigid) cable |
| Lens Options | Single Lens / Dual Lens |
| Probe Diameter | 8.0mm / 6.2mm |
| Cable Length | 1M / 2M |
| Image Sensor Resolution | 1MP (100W) |
| Image Resolution | 1920 × 1080 (JPG) |
| Video Resolution | 1280 × 720 (AVI) |
| Focal Range | 2~10 cm |
| Frame Rate | 15~25 FPS |
| Field of View | 70° |
| Battery Capacity | 18650, 2000 mAh / approx. 3 hours |
| Charging | 5V / 1A or 5V / 2A (fast charging not supported) |
| Operating Temperature | 0~45°C |
| Camera Temperature Tolerance | 0~80°C |
| Light Source | 6 × LED (5500–6000K) |
| Waterproof Rating | IP67 (camera only) |
| Interfaces | Type-C, TF Card Slot (supports up to 64GB, card not included) |
| Weight | Approx. 1.5kg |
Q1: Is the steering operation of this 360° articulating borescope flexible? Can it adjust angles easily in confined spaces?
A1: Yes. The SISCO 360° articulating borescope camera features a highly responsive and precisely engineered articulation structure. It allows smooth, accurate directional control even in tight or narrow spaces. Whether you're inspecting complex machinery, the corner of an engine compartment, or bends inside a pipe, the probe can be rotated freely to capture details from any angle without being affected by limited operating space.
Q2: How is the display quality of the 5-inch screen? Does it meet professional inspection requirements?
A2: The 5-inch IPS display of our articulating endoscope delivers excellent clarity and color accuracy. The high-resolution screen presents sharp, detailed images suitable for professional-grade inspection tasks. Whether you are checking fine metal cracks, PCB solder joints, or deposits/damage on pipe walls, the display ensures clear visualization of every detail—providing a reliable reference for accurate diagnostics.
Q3: How long is the battery life? How many hours can it operate on a full charge?
A3: The articulating inspection camera is equipped with a high-performance 18650 battery offering strong endurance. Under normal operation, it can run continuously for several hours on a full charge (exact runtime varies based on usage). Tasks like simple viewing consume less power, while high-power features such as video recording shorten battery life. Please use 5V 1A or 5V 2A chargers. The device does not support fast charging.
Tips: How to capture clearer images in complex environments?
To achieve sharper imaging when using the articulating borescope in challenging environments, consider the following:
- Adjust the LED brightness appropriately. Increase brightness in darker environments and reduce it in reflective or bright conditions to avoid glare.
- Keep the device stable. Hold the unit firmly with both hands or use auxiliary stabilizing tools to minimize shaking, which can cause image blur.
- Clean reflective or dirty surfaces beforehand. Removing dust, oil, or debris reduces glare and improves clarity, resulting in more accurate inspection results.
