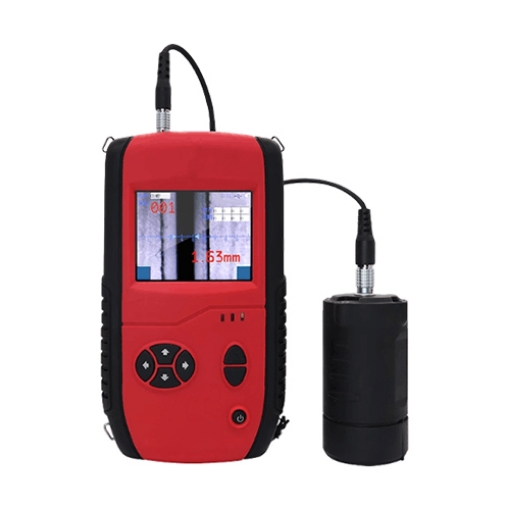

The digital concrete crack width meter provides automated detection of crack location and width/depth values. Digital concrete crack width tester with clear touchscreen allows setting the total measurement duration and time interval, and automatically enters sleep mode in power-saving mode.

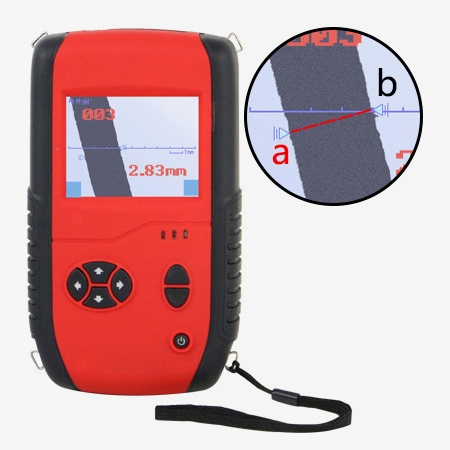

High-definition touchscreen, intelligent measurement
- Equipped with an intelligent interpretation system, the digital concrete crack width tester can automatically detect and display the width/ depth values of cracks in real time, enabling long-term monitoring of crack width and depth.
- The digital concrete crack width gauge features a digital 60x magnification lens, clearly displaying crack details.
- Built-in storage can save images and width data of 100,000 crack measurement points, supporting BMP format 24-bit color 320*240 resolution image storage.
- The digital concrete crack width detector supports touchscreen and button operation, with a simple and easy-to-understand interface.
- Equipped with a built-in rechargeable lithium battery, the digital concrete crack width detector can operate continuously for 8 hours, meeting the needs of long-term field operations.

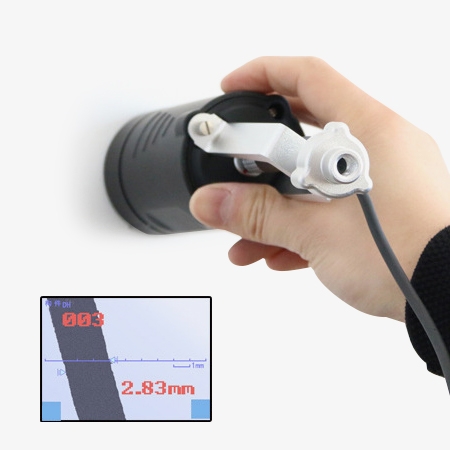

Data and images simultaneously stored, test imaging probe
- It provides a probe movement direction indicator to ensure accurate and standardized measurements. Users can manually select crack measurement points for precise crack width measurement.
- Equipped with powerful external data analysis and processing software, the digital concrete crack width tester can reinterpret crack images and provide detailed crack analysis reports.
- It features simultaneous storage of data and images, with viewing and deletion functions. The digital concrete crack depth tester can export data and images via USB flash drive. It comes standard with an 8GB USB flash drive and can be expanded.
- When performing crack monitoring, the digital concrete crack depth detector allows setting the total monitoring duration and test intervals, and displays the timer in real time. During monitoring, it automatically enters sleep mode for power saving and can be woken up at any time.
Application
This digital concrete crack width gauge is widely used in construction engineering, bridge inspection, road repair, underground structures, steel structures, and other fields to accurately measure the width and depth of cracks on the surfaces of materials such as concrete, masonry, and metal. It helps engineers and inspectors assess structural health, make repair and maintenance decisions, and ensure the safety and stability of buildings and facilities.
Bridges
Tunnels
Roads
Buildings
| Model | SISCO-DCWM-Zt501 |
| Crack Width Measurement Range | 0~10mm |
| Measurement Accuracy | 0.01mm |
| Estimated Reading Accuracy | 0.001mm |
| Monitoring Time | 31 seconds |
| Monitoring Interval | 1 second |
| Magnification | 60x digital |
| Storage Capacity | Stores images and width data for 100,000 crack measurement points |
| Storage Method | USB flash drive |
| Operation Method | Touchscreen and buttons |
| Measurement Method | Can be handheld or fixedly mounted on the surface of the object being measured |
| Power Supply | Built-in rechargeable battery, providing up to 8 hours of continuous operation |
| Weight | 530g |
| Operating Temperature | -10℃~50℃ |
| Main Unit Dimensions | 45mm x 115mm x 190mm |
| Instrument Components | Main unit, probe, signal cable, power supply, USB flash drive, mounting device, etc. |
Q1: What is a digital concrete crack width and depth meter?
A1: A digital concrete crack width and depth meter is an instrument used to accurately measure the width and depth of cracks in concrete structures. It provides fast and accurate crack width measurements digitally and is a commonly used tool in building engineering, structural maintenance, and safety monitoring.
Q2: What are the functions of a digital concrete crack width meter?
A2:
- Measuring Crack Width: The main function of a digital crack width measuring instrument is to accurately measure the width of cracks on the concrete surface, typically measuring cracks from 0.01 mm to several millimeters.
- Displaying Data: Measurement results are displayed in real time on an LCD screen or digital display, allowing users to easily read the data.
Q3: How to use a digital concrete crack width meter?
A3: First, ensure the crack surface is clean, free of debris or water. Then, calibrate the instrument to ensure its accuracy. Align the probe with the crack width measurement position, keep the device stable, and press the measurement button. The digital concrete crack width tester's display will automatically show the measurement result. Record the value for later saving or comparison.
Tips: How to maintain a paper tear strength tester?
- After each use, clean the clamps, pendulum, and sample fixing parts to prevent the accumulation of paper scraps, dust, or oil that could affect measurement accuracy. Regularly check the pendulum, clamps, transmission mechanism, and screws for looseness or wear, and tighten or replace them as necessary.
- Keep the tearing tester for paper in a dry, temperature-stable environment. Avoid direct sunlight or humid environments to prevent mechanical deformation or damage to electronic components.
- Handle the paper tearing strength tester with care during operation to avoid excessive impact or misoperation that could damage the pendulum. Record each use and maintenance session for long-term management and tracking.
