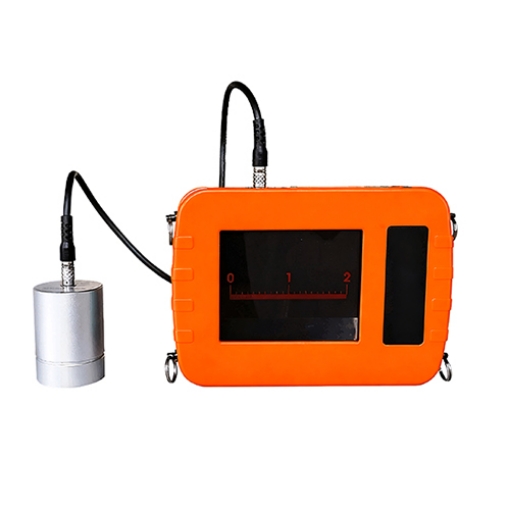

The digital concrete crack width monitoring instrument is a high-precision, intelligent measuring tool equipped with a night vision probe and a waterproof, dustproof, and shockproof housing, making it suitable for various harsh environments. The digital concrete crack width tester is widely used for crack monitoring and maintenance in concrete structures such as buildings and bridges.
5-inch clear display, rugged and waterproof housing
- The main unit of the digital concrete crack width meter comes with a large display screen with graduated lines for easy reading of crack width data.
- The tri-proof housing is waterproof, dustproof, and shockproof, suitable for use in various construction sites, ensuring durability and long-term stable operation.
- The built-in rechargeable polymer battery not only increases the monitor's operating time but also significantly extends its lifespan.
High-Precision Sensor Chip, night vision probe
- Using an sensor chip ensures high accuracy in crack width measurement, meeting stringent engineering requirements.

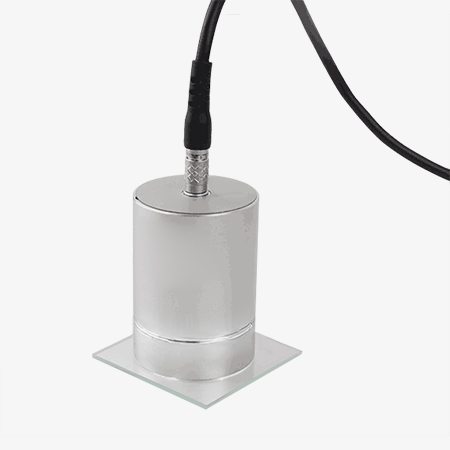

- Equipped with a night vision probe, the digital concrete crack width gauge can measure cracks in low-light environments, increasing its applicability under various working conditions.
- The built-in storage system saves measurement data for easy analysis and recording later.
- The digital concrete crack width meter's simple design and intuitive operation allow users to quickly learn how to measure and record data.
Application
The digital concrete crack width meter is widely used for crack monitoring and maintenance in concrete structures such as buildings, bridges, tunnels, and roads. It is particularly suitable for projects requiring long-term tracking of crack changes, effectively preventing structural safety problems caused by cracks, and is an important tool for engineering quality control and safety monitoring.
Bridges
Tunnels
Roads
Buildings
| Model | SISCO-DCW-BD-W100 |
| Waterproof Rating | IP65 |
| Weight | 0.8kg |
| Screen Size | 5 inch |
| LCD Resolution | 640x480 |
| Dimensions | 195x140x45mm |
| Measurement Range | 0.02~2.00mm |
| Reading Accuracy | 0.02mm |
| Magnification | 40 times |
| Minimum Graduation | 0.02mm |
| Power Supply | Built-in Lithium Battery |
| Cable Length | 2.5m |
| Main Unit Weight | 0.8kg |
| Operating Environment | Temperature: -10°C ~40°C |
| Humidity: 90%RH |
| Packaging Specifications | |
| Material | Engineering plastic |
| Weight | 5kg |
Q1: What is a digital concrete crack width meter?
A1: A digital concrete crack width meter is an instrument used to accurately measure the width of cracks in concrete structures. It provides fast and accurate crack width measurements digitally and is a commonly used tool in building engineering, structural maintenance, and safety monitoring.
Q2: What are the functions of a digital concrete crack width meter?
A2:
- Measuring Crack Width: The main function of a digital crack width measuring instrument is to accurately measure the width of cracks on the concrete surface, typically measuring cracks from 0.01 mm to several millimeters.
- Displaying Data: Measurement results are displayed in real time on an LCD screen or digital display, allowing users to easily read the data.
Q3: How to use a digital concrete crack width meter?
A2: First, ensure the crack surface is clean, free of debris or water. Then, calibrate the instrument to ensure its accuracy. Align the probe with the crack width measurement position, keep the device stable, and press the measurement button. The digital concrete crack width tester's display will automatically show the measurement result. Record the value for later saving or comparison.
Tips: What is the digital concrete crack width meter used for?
Digital concrete crack width gauges are widely used in building engineering, bridge monitoring, tunnel structures, and other infrastructure maintenance. Their main function is to accurately measure the width of cracks on the surface of concrete structures, helping engineers assess the severity and development trend of cracks.
