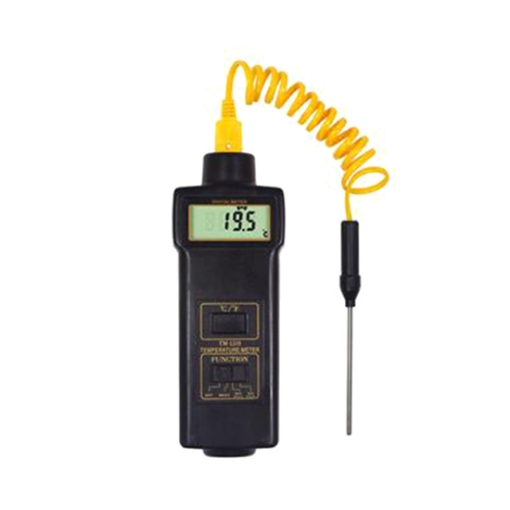

The digital surface thermocouple thermometer is a high-precision temperature measuring device designed to quickly and accurately measure the surface temperature of various materials. It uses a thermocouple sensor for fast response and wide temperature range capabilities. The thermometer features a digital display, offering easy-to-read temperature readings in Celsius or Fahrenheit. Its flat or angled probe ensures close contact with the surface, improving accuracy. Ideal for industrial maintenance, HVAC inspections, food safety checks, and laboratory applications.

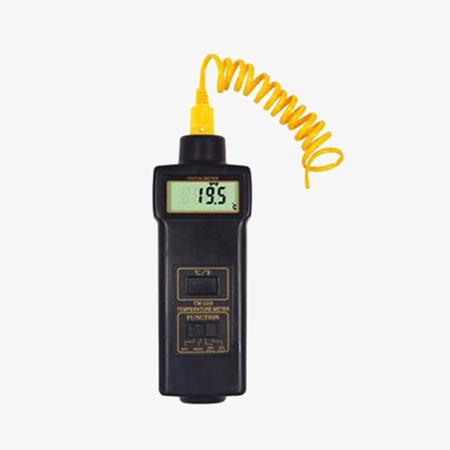

Fast response time
- The handheld surface thermocouple thermometer is equipped with high-sensitivity thermocouple probes, can accurately read surface temperature within seconds, and is suitable for dynamic or transient temperature measurement environments.
- It is suitable for various surfaces, specially designed for surface temperature measurement of different materials such as metal, ceramic, glass, plastic, etc. The measuring probe fits well to ensure stable readings.
- It adopts a portable and durable design, with a sturdy ABS or metal shell, compact structure, suitable for handheld operation, and easy to measure and carry on-site.
Data retention and maximum value recording
- The digital surface thermometer, TP02, is equipped with a "data retention" function, which can lock the current reading. Some models also have the function of recording maximum/minimum values, which facilitates data comparison and analysis.
- It is built in power-saving mode, automatically shuts down when not in operation for a long time, extends battery life, and has a low voltage prompt to ensure continuous operation.
- High measurement accuracy, up to ± 1 °C or higher, ensuring reliable temperature reading, suitable for precision applications such as industry, scientific research, and quality inspection.
Applications
This digital surface thermocouple thermometer is designed specifically for measuring the surface temperature of objects. It uses high-precision thermocouple sensors and a digital display screen to quickly and accurately read the surface temperature of the object being measured. Suitable for multiple scenarios such as industrial manufacturing, equipment testing, electronic maintenance, and food processing, it is an ideal tool for on-site temperature measurement and quality monitoring.
Equipment Temperature
Industrial Equipment
Hydrological Station
HVAC System Maintenance
Â
| Model | SISCO-ST-TM1310 |
| Measurement Range | -50~1300°C |
| Display | 4-digit 10mm LCD |
| Accuracy | ± (3% n+1) °C/± (3% n+1.8) °F |
| Resolution | 0.1°C/°F (below 1000°C/°F) |
| 1°C/°F (above 1000°C/°F) | |
| Working Temperature | 0~50°C |
| Working Humidity | <85%RH |
| Size | 178*68*39mm |
Q1: What is a digital surface thermocouple thermometer?
A1: This is a digital temperature measurement device that uses thermocouple sensors, specifically designed to measure the surface temperature of objects. Commonly used in industries, scientific research, manufacturing, HVAC, and other fields.
Q2: How does a digital surface thermocouple thermometer work?
A2: This thermometer uses a thermocouple (such as a K-type thermocouple) to sense the temperature difference on the contact surface and convert it into a voltage signal. After internal circuit processing, the temperature reading is displayed on a digital display screen.
Q3: What types of surfaces can it measure?
A3: Suitable for various flat or slightly curved surfaces, such as metal plates, heating elements, mechanical parts, pipelines, heat sealing packaging machines, etc. But it is not suitable for measuring loose or soft materials (such as liquid or powder surfaces).
Tips: How to choose a digital surface thermocouple thermometer?
- Choose the appropriate thermocouple type: K-type thermocouples are commonly used, with a wide temperature range and high cost-effectiveness, suitable for most industrial/experimental measurements.
- Check temperature range: Ensure that the device supports the required minimum and maximum temperatures, especially when working on high-temperature surfaces.
- Pay attention to accuracy and resolution: For applications that require high accuracy, models with a resolution of at least 0.1 ℃ should be selected.
- Probe material durability: High-quality surface probes are often made of stainless steel or nickel chromium alloy, which are wear-resistant and corrosion-resistant.
- Convenient reading method: Select models with backlit LCD screens for easy reading of data in low-light environments.
- Portability and battery life: Choose a lightweight body and long-lasting battery design, suitable for outdoor or long-term use.
- Additional features such as data retention, maximum/minimum value recording, automatic shutdown, temperature unit switching (°C/ °F), etc., are more practical.
