The ozone monitor is suitable for scenarios requiring stable and accurate online monitoring of ozone concentrations, such as tap water, drinking water, food and beverage, and industrial processes.
High-Precision Multi-Range Dissolved Ozone Monitoring
- Multiple measurement ranges are available, including 0.005~0.500 mg/L, 0.05~5.00mg/L, 0.05~10.00mg/L, and 0.05~20.00mg/L, adaptable to ozone monitoring needs from trace to high concentrations. Within typical ranges, measurement accuracy is better than 1%~3% of the reading.
- Utilizing a three-electric principle to measure dissolved ozone concentration, with a measurement range of 0.00-10.00 mg/L, the measurement is accurate, fast, and reliable, comparable to the DPD method. Measurement values are unaffected by low temperature or turbidity, require no consumables, and require minimal daily maintenance.
- The membrane-coated two-electrode sensor, equipped with special permeation membrane technology, is resistant to chemicals and surfactants, ensuring stable and reliable measurement data with low daily maintenance requirements.
Lightweight One-Handed Operation
- Features calibration and setting modes, allowing for automatic calibration, temperature unit settings, automatic lock function adjustments, and a one-button factory reset.
- A 20mm x 30mm multi-line backlit LCD display supports a multi-line display for clear and easy reading.
- A simple 4-button operation design, lightweight at only 95 grams, provides a comfortable grip and allows for accurate one-handed measurement.
Applications
SISCO's digital handheld water quality tester offers high precision and versatility, delivering reliable solutions for water quality testing across diverse environments. From ensuring the safety of home drinkable water to managing and maintaining water quality in aquariums, this tester enables users to quickly and accurately measure key parameters like pH, TDS, temperature, and electrical conductivity (EC). It’s also ideal for testing well water to verify source safety and balancing pH in swimming pools to support a healthy swimming environment. Suitable for both home and commercial use, this tester meets a broad range of water quality testing needs.
Aquarium Water
Well Water
Tap Water
Drinking Water
| Model | SISCO-WQT-DOZ100 |
| Measurement Range | 0.00~10.00mg/L |
| Resolution | 0.01mg/L |
| Accuracy | 1% F.S. |
| Temperature Measurement Range | 0~100.0℃/ 32~212℉ |
| Operating Temperature Range | 0~60.0℃/ 32~140℉ |
| Calibration Method | 2 points (0, any point) |
| Lock Function | Manual or automatically selectable |
| Electrodes | RZS6930 membrane-free three-electrode ozone dissolving electrode |
| Screen | 20mm×30 mm multi-line LCD display |
| Protection Rating | IP65 |
| Auto Backlight | 1 minute |
| Auto Power Off | 20 minutes |
| Power Supply | 1x1.5V AAA battery |

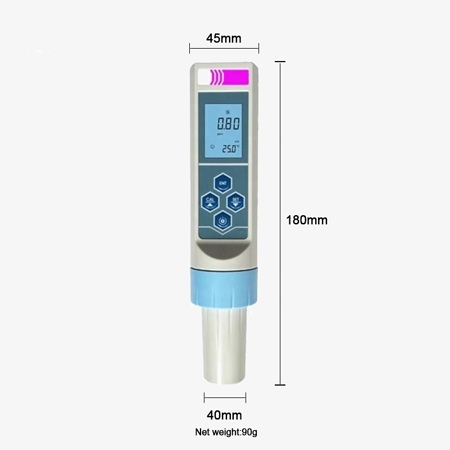

| Dimensions | 185mm×40mm×48mm |
| Weight | 95g |

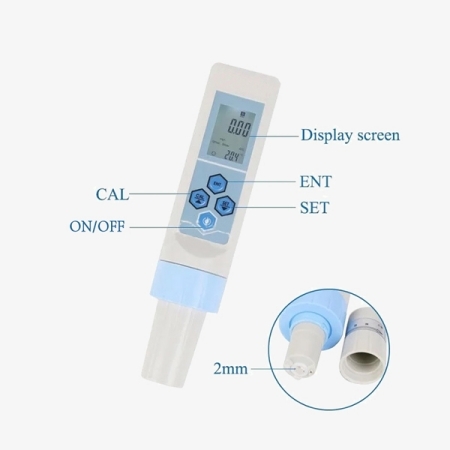

Structure Diagram
Q1: What does this water quality tester measure?
A1: This tester measures pH, TDS (Total Dissolved Solids), EC (Electrical Conductivity), Salinity, and Temperature, providing a comprehensive analysis of water quality.
Q2: Can I use this tester for drinking water?
A2: Yes, it is suitable for testing drinking water, as well as water used in aquariums, aquaculture, hydroponics, pools, and agricultural applications.
Q3: Does the tester have automatic temperature compensation?
A3: Yes, it features an external high-precision temperature sensor that enables automatic temperature compensation (ATC), ensuring accurate readings in various environments.
Tips: After a period of use, the measurement accuracy decreases. How should it be maintained?
First, clean the electrode probe regularly to remove surface deposits and keep the probe clean. Second, calibrate according to the instruction manual. If the slope exceeds the range of 65%-150% after calibration, check if the electrode is aging. If necessary, replace it with an original RZS6930 dissolved ozone electrode. Additionally, avoid contact between the electrode and strong corrosive chemicals to prevent probe damage.
