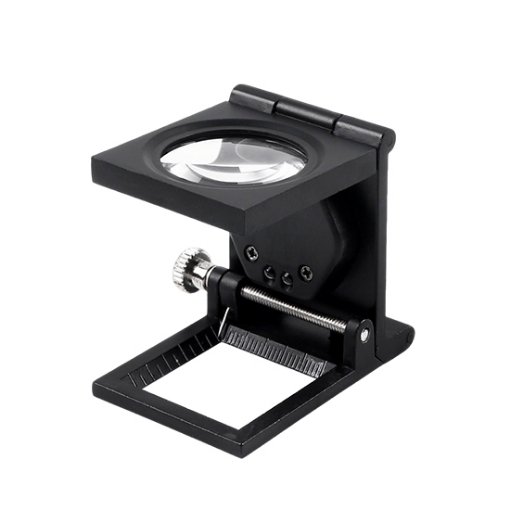

The LED folding magnifying glass for fabric inspection combines magnification with measurement accuracy. Equipped with dual scales in millimeters and inches (0.5 mm precision, total length 2.54 cm/1 inch), the fabric magnifying glass supports both desktop use and handheld operation. The durable metal frame paired with a high-quality optical lens ensures long-lasting performance and sharp imaging. Whether for textiles, leather, or material inspection, this portable magnifying glass delivers professional results.
Clear Imaging with LED Illumination

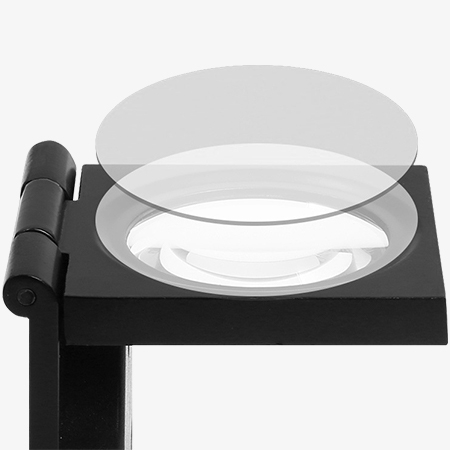

- This folding magnifying glass uses a premium optical glass lens with anti-reflective coating to enhance resolution and reduce distortion at the edges.
- Two built-in high-brightness LED bulbs of this magnifier provide soft, even light, allowing clear observation even in low-light conditions.
- At the same time, the LEDs ensure long-lasting performance while protecting your eyes from glare.
Foldable Design, Precise Measurement

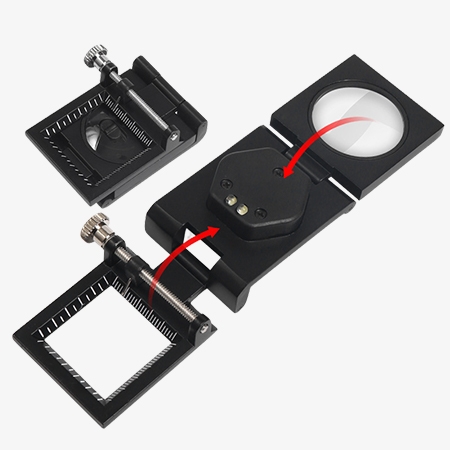

- Featuring a three-fold collapsible design, this fabric magnifying glass folds into a compact size for easy storage in a toolkit or pocket.
- The zinc alloy metal frame of the foldable magnifying glass is sturdy and impact-resistant, suitable for professional and field use.
- This metal folding magnifying glass's base integrates dual measurement scales (millimeters/inches) with 0.5 mm precision and 2.54 cm (1 inch) total length, making it ideal for accurate textile measurement, fabric inspection, and quality control tasks.
Applications
SISCO's folding magnifying glass for fabric inspection is widely used across multiple fields. In textile inspection, it allows clear observation of the warp and weft weave structure. For leather identification, it magnifies surface pores and cross-section layers. In stamp authentication, it is used to measure stamp size, printing dots, and hidden security marks, assisting in detecting authenticity. In the field of antique and coin appraisal, it helps examine embossing, patina, and wear patterns, providing valuable insights for grading and authenticity verification.
Leather
Stamps
Coins
Textiles
Â

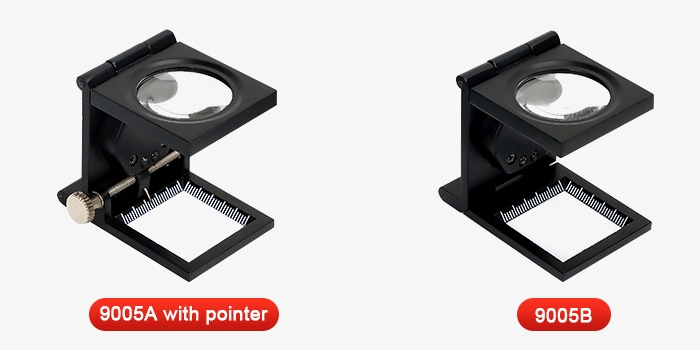

| Model | SISCO-MG-9005A | SISCO-MG-9005B |
| Design | Scale ruler + Pointer + LED | Scale ruler + LED |
| Magnification | 8X | |
| Lens Diameter | 28mm | |

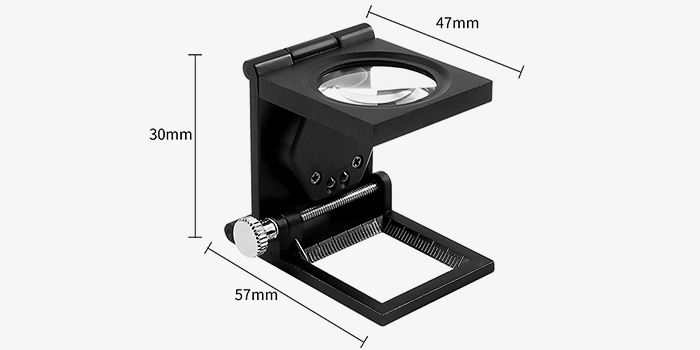

| Dimensions | 55×40×50 (mm) [manual measurement, slight variations may occur] | |
| Material | Zinc alloy metal base + Optical glass lens | |
| Illumination | 2 Built-in LED lights | |
| Power Supply | 3 × LR927 button cell batteries | |
| Net Weight | 130g | |
Â
Details
Q1: What is the magnification of this folding magnifying glass, and what can it be used for?
A1: This foldable magnifying glass with light offers 8X high-definition magnification. It is widely used for fabric inspection, textile quality control, leather flaw detection, stamp collecting, antique appraisal, and electronic component inspection. Its versatile design makes it suitable for both professional and everyday use.
Q2: Is the LED light bright enough for use in dim conditions?
A2: Yes. The metal foldable magnifier features two built-in LED bulbs that provide soft, even illumination without harsh glare. The light is bright enough for low-light fabric inspection, jewelry appraisal, or nighttime use, while being energy-efficient and long-lasting.
Q3: How durable is the foldable metal frame?
A3: The folding fabric magnifying glass is constructed with a zinc alloy metal frame, which is both sturdy and resistant to impact. The three-fold design allows for compact storage, while the strong frame ensures long-term durability even in professional or field inspection environments.
Tips: How to correctly use this metal folding magnifying glass?
- When using LED lights for auxiliary lighting, turn the switch to the left to turn on the LED lights, and turn the switch to turn off the lights.

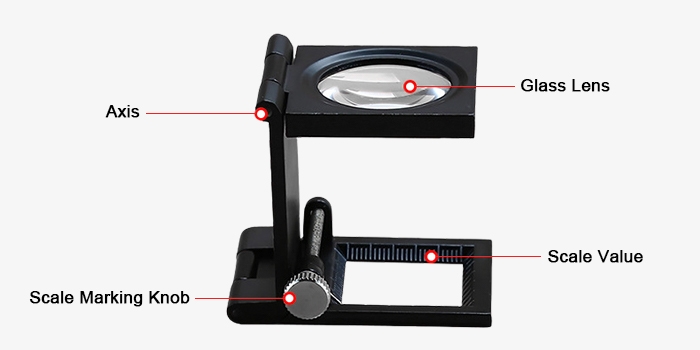

- While observing the object under the magnifying glass, you can measure the size by rotating the adjuster. The scale pointer will move left and right with the adjuster rotated.
- The product uses 3 button cells. Unscrew the battery compartment screws and place the new battery according to the positive and negative pole marks in replacing.
