This compact gloss tester with a clear and easy-to-read display screen, operates stably at (0°C, 40°C). Data transfer and power supply are achieved via a USB interface. The gloss checker can be used for glossiness measurement of plastics, paints, leather, and other materials.

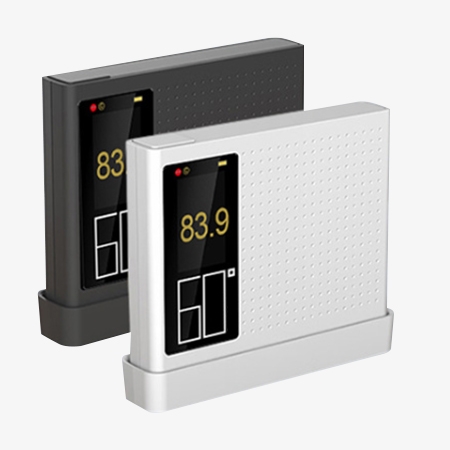

High-definition display, continuous measurement capability
- This gloss checker features a large high-definition screen that clearly displays gloss meter readings, gloss measurement units, and relevant status information.
- The gloss level meter's internal structure incorporates precision optical components and a stable light source system, achieving high-precision gloss measurement through fixed-angle beam projection and reflected light collection.
- The portable gloss meter supports continuous measurement mode, suitable for gloss testing on various material surfaces including wood, coatings, metals, plastics, and ceramics.

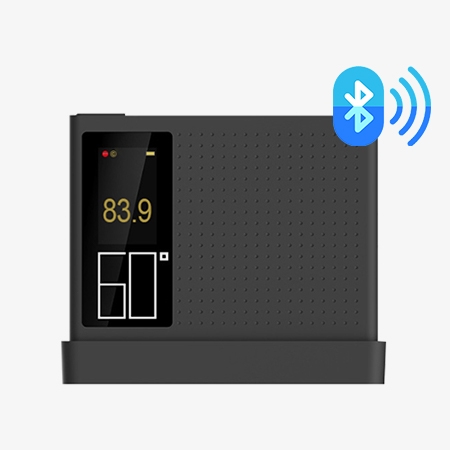

Bluetooth connectivity, compact design
- Data transfer via USB or Bluetooth enhances the gloss tester's convenience and flexibility. Once Bluetooth connection is established, users can save glossiness measurement data, set continuous measurement duration, and configure auto-shutdown timing through the companion app.
- The gloss meter for paint is compact and portable, can be easily placed on a desk or used for long-term monitoring with its dedicated base. The 60 degree gloss meter adopts low-power design and auto-shutdown, extending battery life.
Application
This portable gloss meter is primarily used for precise measurement and comparative analysis of material surface gloss. The gloss meter for marble is widely applied in the coatings and paint industry for coating quality control and batch consistency testing, and in the plastics, rubber, and metal products sectors to evaluate surface molding, polishing, or spraying effects. The gloss tester is also suitable for appearance grading and project acceptance of construction and decorative materials such as ceramics, stone, glass, and flooring.
Paint
Plastics
Hardware
Glasses
| Model | SISCO-GM-DG60 SE | SISCO-GM-DG60 Pro | SISCO-GM-DG60 MAX |
| Calibration | Automatic | ||
| Angle Measurement | 60° | ||
| Test Parameters | Gloss (GU) | ||
| Test Aperture | 23*7mm | ||
| Measurement Range | 0-200GU | 0-1200GU | 0-2000GU |
| Graduation Value | 1GU | 0-100: 0.1GU; ＞100: 1GU | |
| Measurement Stability | 1 | ±0.1 / ±0.1 % | 0.1 / 0.1% |
| Measurement Time | ＜1s | ||
| Battery Capacity | 5000 continuous measurements on a single charge | 15000 continuous measurements on a single charge | 30000 continuous measurements on a single charge |
| Screen | Full-color display screen, 135*240mm | ||
| Interface | USB | USB, bluetooth | |
| Operating Temperature | 0-40°C | ||
| Humidity | Less than 85%, no condensation | ||
| Weight | 80g | 116g | |
| Size | 84*70*17mm | ||
| Accessories | USB data cable, lanyard, instruction manual, calibration standard board, cleaning cloth. | ||
Q1: What is a gloss meter?
A1: A gloss meter is a precision optical instrument used to measure the gloss level of material surfaces, typically expressing results in GU (Gloss Units). It is widely applied in industries such as coatings, plastics, metals, ceramics, paper, and printed materials to evaluate surface quality, consistency, and visual appearance.
Q2: How does gloss meter work?
A2: A gloss tester emits a stable light source at a fixed angle 60 degree onto the surface being measured and detects the intensity of light reflected back in the specular direction. The gloss meter for printing industry compares the reflected light from the measured surface to the reflectance value of a standard black glass, thereby calculating and displaying the corresponding gloss value.
Q3: How to calibrate a gloss meter?
A3: Calibration is typically performed using the standard calibration plate supplied with the portable gloss meter. After turning on the 60 degree gloss meter, place the gloss level meter on a clean calibration plate and follow the prompts to execute automatic or manual calibration, ensuring the gloss measurement device's reading matches the standard value. Regular calibration eliminates errors caused by environmental changes and light source aging, ensuring long-term measurement accuracy.
Tips: What are the features of this digital gloss meter?
This portable gloss meter features automatic calibration, maintaining long-term measurement accuracy without manual adjustment. It is equipped with a clear digital display that shows gloss values in real time and visually indicates calibration status. With fast measurement speed and a compact design, the gloss checker is suitable for efficient and stable gloss measurement in laboratories, production lines, and field applications.
