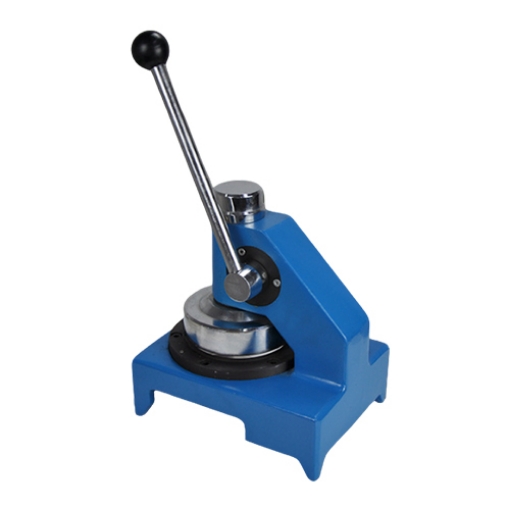

The round gsm cutter allows for manual cutting of samples, minimizing tolerances and providing high-precision, standard sampling. The circular sample cutter can cut paper or thin sheets from 0.1 to 1.2 mm, making it ideal for fast and accurate sampling of cardboard.

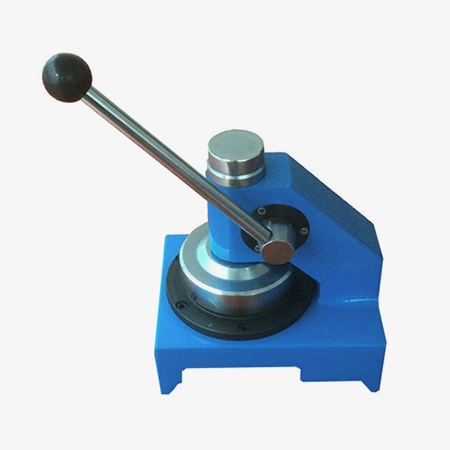

Sturdy round base, high-precision weight testing
- The round gsm cutter's base is made of metal, providing a stable support. A circular pressure plate is used to hold the paper to be tested.
- The round design of the pressure plate helps the gsm sample cutter accurately cut the paper sample. The sampler's well-designed structure ensures that the paper does not move during measurement.
- The circular sample cutter's stable design and uniform pressure ensure accurate sampling every time, making it suitable for stringent quality control testing.
Flexible manual lever, precise sampling
- The round gsm cutter's operating lever is typically made of metal, with a black knob on one end. The user manually operates this gsm cutter's lever to apply pressure, pressing down the circular pressure plate to sample the paper.
- The circular sample cutter simultaneously cuts the sample and measures the paper's weight. By measuring the sample weight and combining it with the cut paper area, the paper's weight (mass per unit area) can be calculated.
Application
The paper round sample cutter is suitable for standardized sampling and quantitative testing in the paper and packaging industry. The gsm round cutter can generally cut and sample paper with a thickness of (0.1-1.0) mm, such as corrugated paper, A4 paper, cardboard, industrial paper, coated paper, etc.
A4 Paper
Corrugated Paper
Cover Paper
Cardboard
| Model | SISCO-GC-SKZ114C |
| Sampling Area | 100cm² |
| Sampling Diameter | 112. 8 mm |
| Sampling Area Tolerance | ± 0.35cm² |
| Sampling Thickness | (0. 1~1.0)mm |
| External Dimensions | 315mm X 255mm X 430mm (L x W x H) |
| Weight | 25kg |
Q1: What is a paper sample round cutter?
A1: A paper gsm sample cutter is a standardized sample cutting device specifically designed for materials such as paper, cardboard, and textiles. It is primarily used to obtain circular samples of a specific area (typically 100 cm²) for subsequent physical property testing, such as grammage (GSM) and burst strength. The paper gsm cutter's core features are high-precision cutting and standardized sampling, making it widely used in industries such as papermaking, packaging, and textiles, as well as in quality inspection.
Q2: How does a paper gsm round cutter work?
A2: The paper sample cutter operates on a mechanical punching principle, using a precision die under pressure to cut. The material is placed on a disc, and the handle is pressed down to cut, then the sample is removed. The sample is weighed on a precision balance, and the grammage (GSM) is calculated using the formula (quantity = sample mass/area).
Q3: Is a GSM sample cutter suitable for laboratory use?
A3: GSM sample cutters are widely used in laboratories for quality control and material testing. They are designed to meet testing standards and provide consistent, repeatable sample preparation for GSM measurement. These cutters are commonly found in paper mills, packaging laboratories, printing facilities, and research labs where accurate grammage testing is required.
Tips: Is a GSM sample cutter the same as a GSM meter?
No, they are not the same. A GSM sample cutter is used to only prepare samples by cutting materials into a fixed, standard area, while a GSM meter (also called a grammage tester, typically includes electronic balance and calculation functions) is used to measure and display the weight per unit area of the material. In practice, GSM testing usually requires both tools: the sample cutter for preparation and a precision balance or GSM meter for weighing and calculation.
