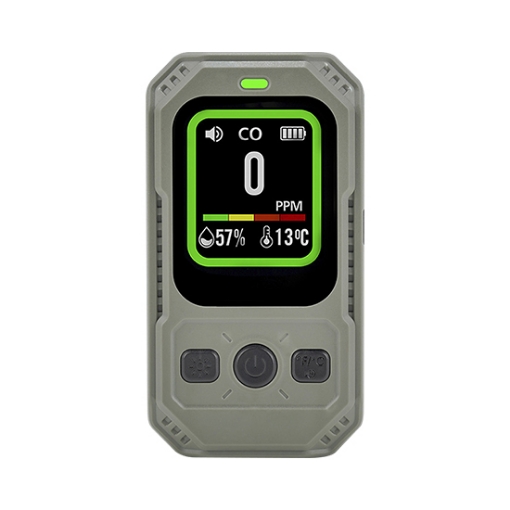

The handheld carbon monoxide detector is a portable device focused on safety monitoring, widely applicable to various scenarios such as homes, vehicles, and industrial sites for carbon monoxide safety monitoring.
Three-in-One Detection, High-Range CO Monitoring
- Simultaneously detects three core indicators: carbon monoxide concentration, ambient temperature, and relative humidity. It displays real-time CO levels, temperature, and humidity values in the air, providing a one-stop solution for multi-dimensional environmental monitoring needs. Detection data is displayed intuitively on the screen.
- Its main function is to detect carbon monoxide (CO) concentration in the environment, with a high measurement range of 0-1000ppm, and it features a magnetic placement function for easy placement.

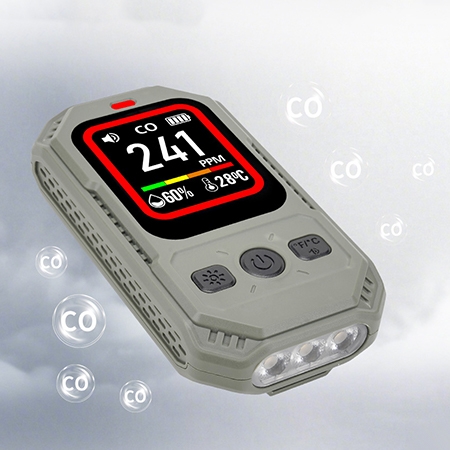

- When the detected carbon monoxide concentration exceeds the set safety threshold, it displays four levels of green, yellow, orange, and red based on the carbon monoxide concentration. The device will issue an audible and visual alarm to promptly remind the user to take measures to avoid poisoning accidents.
Easy to Operate, Long Battery Life, High-Definition Digital Display
- The carbon monoxide meter handheld supports one-button switching between Celsius and Fahrenheit temperature units. The threshold values for each CO detection concentration range can be manually adjusted, and range increases/decreases and value fixes can be easily accomplished with simple button operations.

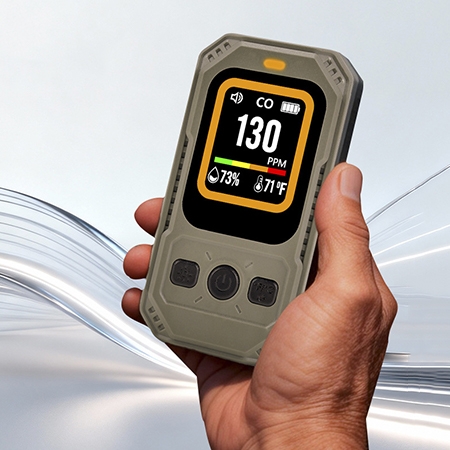

- The multi-color LCD display clearly shows carbon monoxide concentration values, alarm status, and other information, providing a clear and easy-to-read display for convenient use.
- The handheld carbon dioxide detector has a built-in 1000mAh lithium battery, which can be charged via a 5V/1A Type-C interface. A full charge takes only about 3 hours; the CO detection mode can operate for ≥170 hours after a full charge.
Applications
In underground mines, residual carbon monoxide after blasting can be monitored to prevent poisoning and explosion risks; in chemical workshops, carbon monoxide leaks can be detected in real time to ensure production safety; in underground garages and tunnels, CO concentrations from vehicle exhaust can be monitored to prevent poisoning; and during fire rescue operations, it can be used for detection at fire scenes and in confined spaces to protect the safety of rescue personnel.
Fire and Rescue
Mining Underground
Parking Garage
Chemical Workshop
| Model | SISCO-SMOKE-SB9618 |
| Battery Specifications | 1000mAh Lithium Battery |
| CO Detection Range | 0~1000 ppm |
| Temperature Measuring Range | -10℃ (14℉)~55℃ (131℉) |
| Humidity Measuring Range | 0-100% RH |
| Charging Input | 5V/1A |
| Full Charging Time | Approx. 3 Hours |
| Working Time of Carbon Monoxide after Fully Charged | ≥170 |
| The Max.Luminous Flux (High) | ≥100Lm |
| The Max.Luminous Flux (Low) | ≥20Lm |
| Working Time of Torch after fully charged (High) | ≥3Hours |
| Working Time of Torch after fully charged (Low) | ≥15 Hours |

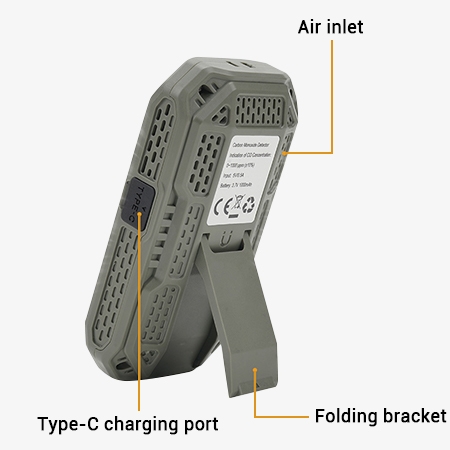

Structure Diagram
Q1: Where should a carbon monoxide detector be installed?
A1: It is recommended to install one near each bedroom and on each floor of the house. The best location is on a wall or ceiling, 1.5-2 meters above the ground, away from doors, windows, fans, or HVAC vents.
Q2: Do I need a carbon monoxide detector if I already have a smoke alarm?
A2: Yes, you must. Smoke alarms cannot detect colorless and odorless carbon monoxide gas. They have different functions, but are both essential for home safety and are indispensable. There are also combination detectors on the market that combine the functions of both.
Q3: What should I do if the detector alarms?
A3: Immediately evacuate to a place with fresh air outdoors, turn off the gas supply (e.g., close the gas valve), do not touch any electrical switches, and call emergency services or the gas company for help. Return only after a professional has checked and confirmed it is safe.
Tips: How many brightness levels does the flashlight function of the handheld carbon monoxide detector have, and what is the battery life for each level?
The flashlight has two brightness levels: high and low. On a full charge, the high brightness mode can operate for ≥3 hours, and the low brightness mode can operate for ≥15 hours.
