This HD industrial borescope offers 1920×1080 resolution and a 2~10 cm focal range, ensuring sharp and detailed image capture at multiple depths. Powered by an advanced CMOS image sensor, the endoscope camera delivers exceptional clarity and true-to-life visuals. With an IP67 waterproof rating, the inspection camera performs reliably even in humid or harsh environments. Built with a 2000mAh high-capacity lithium battery, it provides up to 3 hours of continuous operation, meeting the demands of extended inspection work.
Clear Imaging & Wide Viewing Angle
- This industrial endoscope with screen features a 4.3-inch IPS display and a 70° field of view, offering a significantly wider observation range.
- With a 300,000-pixel HD lens and a 3~8 cm depth of field, the industrial borescope captures fine details with remarkable accuracy. The 1080P imaging technology ensures sharp, vivid visuals — every tiny detail is clearly visible, providing reliable visual support for automotive and industrial inspections.
Practical Accessories & Durable Cable Design

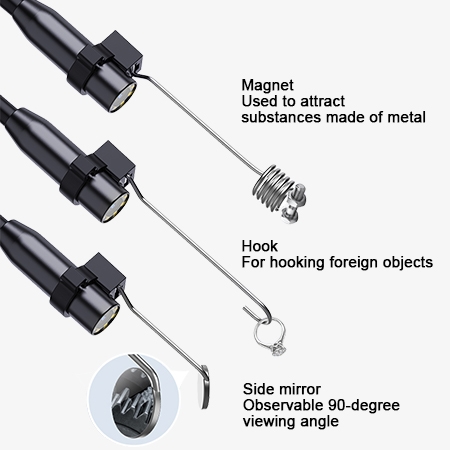

- The handheld inspection camera comes with a complete set of practical accessories, including a magnet, hook, and side mirror. The magnetic tip retrieves small metal objects easily; the hook removes debris or foreign objects from pipes; and the side mirror provides a 90° viewing angle, making hidden areas easy to inspect.
- The semi-rigid cable of the industrial endoscope camera features a pure copper core for stable data transmission, while the reinforced steel wire exterior offers excellent wear resistance, greatly extending product durability and ensuring consistent performance in professional inspection environments.
Applications
The industrial endoscope is widely used in automotive inspection, allowing users to check engine cylinders, valves, and oil leaks without disassembly and quickly pinpoint faults. During carbon buildup inspection, it observes valves and pistons through the spark plug hole, preventing unnecessary engine damage. In home appliance repair, the inspection camera helps examine circuit boards and compressors for faults. For pipeline or drain inspection, the pipe endoscope locates blockages or foreign objects, assesses severity, and guides cleaning — improving efficiency and accuracy.
Carbon Check
Appliance Repair
Clog Detection
Auto Repair
| Model | SISCO-IC-G30-M |
| Probe Diameter | 8mm |
| Cable Length | 1M / 5M / 10M (hard-cable) |
| Lens Type | Single lens |
| Screen Size | 4.3 inches |
| Pixel Resolution | 0.3 MP |
| Display Resolution | 1920 × 1080 |
| Focal Distance | 2~10 cm |
| Field of View | 70° |
| Image Sensor | CMOS |
| Light Source | 8 adjustable white LED lights |
| Luminous Flux | 24 LM |
| Charging Input | 5V / 1A |
| Charging Port | Type-C |
| Charging Time | 3 hours |
| Battery Capacity | 2000 mAh (approx. 3 hours of operation) |
| Operating Temperature | 0°C~45°C (33.8°F~113°F) |
| Camera Operating Temperature | 0°C~80°C (33.8°F~176°F) |
| Waterproof Rating | IP67 |
| Weight | 494g / 642g / 800g |
Details
Q1: What is the screen size and image quality of this handheld industrial endoscope?
A1: This industrial endoscope features a 4.3-inch IPS HD display with a 178° wide viewing angle, offering clear, bright, and detailed visuals. With 1080P resolution and advanced CMOS imaging technology, it ensures accurate inspection results even in dimly lit or narrow spaces.
Q2: Is this inspection camera easy to operate?
A2: Yes. The handheld inspection camera is designed for plug-and-play use. It doesn’t require WiFi, Bluetooth, or an app—just power it on and start inspecting. This makes it user-friendly and efficient, even for beginners.
Q3: What environments or applications is this industrial endoscope suitable for?
A3: This handheld inspection camera is ideal for automotive maintenance, home appliance repair, plumbing and drain inspection, and other industrial applications. Its IP67 waterproof rating and durable cable allow reliable use in wet or dusty environments.
Tip: How can I get the best image quality when using the endoscope?
To achieve the clearest visuals, adjust the lens distance within the optimal focus range of 2~10 cm and fine-tune the brightness of the built-in LED lights according to your working environment. Keep the lens clean and dry to maintain consistent image clarity during inspections.
