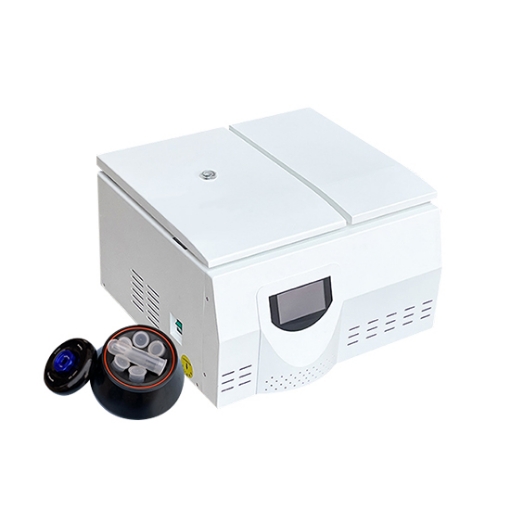

    High-Speed Refrigerated Centrifuge, 16000/18500/20500 rpm

    This benchtop high-speed refrigerated centrifuge offers selectable maximum speeds of 16000, 18500, or 20500 rpm. It features a wide temperature control range from -20°C to 40°C, supports 4×100ml rotor capacity, and operates at 750W~850W total power. The refrigerated centrifuge has a durable all-steel body and a 5-inch LCD touchscreen for intuitive operation. Our centrifuge machine is ideal for radioimmunoassay, biochemical analysis, plasma separation, and blood product processing applications.
    SKU: SISCO-C-TGL
    *
    *
    $4,424.76
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    This digital refrigerated laboratory centrifuge is equipped with an advanced CPU control system for precise regulation of speed, time, and relative centrifugal force (RCF). It features a maintenance-free brushless DC motor and offers a variety of rotor options. This multi-purpose clinical and research centrifuge is suitable for use in molecular biology, cell culture, and various clinical and scientific research settings.

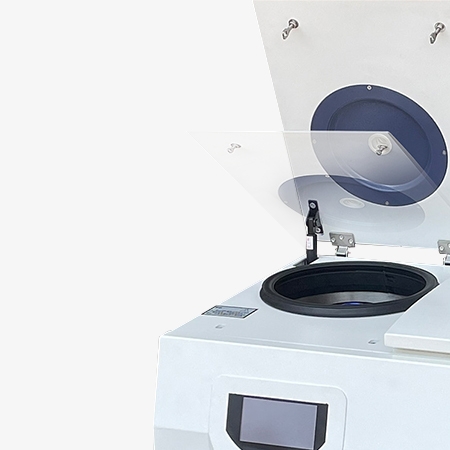

    Refrigerated centrifuge stainless steel chamber

    Durable Construction & Intelligent Operation

    • The benchtop centrifuge is built with a triple-layer safety structure and stainless-steel centrifuge chamber for high corrosion resistance, easy cleaning, and stable operation.
    • Automatic lid-lock system and spring-assisted lid opening for safe and effortless operation.
    • The 5-inch touchscreen with an intuitive UI of this centrifuge allows precise control of speed, time, and centrifugal force via the microcontroller.

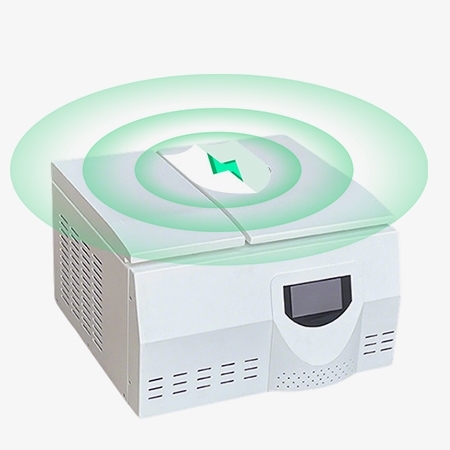

    Refrigerated centrifuge multi layer protection

    Multi-layer Protection for Safe Operation

    • Dual electronic safety locks with an explosion-proof design prevent operation unless the lid is fully closed and locked.
    • Overspeed protection system automatically stops operation if limits are exceeded, safeguarding both the centrifuge and samples.
    • Brushless DC motor of the microcentrifuge requires no maintenance and supports automatic RCF calculation with one-click speed/RCF switch.

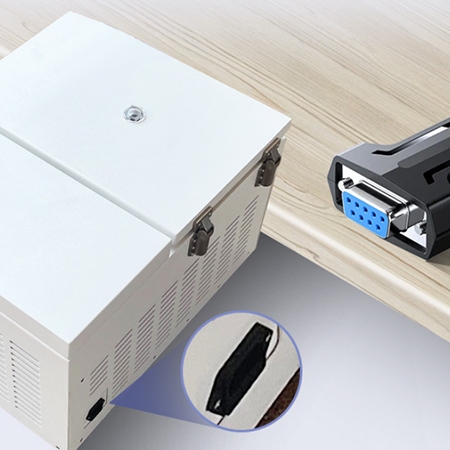

    Refrigerated centrifuge optional RS-485 interface

    Flexible Configuration & Smart Alerts

    • Optional RS-485 interface for PLC integration with other lab systems, supporting data sharing and remote control. What's more, the USB port is available for data storage and export.
    • The lab centrifuge's adjustable acceleration/deceleration in 10 gear levels; speed/RCF increments adjustable in 10 rpm/10g; timer range from 0~99.99 minutes.
    • Built-in alarm system notifies of run completion, errors, or imbalance with audible alerts and automatic stop to ensure safety.

    Applications

    Centrifuges are widely used across key fields. In life sciences, they enable precise separation of cells and organelles, supporting protein and nucleic acid purification. In academic research, they're essential for molecular separation in biochemistry, DNA/RNA extraction, and chromosome isolation. In healthcare, centrifuges assist in blood component separation for clinical testing, pathogen isolation for diagnostics, and blood product preparation. In biopharmaceuticals, they play a vital role in drug development, vaccine production, and ensuring product quality and safety.

    Centrifuges for academic research

     Academic Research

    Centrifuges for healthcare

    Healthcare

    Centrifuges for biopharmaceuticals

    Biopharmaceuticals

    Centrifuges for life sciences

    Life Sciences

    Specs



    Model SICO-C-TGL-16M SICO-C-TGL18M SICO-C-TGL20M
    Maximum Speed 16000 r/min 18500 r/min 20500 r/min
    Max Relative Centrifugal Force (RCF) 21532×g 24637×g 29800×g
    Max Capacity 4×100 ml
    Temperature Control Range -20℃~40℃
    Temperature Accuracy ±1°C
    Speed Accuracy 1~99.99 min/jogging
    Noise Level ≤62 dB
    Power Supply AC 220V±22V, 50Hz
    Total Power Consumption 750W 800W 850W
    Dimensions (L×W×H) 560×540×360 (mm)
    Net Weight (without rotor) 68 kg
    Gross Weight 80 kg

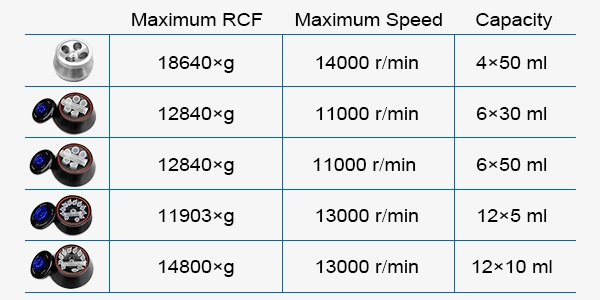

    Different Rotors

    Refrigerated centrifuge different rotors

    Details

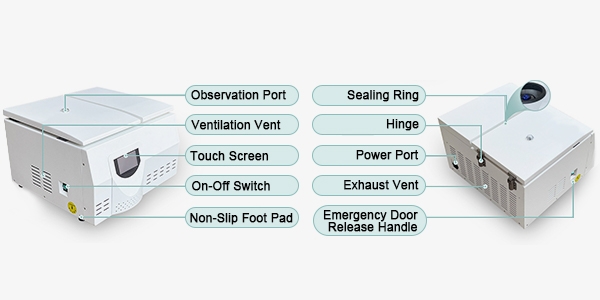

    Refrigerated centrifuge structure

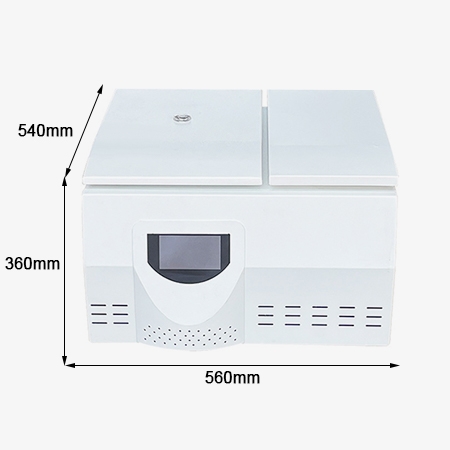

    Refrigerated centrifuge dimensions

    FAQs

    Q1: What applications is a benchtop refrigerated centrifuge suitable for?
    A1: This type of laboratory refrigerated centrifuge is ideal for a range of applications, including molecular biology, clinical diagnostics, blood component separation, cell harvesting, and biochemical analysis. Its precise speed and temperature control make it suitable for processing temperature-sensitive samples.

    Q2: How does this high-speed centrifuge ensure safety during operation?
    A2: The centrifuge machine features a dual electronic lid lock, overspeed protection, and imbalance detection. It will only start when the lid is securely closed and will stop automatically if any abnormality occurs, ensuring operator safety and protecting the sample.

    Q3: What are the key advantages of using a temperature control centrifuge like this one?
    A3: This refrigerated centrifuge maintains a stable temperature range of -20°C to 40°C, essential for preserving sample integrity during high-speed spins. It also features programmable settings, allowing users to fine-tune speed (up to 16000/18500/20500 rpm) and duration for different protocols.

    Tips: What should I pay attention to when using a benchtop centrifuge?
    Always balance the rotor with equal-weight samples before starting the centrifuge. Uneven loading can cause vibration, reduce efficiency, and potentially damage the equipment. For optimal performance and extended equipment lifespan, load opposite tubes with matching volume and weight.
