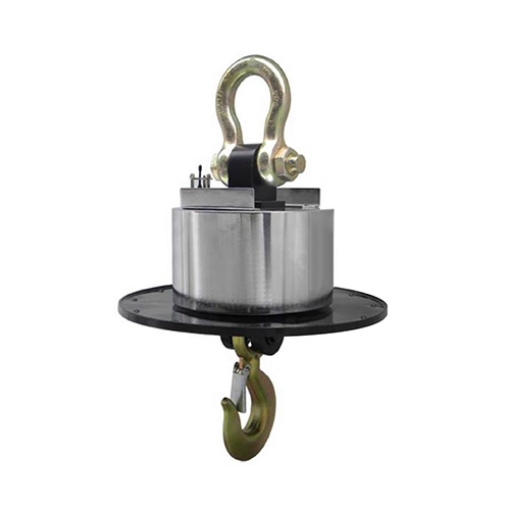

This industrial crane scale features excellent thermal insulation and remote control with a wireless range of up to 200 meters in open areas. It has an AC100-240V input, 50/60Hz, and an 850mA output. The crane dynamometer has a selectable zero range and a capacity range from 5 tons, 10 tons, 15 tons, to 50 tons.

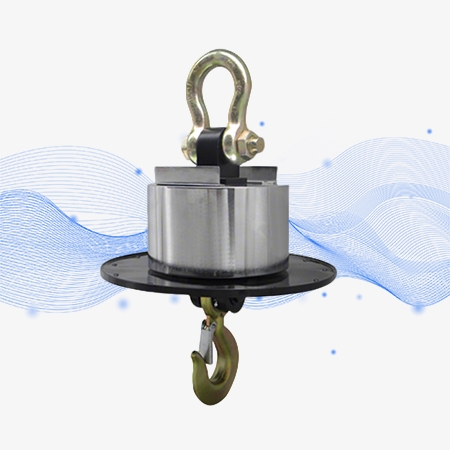

High-temperature-resistant material, 99-record data storage
- The crane scale dynamometer is welded from seamless steel pipe for durability, and the insulation panel is made of high-temperature-resistant material for excellent thermal insulation. Crane scale with remote display's capacities range from 5 tons, 10 tons, 15 tons, to 50 tons.
- The crane load cell features menu-driven operation, including calibration, storage, data retrieval, peak hold, and automatic data storage.
- Data storage is maintained even during power outages, and the 5 ton crane scale can store up to 99 records for easy operation.

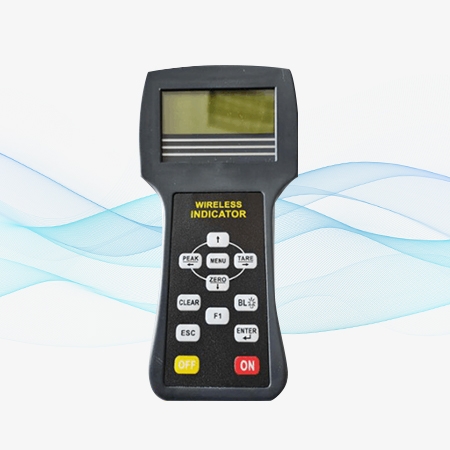

Handheld instrument with printer and large-screen connectivity
- The crane hook scales' wireless system offers 32 selectable frequencies to prevent interference between multiple crane scales in the same location.
- The crane scale instrument display features a handheld design for portability and outdoor use.
- The meter automatically shuts down after 30 minutes of inactivity, conserving energy.
- The digital crane scale comes with a standard RS232 output port for connecting to a printer and wirelessly connecting to a large screen.
Application
The crane weight scale can be used for weighing and transportation in industrial production. For example, it can be used for the lifting and handling of bulk materials such as steel, ore, and coal, and for measuring the handling of containers and bulk cargo at ports, terminals, and logistics warehouses. The industrial care scale can also be used for the lifting and weighing of heavy materials such as rebar and precast concrete components in the construction and building materials industries.

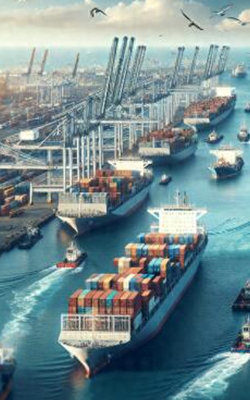

Port Transportation

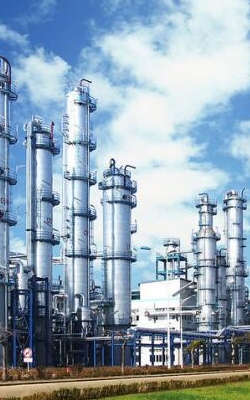

Chemical Industry

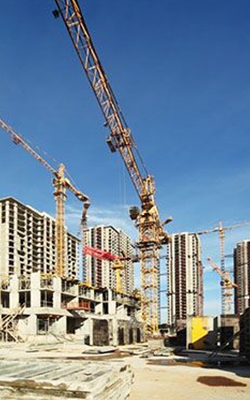

Construction

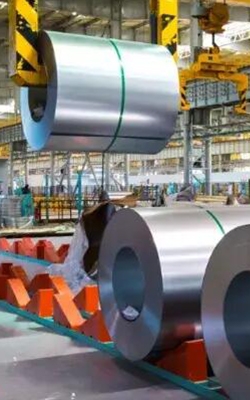

Steel Industry
| Model | ATO-GWD800-1 | ATO-GWD800-2 | ATO-GWD800-3 | ATO-GWD800-5 | ATO-GWD800-10 | ATO-GWD800-15 | ATO-GWD800-20 | ATO-GWD800-30 | ATO-GWD800-50 |
| Capacity (kg) | 1000 kg (1 ton) | 2000 kg (2 ton) | 3000 kg (3 ton) | 5000 kg (5 ton) | 10000 kg (10 ton) | 15000 kg (15 ton) | 20000 kg (20 ton) | 30000 kg (30 ton) | 50000 kg (50 ton) |
| Resolution (kg) | 0.5 kg | 1 kg | 1 kg | 2 kg | 5 kg | 5 kg | 10 kg | 10 kg | 20 kg |
| G.W. (kg) | 45 kg | 47 kg | 53 kg | 62 kg | 87 kg | 100 kg | 130 kg | 210 kg | 575 kg |
| Accuracy Class | National Standard GB/T11883-2002 "Electronic Crane Scale" | ||||||||
| Display Show | LCD with backlight | ||||||||
| Wireless Distance | Open area 200 meters | ||||||||
| Filtering | Low, medium, high selectable | ||||||||
| Division Value | Standard 2000 to 3000 divisions (up to 30000 divisions) | ||||||||
| Zero Range | Optional, from 4% to 100% of range | ||||||||
| Tare Range | 100% F.S. | ||||||||
| Overload Display | 100% F.S. + 9e | ||||||||
| Safety Load | 125% F.S. | ||||||||
| Ultimate Load | 700% F.S. | ||||||||
| Scale Battery | 6V/4Ah Ni-MH rechargeable battery | ||||||||
| Meter Battery | 1 x 18650 lithium battery | ||||||||
| Charger | Input: AC100-240V 50/60Hz | ||||||||
| Output: 850mA | |||||||||
| Working Humidity | ≤85% RH 20°C environment | ||||||||
| Radio Frequency | 433MHz | ||||||||
Details

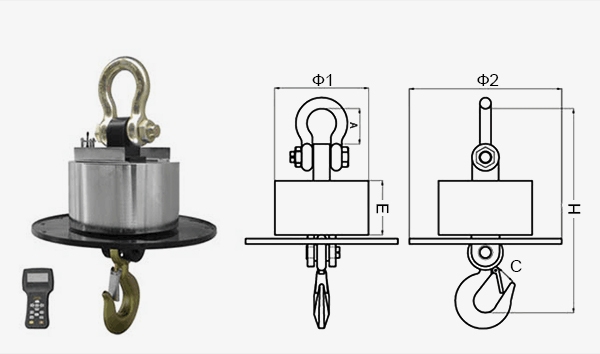

| Capacity (kg) | A (mm) | C (mm) | E (mm) | H (mm) | Φ1 (mm) | Φ2 (mm) | G.W. (kg) |
| 1000 kg (1 ton) | 67 | 35 | 160 | 450 | 270 | 400 | 45 |
| 2000 kg (2 ton) | 95 | 45 | 160 | 510 | 270 | 400 | 47 |
| 3000 kg (3 ton) | 113 | 55 | 185 | 625 | 270 | 520 | 53 |
| 5000 kg (5 ton) | 122 | 65 | 185 | 710 | 325 | 520 | 62 |
| 10000 kg (10 ton) | 144 | 70 | 185 | 835 | 325 | 520 | 87 |
| 15000 kg (15 ton) | 166 | 85 | 185 | 900 | 325 | 520 | 100 |
| 20000 kg (20 ton) | 260 | 90 | 200 | 1055 | 325 | 620 | 130 |
| 30000 kg (30 ton) | 285 | 100 | 220 | 1140 | 375 | 620 | 210 |
| 50000 kg (50 ton) | 360 | 160 | 280 | 1680 | 450 | 750 | 575 |
Q1: What is an industrial electronic crane scale?
A1: An industrial electronic crane scale is an electronic scale that is suspended from lifting equipment (such as a crane, hoist, or electric hoist) to directly weigh cargo during the lifting process. Combining weighing technology with lifting capabilities, it offers high efficiency, accuracy, and safety, making it widely used in the industrial sector.
Q2: How does an industrial electronic crane scale work?
A2: The weight of the cargo acts on the sensor through the hook. The deformation of the sensor's elastic body causes a change in the resistance of the strain gauge, generating a voltage signal. This signal is then amplified, filtered, and converted into a digital signal through A/D conversion. The signal is then transmitted to an instrument via wired or wireless communication to display the weight data.
Q3: What precautions should be taken when using an industrial electronic crane scale?
A3: You need to consider the capacity (0.5-200 tons), environmental adaptability (explosion-proof/high-temperature resistant), communication requirements (wireless/wired), and crane compatibility. Avoid overloading and calibrate regularly. Dedicated models are required for explosion-proof applications. Batteries should be replaced promptly to prevent low battery operation.
Tips: What are the components of a wireless industrial crane scale?
An industrial crane scale includes a load cell (the core component that converts gravity into an electrical signal), a load-bearing mechanism (such as a hook, shackle, and scale frame), an A/D converter board (which converts analog signals to digital signals), a display (LCD screen), a power supply (battery or external power supply), and a wireless transmission device.
