This infrared CO2 sensor supports multiple signal output modes, including UART, PWM, and 0.4–2 V analog output. With its compact design and convenient interfaces, the infrared carbon dioxide sensor is suitable for HVAC systems, indoor air quality monitoring, industrial process and safety monitoring, agricultural and livestock environments, fresh-air systems, ventilation equipment, and carbon dioxide detection devices, making it suitable for OEM equipment and integrated CO₂ monitoring applications.
Wide Measurement Range & Stable Performance
- Wide Measurement Range: Supports CO₂ measurement ranges up to 50,000 ppm, making it suitable for a variety of environmental, industrial, and monitoring applications.
- High Sensitivity: Provides accurate and responsive detection of CO₂ concentration changes for reliable monitoring performance.
- Low Power Consumption: Designed for energy-efficient operation, helping reduce power requirements during continuous monitoring.
- Good Stability: Maintains consistent and reliable measurement performance over extended periods of operation.
Flexible Communication & Easy Integration
- Multiple Output Options: Supports flexible data output methods, including RS485 Modbus, for convenient connection with different monitoring and control systems.
- Long Transmission Distance: Enables reliable signal transmission over extended distances, suitable for distributed monitoring environments.
- Protocol-Based Data Output: Provides structured data communication for seamless integration with external controllers, monitoring systems, and automation equipment.
- Easy Installation: Designed for quick and convenient installation, simplifying deployment in CO₂ monitoring and control applications.
Applications
A CO2 Gas Sensor can be used in a wide range of applications where carbon dioxide concentration needs to be monitored, controlled, or analyzed. Common application fields include:
- Greenhouses & Agriculture: Monitoring and controlling CO₂ concentration to support plant growth and improve greenhouse environmental management.
- Laboratories: Suitable for laboratory equipment and environmental monitoring systems requiring accurate CO₂ measurement.
- Food & Beverage Industry: Used for monitoring CO₂ levels during food processing, beverage production, packaging, and storage.
- Medical & Healthcare Equipment: Integrated into certain respiratory and patient-monitoring equipment where CO₂ measurement is required.
- Automotive & Transportation: Used for monitoring cabin air quality in vehicles, buses, trains, and other enclosed transportation environments.
Greenhouses & Agriculture
Laboratories
Food & Beverage Industry
Automotive
| Model | SISCO-GS-CO2-D622 |
| Operating Voltage | DC 24V±0.5V |
| Operating Current | <150mA |
| Measurement Range | 0-2000ppm, 0-5000ppm, 0-10000ppm, 0-20000ppm, 0-50000ppm (optional) |
| Accuracy | ±(50+5% FS) ppm |
| Output Mode | ModBus 485 |
| Baud Rate | 9600 |
| Operating Temperature | 0~60°C |
| Operating Humidity | 0~95% RH (non-condensing) |
| Storage Temperature | -20~80°C |
| Storage Humidity | 0~95% RH (non-condensing) |

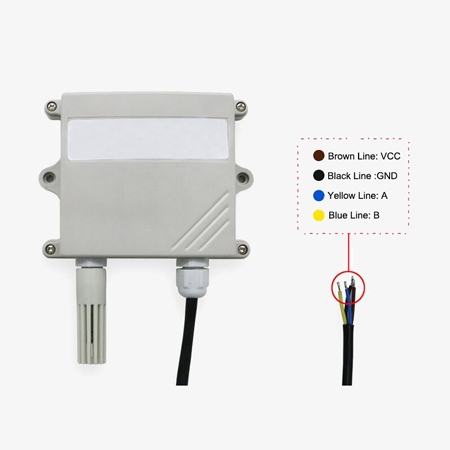

| Wiring Method |
Brown wire - VCC, Black wire - GND, Yellow wire - 485+/A, Blue wire - 485-/B |

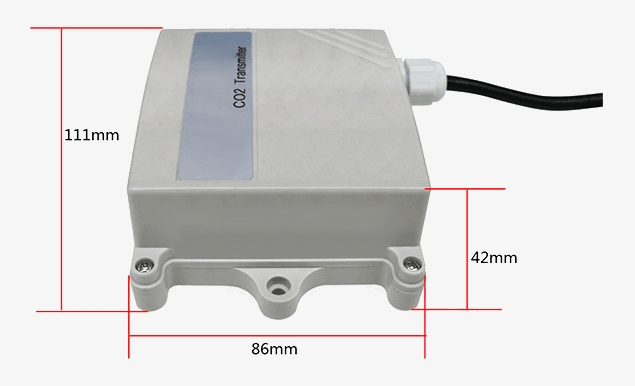

Dimension
Q1: What is a CO2 sensor?
A1: A CO2 sensor is a device used to measure the concentration of carbon dioxide in the air. It converts the detected CO₂ concentration into an electrical signal that can be displayed or processed by a monitoring or control system. CO₂ sensors are widely used in indoor air quality monitoring, HVAC systems, industrial equipment, greenhouses, and environmental monitoring.
Q2: How does a CO2 sensor work?
A2: SISCO CO₂ sensors use infrared sensing technology, particularly Non-Dispersive Infrared (NDIR) technology. The sensor measures how much infrared light is absorbed by carbon dioxide molecules in the air. The amount of infrared absorption is related to the CO₂ concentration, allowing the sensor to calculate and output a corresponding reading.
Q3: Can a CO2 sensor be integrated into an existing system?
A3: Yes. Many CO₂ sensor modules are designed for integration into larger systems and electronic equipment. Depending on the specific model, available communication or output interfaces may include UART, PWM, analog output, or other digital interfaces. Users should check the sensor's specifications to ensure electrical and communication compatibility.
Tips: What is an infrared CO₂ transmitter?
An infrared CO₂ transmitter is a device that measures the concentration of carbon dioxide (CO₂) in the air and converts the measurement into a signal for monitoring, control, or data acquisition systems. It typically uses NDIR (Non-Dispersive Infrared) technology, which detects CO₂ based on its absorption of specific infrared wavelengths.
With features such as high sensitivity, low power consumption, stable performance, wide measurement ranges, and multiple output options such as RS485 Modbus, infrared CO₂ transmitters are suitable for industrial CO₂ monitoring, HVAC systems, indoor air-quality monitoring, greenhouse applications, ventilation systems, and environmental monitoring.
