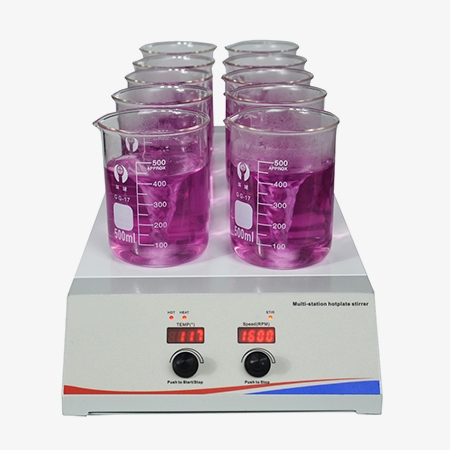

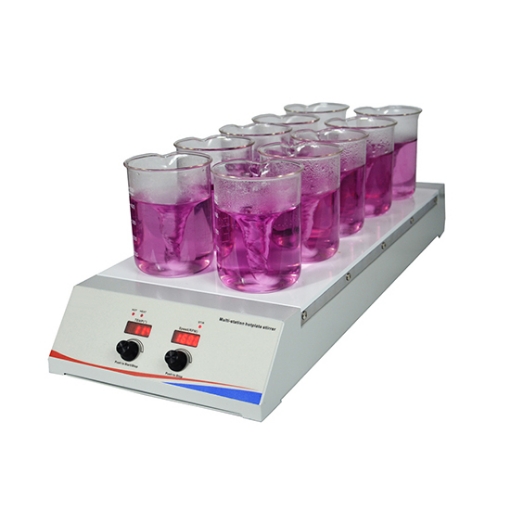

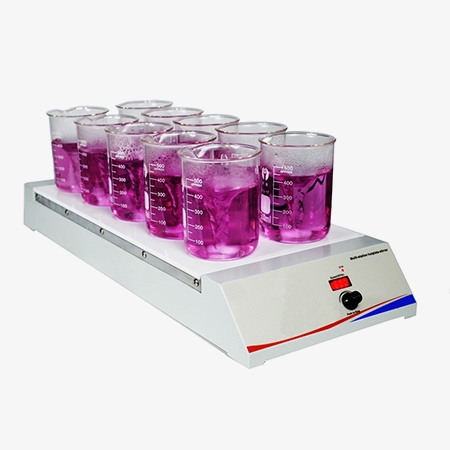

The SISCO 10-position lab magnetic stirrer sets a new standard for laboratory mixing with its outstanding performance and compact size (650×245×86mm). Built with a robust and durable structure, the heated magnetic stirrer fits seamlessly into both scientific labs and industrial production environments, offering a reliable and space-saving solution for high-efficiency stirring and heating operations.
Uniform Heating & Powerful Magnetic Force
- Even Heating Performance: This 10-position magnetic stirrer adopts advanced heating technology with built-in high-precision heating elements and an evenly distributed thermal conduction system, preventing localized overheating and protecting samples.
- Stable and Low-Noise Operation: Equipped with a brushless motor and magnetic coupling system, the lab magnetic stirrer runs smoothly without vibration or noise, even during extended operation.
- Strong Magnetic Coupling: The chemistry magnetic stirrer features high-performance magnets that generate a strong and stable magnetic field, which maintains efficient stirring even in high-viscosity liquids.
Flexible Control & Intelligent Temperature Management
- Stepless Speed Adjustment: The digital magnetic stirrer with hot plate supports stepless speed adjustment from 150~1600 rpm meets various stirring needs, from gentle mixing to intense dispersion.
- Synchronous/Asynchronous Operation Modes: This multi-position magnetic stirrer allows users to switch freely between simultaneous or independent operation of each position to match lab workflows.
- Constant Temperature Heating with Safety Protection: The integrated intelligent temperature control system maintains stable heating from ambient temperature up to 120°C with over-temperature protection for safe chemical handling.
Applications
Magnetic stirrers are widely used in scientific and industrial settings such as university labs, chemical engineering, biopharmaceuticals, and clinical laboratories. In research and education, they enable hands-free mixing for experiments and training. In chemical and pharmaceutical fields, magnetic hotplate stirrers offer precise control of temperature and speed, ideal for synthesis, titration, and reagent preparation. In clinical labs, they help maintain consistent stirring of diagnostic samples, ensuring accurate and repeatable results. These versatile tools enhance efficiency, consistency, and reliability across a range of applications.
Chemical Engineering
Biopharmaceuticals
Medical & Healthcare
University Research
| Model | SISCO-MS-HSHA-10D | |
| Number of Stirring Positions | 10 | |
| Distance Between Stirring Positions | 100mm | |
| Max. Stirring Volume per Position (H₂O) | 1L | |
| Speed Control | 1 rpm/step | |
| Speed Range | 150~1600 rpm | |
| Bidirectional Stirring (CW/CCW) | Yes | |
| Compatible Stir Bar Length | 25~35 (mm) | |
| Heating Output Power | 500W | |
| Heating Temperature Range | Room Temp. ~120°C | |
| Hot Surface Warning | LED Indicator | |
| Heating Plate Heating Rate | 5°C/min | |
| Plate Material | Ceramic-Coated Aluminum | |
| Plate Dimensions | 240 × 500 (mm) | |
| Chemical Resistance | Yes | |
| Operating Temperature | 5~40°C | |
| Operating Humidity | ≤80% RH | |
| Protection Rating | IP42 | |
| Voltage | 115V / 230V | |
| Frequency | 50Hz / 60Hz | |
| Power Consumption | 600W | |
| Dimensions (L×W×H) | 650 × 245 × 86 (mm) | |
| Weight | 8.4 kg | |
Q1: What is the working principle of a magnetic stirrer with a hot plate?
A1: A magnetic stirrer with a hot plate combines two functions: heating and stirring. The device uses a rotating magnetic field, generated by an internal motor and magnets, to spin a magnetic stir bar placed inside the liquid. This stirring ensures uniform mixing, while the hot plate underneath provides controlled heating to maintain or raise the temperature of the sample. This dual-function lab instrument is ideal for chemical reactions that require consistent temperature and homogeneous mixing.
Q2: Is a hot plate and a magnetic stirrer the same?
A2: Not exactly. A lab hot plate is designed only for heating, while a magnetic mixer is built for mixing liquids using a magnetic field. A magnetic hotplate stirrer combines both functions, allowing users to heat and stir simultaneously, which is essential for many laboratory applications like titrations, sample preparation, or chemical synthesis.
Q3: What is the difference between a magnetic stirrer and a vortex mixer?
A3: A magnetic stirrer provides gentle, continuous mixing using a magnetic stir bar inside a container, ideal for low-viscosity liquids or long-duration experiments. In contrast, a vortex mixer agitates liquids rapidly by creating a vortex motion in the container, mainly used for short bursts of high-speed mixing in test tubes or small vials. They serve different purposes depending on the mixing requirement and sample type.
Tips: When using a hot plate, which action should be avoided?
Avoid placing sealed containers directly on the hot plate. Heating a sealed container can cause pressure buildup, which may lead to explosions or breakage. Always ensure containers are vented and made of heat-resistant materials. In lab settings, using a magnetic stirrer hot plate with proper glassware and safety measures is essential to prevent accidents and ensure safe operation.
