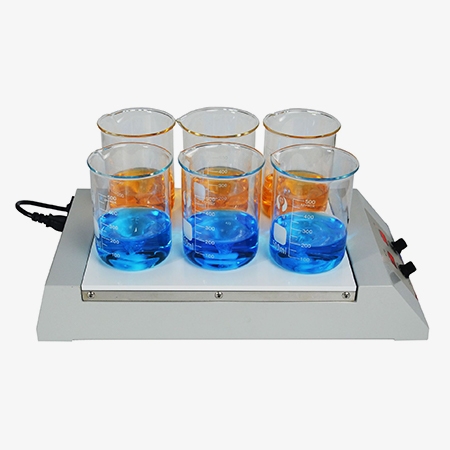

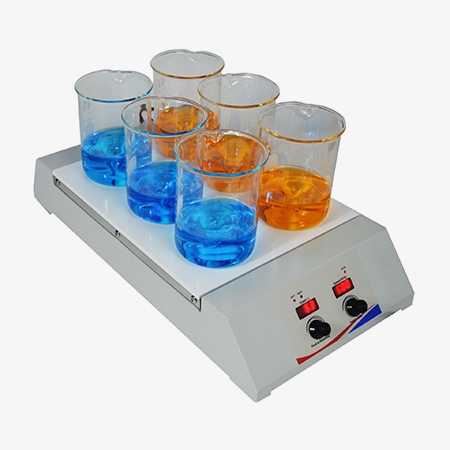

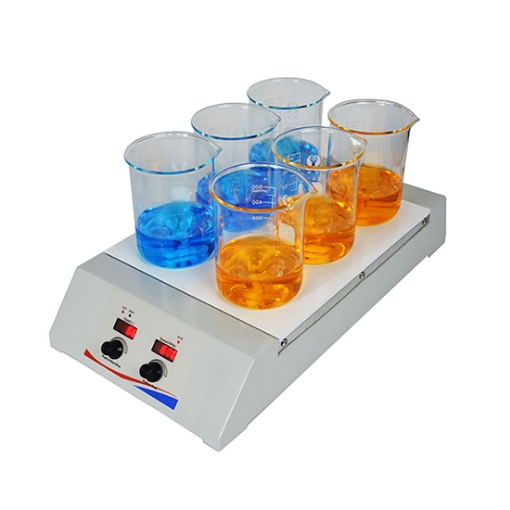

Engineered for high-throughput laboratory applications, this 6-position magnetic hotplate stirrer features individually controlled stations, each driven by a durable brushless DC motor. The heating power of each unit is adjustable within rated limits, making it especially suited for low-viscosity liquid mixing or simultaneous solid-liquid stirring. This advanced lab magnetic mixer is widely used in universities, research institutes, environmental labs, chemical industries, and biopharma R&D.
Efficient & Flexible Multi-Position Stirring System
Versatile Lab Magnetic Stirring & Heating
Magnetic stirrers are widely used in scientific and industrial settings such as university labs, chemical engineering, biopharmaceuticals, and clinical laboratories. In research and education, they enable hands-free mixing for experiments and training. In chemical and pharmaceutical fields, magnetic hotplate stirrers offer precise control of temperature and speed, ideal for synthesis, titration, and reagent preparation. In clinical labs, they help maintain consistent stirring of diagnostic samples, ensuring accurate and repeatable results. These versatile tools enhance efficiency, consistency, and reliability across a range of applications.
Â
Model | SISCO-MS-HSHA-6D | |
Number of Stirring Positions | 6 | |
Distance Between Stirring Positions | 100mm | |
Max. Stirring Volume per Position (Hâ‚‚O) | 1L | |
Speed Control | 1 rpm/step | |
Speed Range | 150~1600 rpm | |
Bidirectional Stirring (CW/CCW) | Yes | |
Compatible Stir Bar Length | 25~35 (mm) | |
Heating Output Power | 300W | |
Heating Temperature Range | Room Temp. ~120°C | |
Hot Surface Warning | LED Indicator | |
Heating Plate Heating Rate | 5°C/min | |
Plate Material | Ceramic-Coated Aluminum | |
Plate Dimensions | 240 × 300 (mm) | |
Chemical Resistance | Yes | |
Operating Temperature | 5~40°C | |
Operating Humidity | ≤80% RH | |
Protection Rating | IP42 | |
Voltage | 115V / 230V | |
Frequency | 50Hz / 60Hz | |
Power Consumption | 360W | |
Dimensions (L×W×H) | 450 × 245 × 86 (mm) | |
Weight | 5.6 kg |
Q1: What is the magnetic stirring method?
A1: The magnetic stirring method involves placing a magnetic stir bar inside a liquid-filled container and using a rotating magnetic field, generated by a magnetic stirrer, to spin the stir bar. This contact-free stirring method is widely used in laboratories for uniform mixing of solutions, especially in chemical, biological, and pharmaceutical research, where contamination must be avoided.
Q2: What is the best use of a magnetic stirrer?
A2: The best use of a magnetic stirrer is for achieving uniform mixing of low- to medium-viscosity solutions in laboratory settings. It is ideal for tasks such as buffer preparation, reagent mixing, titration, cell culture, and temperature-controlled reactions when used with a hotplate stirrer. It's sealed, contactless stirring ensures minimal contamination and consistent results.
Q3: What is RPM in magnetic stirrer?
A3: RPM (Revolutions Per Minute) in a magnetic stirrer refers to the speed at which the stir bar rotates inside the container. A typical magnetic stirrer offers a range from 150 to 1600 RPM, allowing users to adjust mixing speed based on solution viscosity or experimental requirements. Higher RPMs are used for quick dispersion, while lower RPMs are suitable for gentle stirring.
Tips: How to wash a magnetic stirrer?
To clean a lab magnetic stirrer, follow these steps:
This magnetic stirrer cleaning routine helps prolong device lifespan and ensures safe operation.
