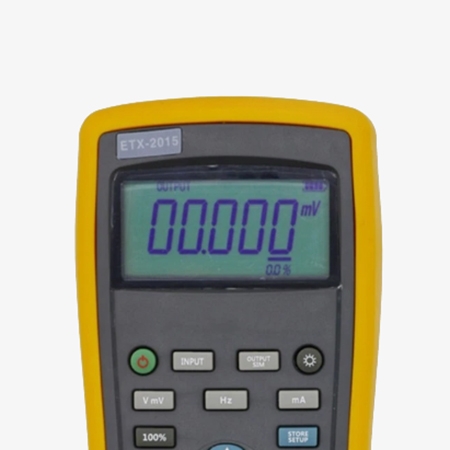

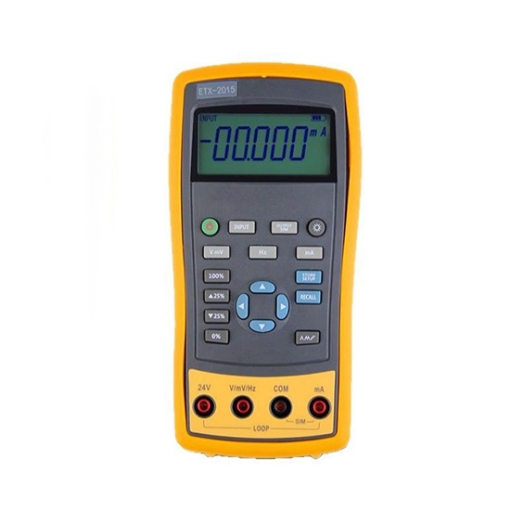

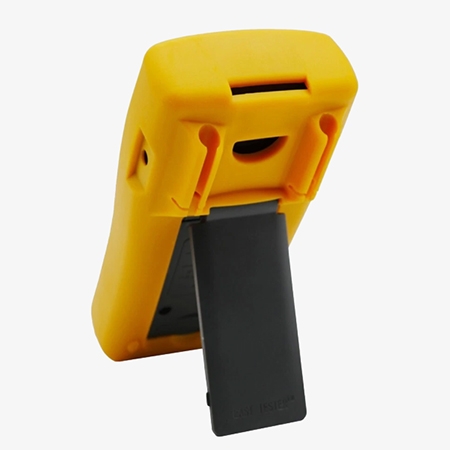

Handheld Multifunction Process Calibrator

Q1: What is a Process Calibrator?
A1: A process calibrator is a device used to test, calibrate, and troubleshoot process instrumentation such as temperature sensors, pressure transmitters, and electrical signal sources. By simulating and measuring various signals, process calibrators enable engineers and technicians to validate system performance.

Q2: What are the types of process calibrators?
A2: Multifunction Calibrators - Capable of handling multiple types of signals including voltage, current, resistance, and frequency. Temperature Calibrators - Used specifically for thermocouples and RTDs to ensure precise temperature measurements. Pressure Calibrators - Designed for testing pressure-based instruments and ensuring accuracy in fluid systems. Loop Calibrators - Primarily used for 4-20 mA control loops in industrial automation systems.

Q3: How does a process calibrator work?
A3: A process calibrator is a multifunctional test tool used in industrial settings to simulate, measure, and source various process signals to calibrate and troubleshoot instruments.

• Simulation (Sourcing Mode): The calibrator mimics a sensor or transmitter: For example, it can output a 4-20 mA signal to test a control system input. It can simulate a thermocouple or RTD to test temperature controllers.
• Measurement Mode: The calibrator measures signals coming from sensors or transmitters: It can measure the output of a 4-20 mA transmitter. Or it can read thermocouple or RTD signals to verify temperature readings.
• Loop Power Supply: Many calibrators can provide loop power (usually 24V DC) to power a 2-wire transmitter during testing—handy when you’re not connected to the control system.
• Documentation and HART/Fieldbus Communication (in advanced models): Some calibrators support automatic documentation of calibration results. Others can communicate with smart transmitters (e.g., HART protocol) to adjust or troubleshoot them.

Tips: Can the multifunction process calibrator both measure and output signals?

Yes. A multifunction process calibrator can both measure and output signals.

It typically includes two working modes:

1. Measurement Mode (Input Mode): The calibrator reads and measures signals coming from instruments such as transmitters, sensors, controllers, or PLC outputs.
Common measurable signals include:

• 4–20 mA
• mV / V
• Hz (frequency)
• Percentage (%) control signals

2. Source/Simulation Mode (Output Mode): The calibrator can generate or simulate stable output signals to test other devices. For example, it can:

• Output 4–20 mA to simulate a transmitter
• Output mV/V signals to test meters
• Generate frequency signals
• Output step or ramp signals for control loop testing

Because it supports both input and output, it is suitable for complete calibration workflows—verifying instrument accuracy and simulating process signals using one device.
