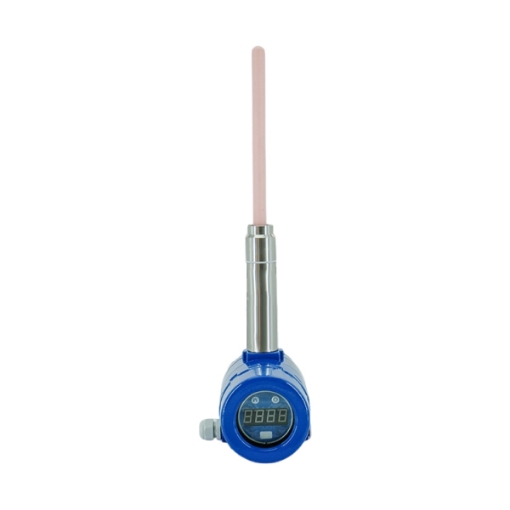

The air particulate detector can monitor industrial dust emission concentration in real time and stably, making it an ideal choice for continuous dust emission monitoring in industries such as steel, power, and cement.
Linear Detection & AC Coupling
- AC coupling technology detects the electrostatic charge induced by dust particles passing through the probe, converting the charge into a control signal output. It offers high detection sensitivity and good linearity, accurately reflecting changes in dust concentration.
- The air particulate monitor features a standard two-wire 4-20mA current output, with the output current linearly corresponding to the dust concentration (0%=4mA, 100%=20mA), eliminating the need for special transmission cables and facilitating long-distance signal transmission.
- Multiple selectable measurement ranges cover areas from 0~9mg/m³, 0~12mg/m³, and even 0~1000mg/m³, with a nominal dust particle size measurement range of 0.1μm-200μm, adapting to dust detection needs of different concentrations and particle sizes.
Isokinetic Sampling with Three Baselines
- Isokinetic sampling testing and calibration allow setting three baselines: normal operation, alarm, and excessive emission. Accurate calculation of dust emission concentration is achieved through the K conversion factor.

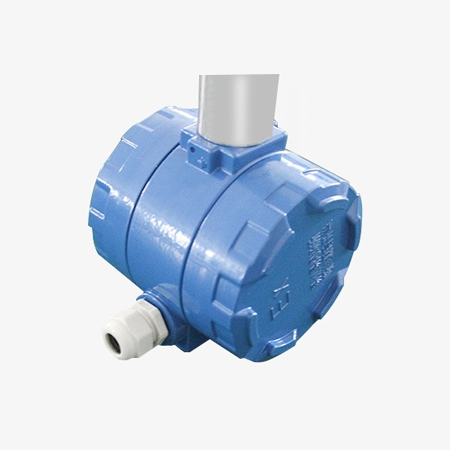

- The particulate matter monitoring equipment uses an aluminum alloy housing and a stainless steel probe, ensuring stable operation in non-corrosive environments and resisting certain vibrations and electromagnetic interference.
- The particulate monitor can work stably in a variety of harsh industrial environments, with a protection level of IP66/NEMA4, and has good dustproof, waterproof, and vibration resistance.
Applications
The SISCO air quality monitor is suitable for various environments, including offices, factory workshops, schools, hospitals, rooms, and classrooms. It provides accurate and reliable data on noise levels and airborne dust particles, helping you maintain a healthier and more comfortable indoor atmosphere. Whether used for occupational safety, environmental monitoring, or personal well-being, this device ensures you stay informed about air and sound quality in real time.
School
Factory Workshop
Hospital
Office
Â
| Model | SISCO-PMM-JCFDQ |
| Operating Environment Vibration | Maximum continuous oscillation volume, any direction, any frequency: root mean square value 2g (20m/ s2) |
| Operating Environment Electromagnetic Field | Maximum value = 60 A/m at 50 Hz(equal to amagnetic field of 50AT in a 1 m 1 m squareelectromagnetic coil) |
| Operation Environment Protection | Protection grade: IP66/ NEMA4 aluminum alloy shell, suitable for installation in a non-corrosive environment, stainless steel probe |
| Pipeline Gas Pressure | -0.1 ~1MPa |
| Pipeline Gas Flow Rate | 1m/s~30m/s |
| Pipeline Fas Temperature | -50℃~450℃ |
| Pipe Outer Diameter | 0.1m~4 m |
| Probe Structure | The standard probe is M6 with a length of 160mm 316 stainless steel stick. |
| Dust Particle Size Range | Nominal 0.1 μ M~200 μ M, still receive outside the nominal range, but with signal characteristics. |
| Zero Drift | (Time) is below 1% of the range per year. |
| Zero Drift | (Temperature) within the specified temperature range, below 1% of the range. |
| Full Range Drift | (Time) is below 1% of the range per year. |
| Full Range Drift | (Temperature) within the specified temperature range, below 1% of the range. |
| Line Stability | High-stability electronic assembly is selected for all components of the system. |
| Noise Resistance | All 50 or 60 Hz audio and harmonics are filtered out before the signal is received |
| Measuring Range | 0~9/12/25/50/100/200/400/800/1000mg/M3 |
| Transmitter Power Supply | DC 15V~32V |
| Operating Environment Temperature | -20℃ to 60℃(electronic components) |
| Operating Environment Humidity | 90% |
Q1: What air quality monitor?
A1: Air quality monitor is a product that can detect formaldehyde, PM2.5, TVOC and temperature and humidity in real-time, small and exquisite, easy to carry. Through its internal original imported sensor, it can accurately measure the pollutant concentration and calculate the air quality index AQI, and alarm when the concentration exceeds the standard.
Q2: How does an air quality monitor work?
A2: Air quality monitors are equipped with several sensors to detect different types of pollutants. Electrochemical sensors detect oxygen levels and the presence of toxic gases by reducing oxygen through electrodes and measuring its concentration. Particle detectors detect dust, pollen and mold by passing a laser through the air inside the sensor. Based on the intensity and array of light beams, the monitor can determine the concentration of particles in your home. The monitor displays the current air condition of the indoor space. Some have color coding or numbering systems to indicate hazard levels.
Q3: What is an air quality monitor used for?
A3: The air quality detector can be used to detect various harmful substances such as PM2.5/HCHO/TVOC/AQI/PM1.0/PM10, and can also test indoor air quality such as humidity and temperature. If the indoor air quality is poor and there are many harmful substances, an obvious prompt will be given, and it is recommended that you start to purify the air. At the same time, many air detectors are gradually becoming more intelligent, which can be remotely observed and controlled by mobile phones, which is more convenient.
- Tips: Sampling and Air Path Details of the Particulate Matter Monitor
Bend Angles Change Particle Size Distribution. A 90° bend causes large particles to "disappear" due to inertial settling, leading to an underestimation of PM10. - Isovelocity Sampling is More Important Than Location (Industrial Scenarios). In flues or ducts, if the sampling flow rate does not match the main airflow, significant particle size deviations will occur.
- Sampling Tubes "Collect Dust".Electrostatic adsorption and internal wall roughness can cause ultrafine particles to remain trapped for extended periods, especially in flexible plastic tubes.
- Built-in Fan ≠Stable Flow Rate. After the fan ages, PM readings may "appear normal," but the actual sampling volume has changed.
