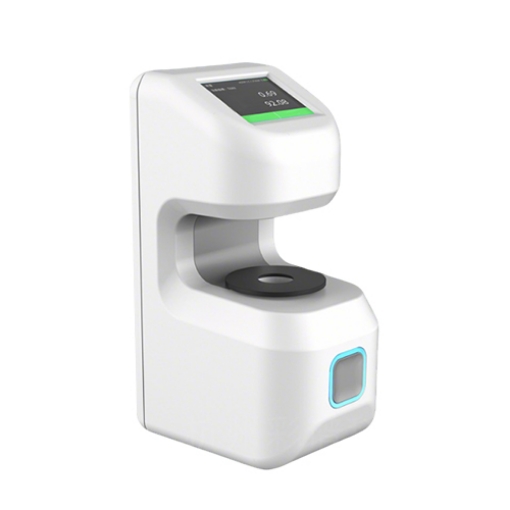

The handheld haze meter has a measurement range of 0-100%, offers extensive data storage, and a repeatability of ≤0.02. Powered by a lithium battery, it is compact and portable. The dual-optical design features a 2.8-inch touchscreen and can be operated. The digital haze meter can test the haze and transmittance of transparent and translucent materials.

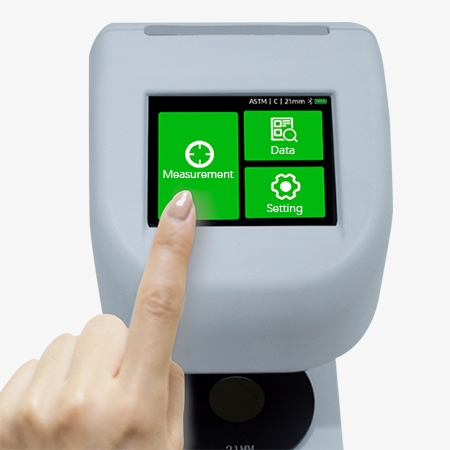

2.8-inch touchscreen operation, 3 light sources
- The digital haze meter comes with a 2.8-inch touchscreen operation, simplifying parameter setup, data viewing, and calibration. Users can complete operations directly through touch.
- The portable haze meter includes 3 light sources, allowing it to measure haze and transmittance according to different standards. It is suitable for testing the haze and transmittance of transparent materials such as plastics, glass, LCD panels, automotive glass, and packaging film.
- The haze range and transmittance are (0-100%). Aperture sizes: 21mm, 15mm, and 12mm, with magnetic switching for convenient haze measurement of different sample types.
- The handheld haze meter can perform periodic self-tests in standby mode.

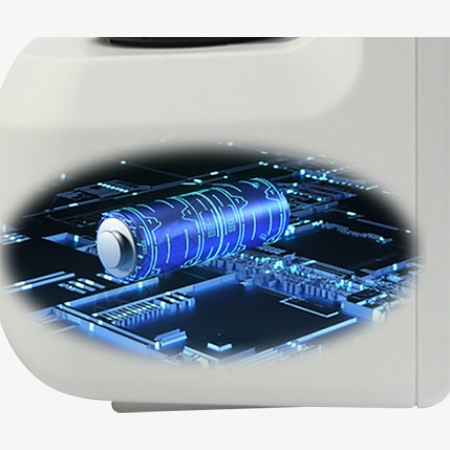

Powered by a lithium battery, dual optical path design
- The lithium battery-powered haze meter combines portability with efficient measurement, making it suitable for a variety of industrial scenarios.
- This portable haze meter is smaller and more convenient to carry, making it convenient for testing haze and transmittance. The high-precision display resolution is 0.01, with a repeatability of ≤0.02.
- The portable haze meter's dual-optical design utilizes real-time energy monitoring and dynamic compensation, making it particularly suitable for long-term continuous testing or high-precision applications, reducing errors caused by local sample variations.
- The digital haze meter is network-connected, and data is stored in the cloud.

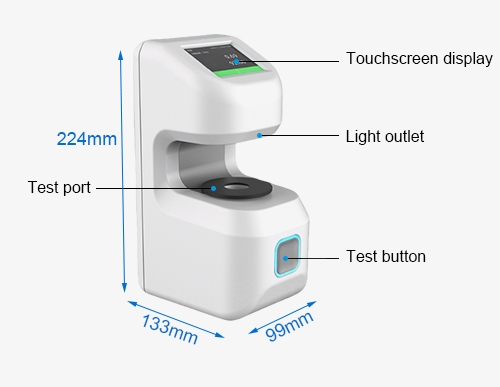

Portable Haze meter Size

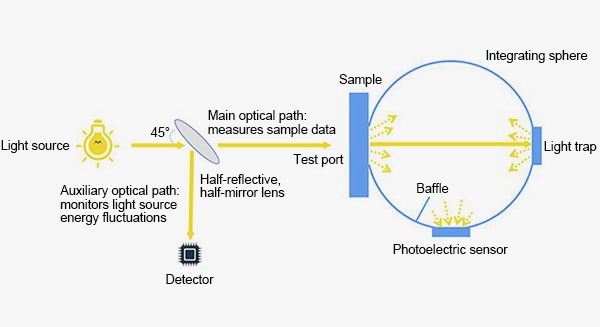

Dual-optical Design
Application
A haze meter is an instrument used to accurately measure the optical properties of transparent and translucent materials. It is used to quantify the haze (the degree of light scattering) and transmittance (the efficiency of light transmission) of materials, such as soft films, glass, LCD panels, and flexible display materials.
Plastics
Tempered Glasses
Soft Films
Glasses
| Model | SISCO-HZ-DH-10 | SISCO-HZ-DH-12 | SISCO-HZ-DH-13 |
| Light Source | CIE-A, CIE-C, CIE-D65 | ||
| Standards | ASTM D1003/D1044, ISO13468/ ISO14782 | ||
| Parameters | ASTM-haze/transmittance | ASTM & ISO-haze/transmittance | |
| Spectral Response | CIE Luminosity function Y/V (λ) | ||
| Geometry | 0/d | ||
| Tset Aperture Size | 21mm | 21mm, 15mm | 21mm, 15mm, 12mm |
| Measurement Range | 0-100% | ||
| Resolution | 0.1% | 0.01% | |
| Haze Repeatability | 0.1 | 0.05 | 0.02 |
| Sample Size | Thickness ≤40mm | ||
| Display | 2.8 inches touch screen | ||
| Memory | Mass storage | ||
| Interface | USB | ||
| Power | DC 5V/2A | Rechargeable Lithium Battery | |
| Working Temperature | 5 ~ 40 ℃ (40 ~ 104 °F) | ||
| Storage Temperature | -20 ~ 45 ℃ (-4 ~ 113 °F) | ||
| Size (L x W x H) | 133 x 99 x 224 mm (length x width x height) | ||
| Instrument Weight | 1.13kg | 1.25kg | |
| Standard Accessory | Free PC software | ||
Portable Haze Meter User ManualQ1: What is a haze meter?
A1: A haze meter is a specialized instrument used to measure the optical properties of transparent or translucent materials, primarily quantifying the material's haze and transmittance. A haze meter features a dual optical path design, compatibility with multiple standards, and a diverse light source.
Q2: How does a haze meter work?
A2: The instrument has a built-in stable light source, emitting a beam of parallel light. This beam passes through the material being measured (such as plastic film or glass), where some of the light is absorbed. The remaining light undergoes two variations: direct light and scattered light. After spectrophotometry, the haze meter's chip automatically processes the data and displays the results within 1 second.
Q3: How to use a haze meter?
A3: After warming up, calibrate the haze meter. Cut the sample to ≥50mm x 50mm and clean the surface. Thin film samples should be flattened. Then, completely cover the measurement aperture with the sample. Press the "Measure" button. The haze and transmittance values will be displayed within 1-3 seconds. Record the data, repeat the measurement 3-5 times, and average the values. Export the data via USB or record them manually.
Tips: How to calibrate a haze meter?
- Mechanical calibration: Use a level to adjust the haze meter base, ensuring the tilt angle is ≤0.1° to prevent optical path deviation. Check the seal of the sample compartment door.
- Zero calibration: Close the sample compartment (without any sample) and perform the haze meter's self-test procedure, requiring the measured light intensity to be ≤0.01% (ISO standard). If the value exceeds the tolerance, clean the light port or check the light source stability.
- Standard plate calibration: Place a 0% haze standard plate in the sample compartment, start the calibration procedure, and adjust the haze meter until the displayed haze value is 0 ± 0.1%. Replace the haze standard plate with a medium or high value (e.g., 10%, 30%) to verify linearity.
