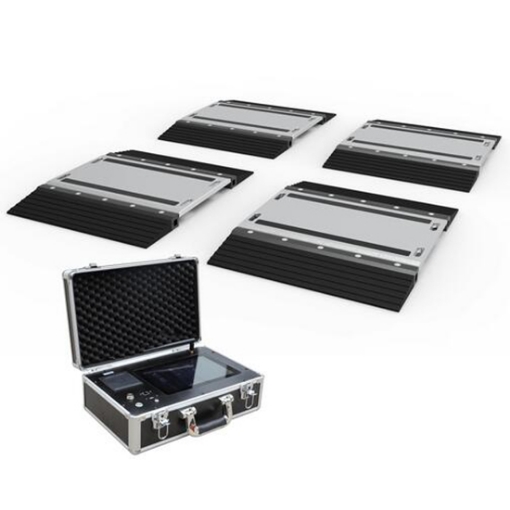

The SISCO axle weighing scale is composed of weighing pads and indicator. The weighing pads can be equipped with a variety of display instruments, wired and wireless, with push-button screen and touch screen, and the interface is easy to operate. The axle weight scale has advantages of light weight, easy to carry, high precision and good repeatability.
The Single-Board Pad is Lightweight and Easy to Carry
- Lightweight Single Pads: Each weighing pad is designed with a compact, lightweight structure, making it easy to carry and deploy in the field without heavy lifting equipment.
- Portable & Easy to Transport: The slim, low-profile design and built-in handles allow operators to quickly move and set up the scale at different locations, ideal for mobile weighing operations.
- Durable Aluminum Alloy Construction: The weighing pads are made of high-strength aluminum alloy, offering both light weight and excellent durability for long-term outdoor use.
- Quick Setup & Operation: The scale can be easily placed on any flat surface, requiring no foundation or complex installation, simply connect and start weighing.
- Compact Storage Design: When not in use, the pads can be stacked or stored in a carrying case, saving space and improving work efficiency.
Large Touchscreen Display and Rugged Aluminum Case Design
- Rugged Aluminum Case Design: The scale is housed in a durable aluminum alloy case with reinforced corners, offering excellent protection and easy transportation. Its compact design allows for quick setup and reliable operation in the field.
- Large Touchscreen Display: Equipped with a high-definition touchscreen for intuitive operation, the display shows axle weights, total vehicle weight, and measurement records in real time.
- Built-in Data Storage and USB Interface: Features onboard data storage and USB ports for easy data transfer, enabling users to download weight records and reports conveniently.
- Shockproof and Waterproof Protection: The system adopts a shockproof design with a protective foam lining inside the case, providing reliable operation even in harsh outdoor environments.
Applications
SISCO weighing indicators are widely used for accurate weight measurement in various industries. They are essential in warehouses for inventory management, in supermarkets for weighing products and pricing, in logistics and transportation to prevent overloading, and at ports for weighing containers and ensuring safe cargo handling. These devices enhance efficiency and precision across these applications.
Logistics and Transportation
Warehouse
Wharf
Supermarket
Â
| Model | SISCO-WI-GPWA08-500 | SISCO-WI-GPWA08-720 | |
| Weighing Pad Specs | |||
| Pad Size | 500*400*58 mm | 720*450*58 mm | |
| Slope Size | 500*180*45 mm | 720*180*45 mm | |
| Single Pad Maximum Range | 1-10t | 2-20t | |
| Precision | Static：0.1%~0.3% | ||
| Load Cell | There are four or six spoke type sensor at the bottom | ||
| Safety Overload Range | 120% | ||
| Battery | Rechargeable lithium battery, 3.7V/4000 mAh | ||
| Portable Axle Scale | |||
| Specifcation | Dynamic and dynamic static measurement, 1 drag 2 can be realized; | ||
| Static measurement, 1 drag 4 to 1 drag 16 platforms; | |||
| 10.1 inch touch color screen; | |||
| Instrument and platform wireless transmission distance: 15 meters; | |||
| Working temperature: -20 ~ 80℃; | |||
| Data output: RS232 and USB; | |||
| Printer: built-in pin type high-speed energy-saving printer; | |||
| The meter can store 50,000 vehicle weighing information. | |||
| Index value: 5, 10, 20kg optional; | |||
Portable Truck Axle Scale User ManualQ1: What is a weighing indicator?
A1: A weighing indicator is a device used in conjunction with weighing scales or load cells to display and process weight measurements. It receives electrical signals from the load cells, converts them into readable weight values, and displays the information on a screen. Depending on the model, weighing indicators can offer additional features like data storage, connectivity for data transfer, and advanced weighing functions such as tare, counting, and totalizing. They are commonly used in various industries, including logistics, warehousing, retail, manufacturing, and more, to ensure accurate weight readings and efficient process management.
Q2: Can weighing indicators be used with different types of scales?
A2: Weighing indicators can be used with a variety of scales, making them versatile tools in numerous industries. They are compatible with different types of scales, such as platform scales for heavy-duty industrial use, bench scales for smaller applications like retail or laboratories, floor scales for bulk weighing in warehouses, and weighbridges for weighing large vehicles in logistics and transportation. Additionally, they can be used with hopper and tank scales in manufacturing and crane scales for suspended loads in construction or shipping. This flexibility allows Weighing Indicators to meet diverse weighing needs across multiple sectors.
Q3: How do weighing indicators communicate with other devices?
A3: Many weighing indicators support communication protocols like RS232, RS485, Ethernet, USB, or wireless options. This allows them to connect to computers, printers, or control systems for data logging or remote monitoring.
Tips: What is a portable truck axle scale used for?
A portable truck axle scale is used to measure the weight of a vehicle’s axles or total load directly in the field or at temporary weighing sites. It helps ensure that trucks and other heavy vehicles comply with road weight regulations, prevent overloading, and maintain safe and efficient transportation operations. These scales are commonly used in logistics, construction, mining, agriculture, and transport enforcement for quick, accurate, and convenient on-site weighing.
