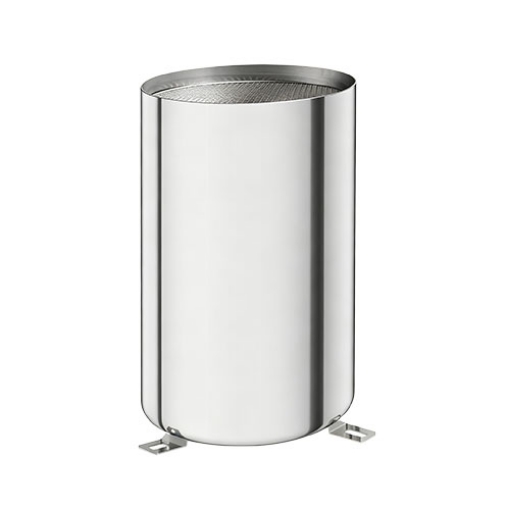

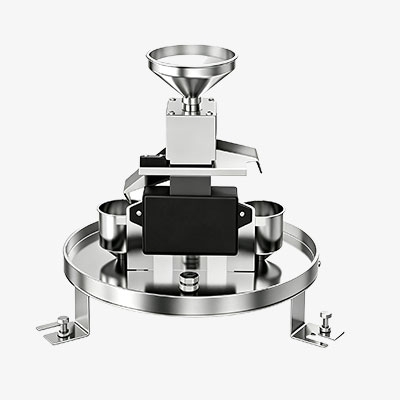

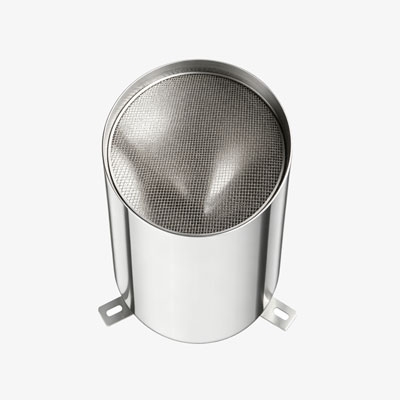

SISCO stainless steel tipping bucket rain sensor features a 200mm diameter orifice with 40°-45° sharp-edged rim. Hard-alloy bearings reduce friction for extended durability. Dual reed switches ensure stable signal output under varied rainfall intensities. All exposed components utilize corrosion-resistant stainless steel construction.
Multi-Resolution Selectable for Varied Accuracy Demands
- 0.1mm resolution captures fine precipitation events, suitable for applications requiring high-granularity data.
- 0.2mm default balances accuracy and data load, ideal for general hydrological monitoring.
- 0.5mm resolution reduces data transmission frequency, suitable for long-term unattended operation.
- Field-configurable design eliminates factory recalibration; users can adjust via simple settings.
Three Output Options for Broad System Compatibility
- RS485 Modbus-RTU offers digital output for direct connection to PLCs, IoT gateways, and SCADA systems.
- Analog output delivers a 4- 20 mA or 0-10V signal for traditional industrial controllers and remote terminal units.
- Pulse output provides standard reed switch closure for retrofitting older counting instruments or wireless transmitters.
- No signal converter needed eliminates external conversion modules, reducing system cost and wiring complexity.
Applications
SISCO stainless steel tipping bucket rain sensor is widely used for liquid precipitation measurement in meteorological observation networks, hydrological monitoring stations, agricultural irrigation scheduling, and urban drainage early warning systems.
Agriculture And Forestry
Field Observation

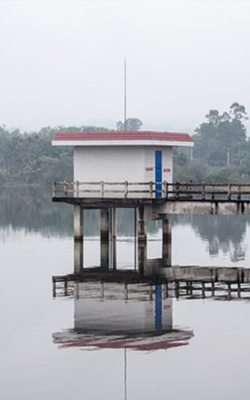

Hydrological Station

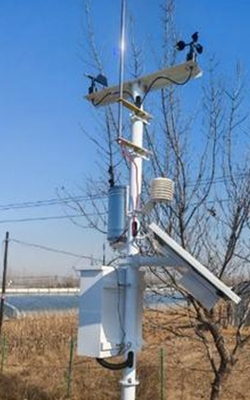

Weather Station
| Model | SISCO-RS-3005 |
| Collection Orifice Diameter | Φ200mm |
| Rim Sharp Angle | 40°~45° |
| Resolution | 0.1mm / 0.2mm / 0.5mm (optional) |
| Measurement Accuracy | ≤±4% (based on the instrument's own displacement) |
| Rainfall Intensity Range | 0~4mm/min (max allowable 8mm/min) |
| Output Signal | RS485 (Modbus-RTU) / Analog / Pulse (optional) |
| Power Supply | 4.5~30V DC |
| Max Power Consumption | 0.24W |
| Operating Temperature | 0~55°C |
| Operating Humidity | <95% (at 40°C) |
| Material | Stainless steel |
| Bearing | Hard alloy |
| Dimension | 330mm x 367mm |
| Weight | 1000g |

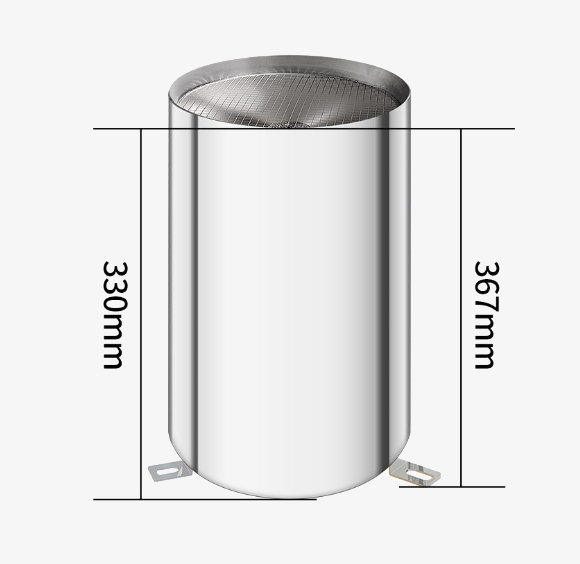

Dimensions (unit: mm)
Q1: What is the accuracy of this stainless steel tipping bucket rain sensor?
A1: The measurement accuracy is ≤±4% based on indoor artificial precipitation tests using the instrument's own displacement as a reference. This ensures reliable data collection for most meteorological and hydrological applications.
Q2: How do I choose between 0.1mm, 0.2 mm, and 0.5mm resolution for this rain sensor?
A2: 0.1mm resolution captures fine precipitation events for high-precision monitoring; 0.2mm is the default setting balancing accuracy and data load for general use; 0.5mm reduces data transmission frequency, ideal for long-term unattended operation.
Q3: What output signals does this stainless steel tipping bucket rain sensor support?
A3: This sensor is available with three output options: RS485 (Modbus-RTU) for digital system integration, analog (4-20mA or 0-10V) for traditional controllers, and pulse for retrofitting older counting instruments. You can select the appropriate version based on your existing data acquisition system.
Tips: How to ensure measurement accuracy of your stainless steel tipping bucket rain sensor?
Proper installation and regular maintenance are key to keeping your sensor performing at its best. Follow these tips:
- Level the sensor carefully. Use the built-in bubble level and adjust the three support nuts until the bubble is perfectly centered. Even a slight tilt can cause measurement errors.
- Keep the collecting funnel clean. Remove leaves, dust, or debris from the funnel and filter screen regularly. A clogged inlet prevents water from entering the tipping bucket and causes data loss.
- Clean the tipping bucket gently. Rinse the bucket interior with clean water or brush lightly with a lint-free brush. Never use your fingers or hard objects to scrub the inner surface, as this may affect the bucket's balance and measurement precision.
