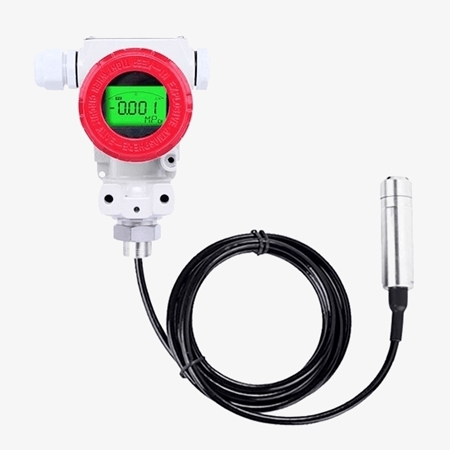

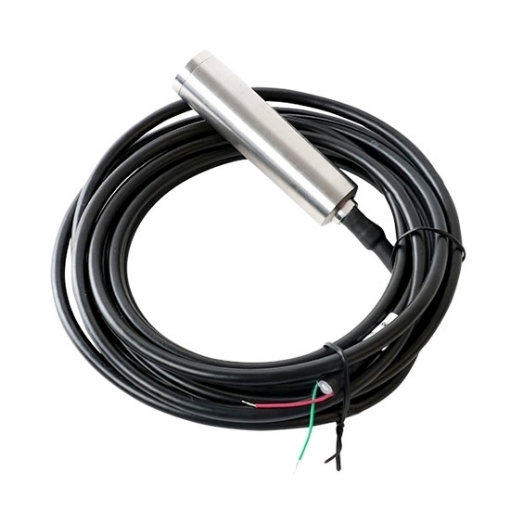

SISCO submersible level sensor is a hydrostatic liquid level measurement device with a 304 stainless steel housing, wide 0–200 m measuring range, ±0.3%FS/±0.5%FS accuracy, and 4–20 mA/0–5 V/RS485 outputs, designed for continuous water, oil, fuel, reservoir, tank, well, and industrial liquid level monitoring.
Wide Measuring Range up to 200m for Various Liquid Level Measurement
- The submersible level transmitter supports a measuring range of 0–200m, providing accurate and reliable liquid level measurement for water tanks, reservoirs, groundwater monitoring, and industrial applications.
- With optional accuracy levels of 0.5%FS and 0.3%FS, this hydrostatic level transmitter delivers stable and precise measurement results, meeting the requirements of water conservancy, oil, and industrial liquid level monitoring systems.
- The SISCO submersible level sensor supports multiple output options, including 4–20 mA, 0–5V, 0–10V analog outputs, and RS485 digital communication, enabling seamless integration with PLC systems, data acquisition equipment, industrial control systems, and remote monitoring platforms.
Reliable Water Level Monitoring for Multiple Application
- The 304 stainless steel submersible level transmitter is designed for accurate and continuous liquid level monitoring, offering reliable operation in groundwater wells, water reservoirs, storage tanks, and industrial liquid measurement applications.
- Based on hydrostatic pressure measurement technology, the submersible water level sensor provides continuous and stable liquid level monitoring with excellent repeatability and long service life.
- Designed for continuous water level measurement, this water level transmitter is widely used in oil fields, water conservancy projects, urban water supply systems, groundwater level monitoring, reservoirs, and storage tanks.
Applications
The SISCO submersible level transmitter is widely applied in water resource management and industrial liquid measurement, including agricultural irrigation, dams, hydroelectric power stations, water tanks, reservoirs, groundwater wells, and wastewater treatment plants. It helps users achieve real-time and accurate liquid level monitoring with reliable performance.
Dam
Hydroelectric Power Station
Water Tank
Agricultural Irrigation
| Model | SISCO-LEVS-P260 | SISCO-LEVS-P261 | SISCO-LEVS-PX261 |
| Shipping Weight | 2.5kg | 4kg | 4kg |
| Measuring Range * | 0-100m (0-1m, 0-3m, 0-5m, 0-7m, 0-10m, 0-12m, 0-15m, 0-20m, 0-30m, 0-50m, other customizable range) | ||
| Accuracy * | 0.5%FS, 0.3%FS | ||
| Output Signal * | 2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485 |
||
| Power Supply * | DC 24V, DC 12V, DC 9-36V | ||
| Overload Pressure | 200%FS | ||
| Medium | Water, oil, fuel, or other liquid compatible with 304 stainless steel | ||
| Medium Temperature | 0~+60℃ (30~140℉) | ||
| Material | Diaphragm: 316L stainless steel Housing: 4mm thickness 304 stainless steel (anti-corrosion housing can be customizable), polyurethane rubber cable |
||
| Probe Size | Φ26.5mm, length 105mm | ||
| Cable Length | The default cable length is the same as maximum value of measuring range, and the minimum cable length is 5m. | ||
| Cable Type * | Waterproof cable, metal tube, metallic hose | ||
| Connection * | Direct lead wire | Protection head | Protection head with LCD display |
| Wiring | 2-wire: Red (V+), Green (output signal) 3-wire: Red (V+), Green (V-), Yellow (output signal) |
See the wiring diagram below | See the wiring diagram below |
| Protection class | IP68 | ||
| Warranty | 12 months | ||

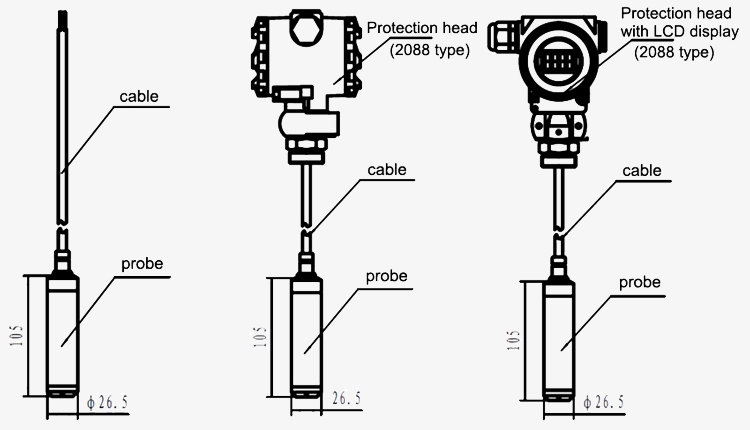

Probe Dimension (unit: mm)

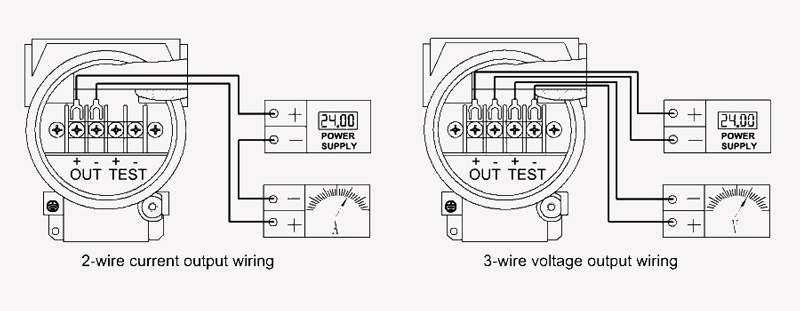

Wiring Diagram

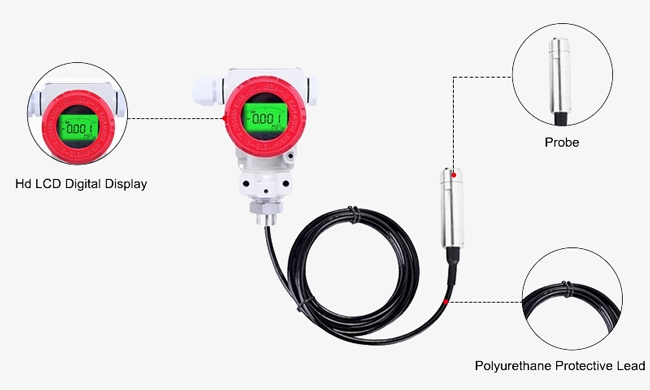

Details
Q1: What is a submersible level transmitter?
A1: A submersible level transmitter is a liquid level measurement device designed to be immersed directly into a tank, well, reservoir, or other liquid environment. It measures liquid level by detecting hydrostatic pressure and converts the pressure signal into an electrical output, such as 4-20mA or RS485, for monitoring and control systems.
Q2: How does a submersible level transmitter work?
A2: A submersible level transmitter works based on hydrostatic pressure measurement. As the liquid level increases, the pressure at the bottom of the liquid column also increases. The transmitter measures this pressure change and converts it into a proportional electrical signal that represents the liquid level.
Q3: How to choose the right submersible level transmitter?
A3: When selecting a submersible level transmitter, consider factors such as measuring range, cable length, output signal, accuracy, liquid type, and installation conditions. Models with 4-20mA output are commonly used in industrial control systems, while RS485 versions are suitable for digital communication and remote monitoring applications.
Tips: What is the measuring range of the submersible level transmitter?
The SISCO Submersible Level Transmitter supports measuring ranges from 0–1 m to 0–200 m, making it suitable for different liquid level measurement applications, including deep wells,
reservoirs, water tanks, dams, and industrial liquid storage. The 0–200 m range is designed for deep-level monitoring and can provide continuous and reliable liquid level measurement.
