An ultraviolet (UV) light tester is a handheld or portable instrument designed to detect, measure, or visualize ultraviolet radiation. It typically senses UV light across specific wavelengths such as UVA and UVB. Portable UV tester is usually battery-powered, lightweight, and easy to operate, making them suitable for both professional and everyday use.

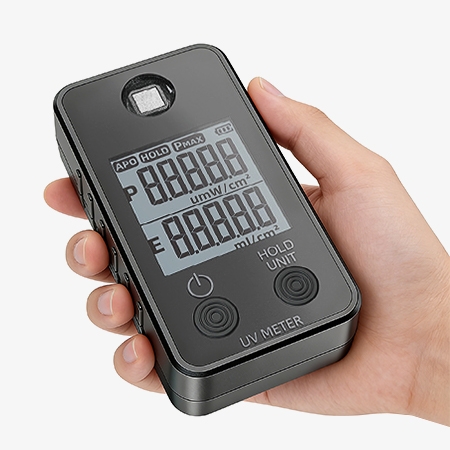

Lightweight and Convenient to Hold
- High Portability. A compact UV radiation meter is lightweight and easy to carry, allowing users to transport it effortlessly between job sites, laboratories, or field locations. It fits comfortably in a toolbox, backpack, or even a pocket.
- Convenience for On-Site Inspections. Technicians, inspectors, and maintenance personnel benefit from its portability when performing quick on-site checks, reducing the need for bulky equipment.
- User-Friendly Operation. Handheld UV tester is designed for simplicity, often requiring minimal training. Users can easily switch the device on, and interpret results quickly, making it accessible to professionals and non-specialists alike.

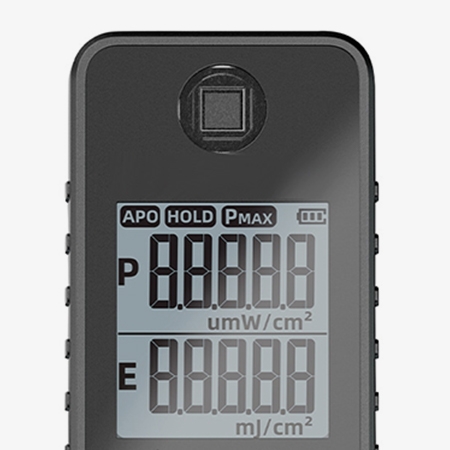

UV Light Meter Adopts LCD Display
- Clear and Precise Readings. The LCD display provides accurate, easy-to-read numerical results, eliminating the guesswork often associated with analog or simple UV indicators. Users can quickly interpret readings without relying on subjective judgment, which is particularly valuable in professional environments where precision matters.
- Durability and Reliability. Modern LCD is designed to withstand frequent use, providing reliable performance over time. This ensures the UV energy meter long-term durability in diverse working environments.
Application
SISCO UV meter is commonly used across various industries to measure ultraviolet (UV) light intensity. Key applications include monitoring and controlling UV curing processes in manufacturing, ensuring proper UV sterilization in water treatment and healthcare, and assessing UV exposure levels in environmental testing and research. These meters are crucial for maintaining product quality, safety, and compliance with industry standards in sectors such as printing, electronics, pharmaceuticals, and environmental science.
Health and Safety

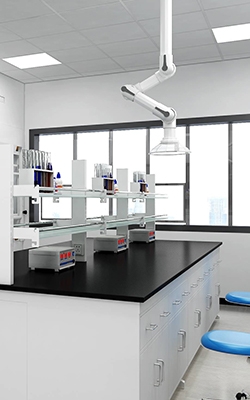

Laboratory
Industrial
Environmental Monitoring
| Model | SISCO-UVM-8203 |
| Intensity Measurement Range | 10μW~9999μW/cm², 1mW~30W/cm² |
| Energy Measurement | 0~99999mJ/cm² |
| UV Wavelength Range | 290~390nm (UVA/UVB) |
| Intensity/Energy Accuracy | ±10%+10 digits |
| Peak Wavelength | λP: 310nm |
| Sensor | Digital sensor |
| Sampling Rate | 4 times/second |
| Angle of Incidence | 100° |
| Environment | -10 ℃~50 ℃, max 80%RH, altitude＜2000 meters |
| Power Supply | 2*1.5V AAA |
| Dimension | 100*55*26mm |
| Weight | About 70g |

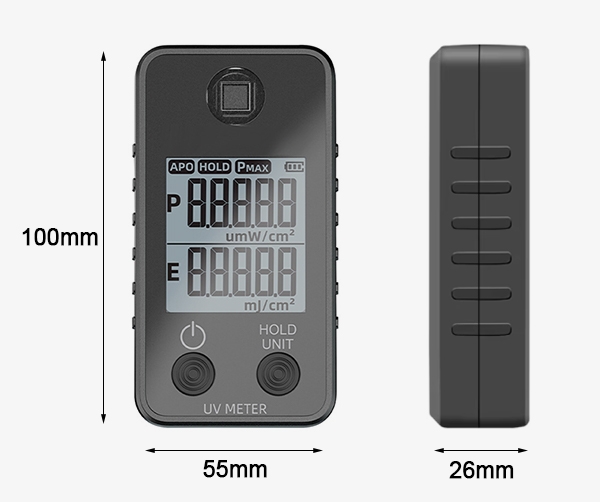

Dimension:
Q1: What is a UV Meter?
A1: A UV meter is a device that measures the intensity of ultraviolet (UV) light, often across different wavelengths like UVA and UVB.
Q2: What is ultraviolet light tester used for?
A2: The printing industry used to monitor the energy output during UV curing to ensure the quality of printed products. The medical industry uses energy monitoring of ultraviolet disinfection equipment to ensure disinfection effectiveness. Laboratory research, used for ultraviolet energy measurement and research in optics, chemistry, and other fields.
Q3: Can a UV Meter measure UV radiation from sunlight?
A3: Yes, a UV tester can measure UV radiation from sunlight. It's commonly used in environmental monitoring to assess the levels of UVA and UVB radiation, which are the types of UV light that reach the Earth's surface. This information is crucial for understanding UV exposure risks, studying environmental impacts, and ensuring public safety.
Tips: How is this ultraviolet light tester powered?
This ultraviolet light tester is powered by three AAA batteries, making it portable and convenient for everyday use. You don’t need to worry about cords or charging, as the batteries provide reliable energy for consistent performance. Simply insert the three AAA batteries, and the tester is ready to detect UV light efficiently.
