The digital uv meter consists of a main unit and a probe, and a variety of aluminum probes are available to suit different needs. It communicates via USB or RS48. With a response speed of 2048 times/second and a screen refresh rate of 10 times/second, uv tester is widely used for UV detection in plant cultivation, water treatment, meteorology, and agricultural production.
4.3-inch high-definition touchscreen design, continuous statistics for each data set
- The ultraviolet meter equipped with a 4.3-inch high-definition capacitive screen with a touchscreen design for easier operation and a more intuitive display.
- The uv light tester uses a high-precision light receptor, allowing for both low-light and high-light testing with a single device.
- It has an extended range, with a range change of up to 1 billion. The uv light intensity meter monitors irradiance and temperature in real time and provides an out-of-limit alarm.
- It has intelligent range selection, allowing uv light measurement device to automatically switch ranges based on light source intensity.
Real-time UV light measurement, PC software for report generation
- Come with a built-in high-precision temperature sensor for real-time uv light measurement during dynamic testing. Ultraviolet radiometer offers multiple uses, allowing the same radiometer to be used with different light receptors depending on the light source.
- With a built-in timer for accurate measurement time recording, uv tester can store 30 sets of test data, which can be accessed and exported via PC software for report generation.
- The UV intensity meter continuously calculates the maximum, minimum, average, and uniformity of each set of irradiance or energy data. The meter consists of a main unit and a probe, and a variety of aluminum probes are available to suit different needs.
- It communicates via USB or RS48. With a response speed of 2048 times/second and a screen refresh rate of 10 times/second, uv tester is widely used for UV detection in plant cultivation, water treatment, meteorology, and agricultural production.
Application
UV light meters can be used in different UV detection applications in life, such as in the printing industry, household disinfection and sterilization, the medical field, atmospheric UV radiation level detection, etc.
Home Disinfection
Medical Device
PV Testing
Printer
| Model | SISCO-UVM-YP-FZD2 |
| Modes | Uniformity, Normal, Online |
| Communication Method | USB/RS48 communication |
| Power Range | 0.1uW/cm² - 100,000mW/cm² (Automatically switch units according to light source strength) |
| Energy Range | 0.1 uJ/cm² - 9999999999.9 mJ/cm² |
| Power Units | uW/cm², mW/cm², W/cm², W/m² (Automatic/manual switchable) |
| Energy Units | uJ/cm², mJ/cm², j/cm², j/m² (Automatic/manual switching available) |
| Range Change | 1 billion |
| Waterproof Grade |
IP54 |
| Power Tolerance | ±5% |
| Energy Tolerance | ±5% |
| Resolution | 0.1 |
| Temperature Measurement Range | -55°C to 125°C |
| Temperature Tolerance | ±0.5°C |
| Response Speed | 2048 times/second |
| Screen Refresh Rate | 10 times/second |
| Operation Method | Touch screen |
| Display Window | 4.3-inch capacitive touch screen |
| Battery | 3000mAh lithium battery, sustainable battery life of about 10 hours |
| Automatic Shutdown | Automatically shuts off after 3 minutes of inactivity or inactivity (does not work while charging) |
| Operation Prompt Sound | Yes/Can be turned off |
| Operating Environment | -20°C to 60°C, humidity less than 85%, non-condensing |
| Language | English |
| Optional Accessories | Computer monitoring software |
Probe
| Probe Model | Wavelength Range | Peak Wavelength |
| Probe E510 (UVA FULL) | 250-410nm | 365nm |
| Probe E365 (UVA) | 320-400nm | 365nm |
| Probe E254 (UVC) | 230-280nm | 254nm |
| Probe E297 (UVB) | 280-330nm | 297nm |
| Probe E395 (UVA-LED) | 340-420nm | 395nm |
| Probe E420 (Blu-ray) | 400-480nm | 450nm |

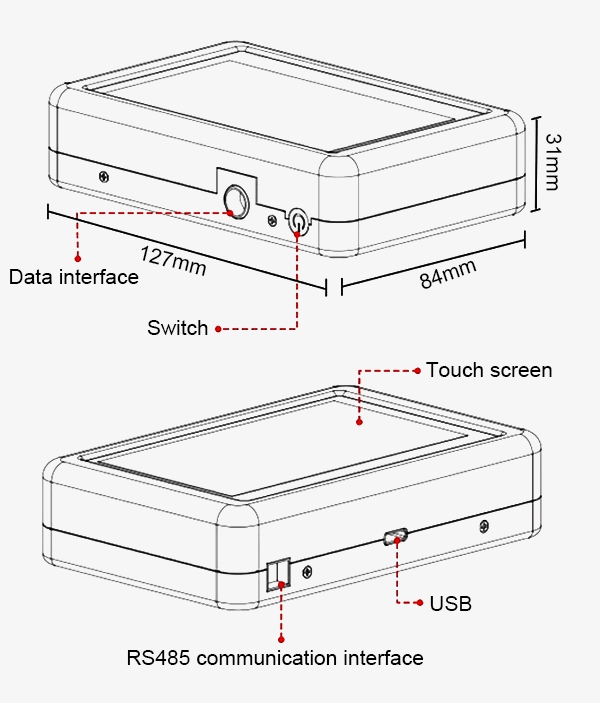

Touch Screen UV Radiometer Size

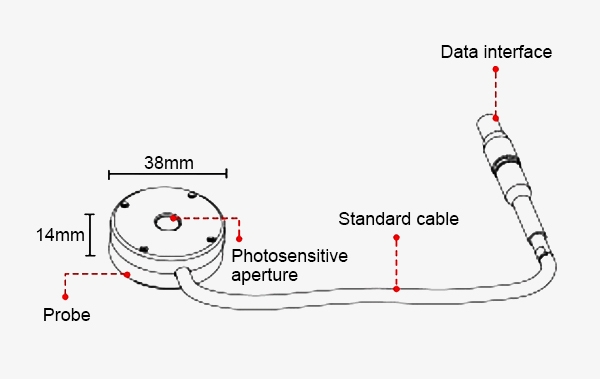

Touch Screen UV Radiometer Probe Structure
Q1: What is a touchscreen uv radiometer?
A1: This ultraviolet meter is a precision instrument operated via a touchscreen interface. It measures the intensity (irradiance) of ultraviolet (UV) or other specific wavelength bands of light. It is typically expressed as radiant power per unit area (such as mW/cm² or μW/cm²). The uv radiation meter's core function is to achieve fast and accurate measurement of UV radiation through a high-precision sensor and digital processing system, while also enabling intuitive human-computer interaction via the touchscreen.
Q2: How does a touchscreen ultraviolet radiometer work?
A2: The operating principle of a touchscreen uv energy meter is based on the photoelectric effect and signal processing technology. It uses modular probes and a touchscreen main unit to work in conjunction.
Q3: What are the functions of a touchscreen digital uv meter?
A3: A uv light intensity meter is a measurement device that combines high-precision photoelectric detection with intelligent interaction. It is primarily used for the precise measurement of ultraviolet (UV) or other specific wavelength bands of light. Ultraviolet light meter's applications cover a wide range of applications, including industry, healthcare, and environmental protection. UV light intensity meter offers multi-band coverage, a wide measurement range, and high accuracy. The modular probes are suitable for various scenarios, and the main unit can be equipped with probes of different wavelengths (such as specialized probes for UVA, UVB, and UVC).
Tips: How to use a UV radiometer with a touch screen correctly?
Press and hold the power button to turn on the uv meter. Check the connection between the probe and the main unit. Set the parameters and units, and select the desired measurement mode on the touch screen. Select the appropriate probe based on the light range you want to measure. Place the probe (the circular black part) in the UV light irradiation area. Ensure the probe faces the light source directly, avoiding any tilt or obstruction. Start the measurement, and the uv radiometer will display the data in real time. Record/Save the data. After the measurement is completed, you can save, export, or take a photo. The graph can be exported to a computer.
