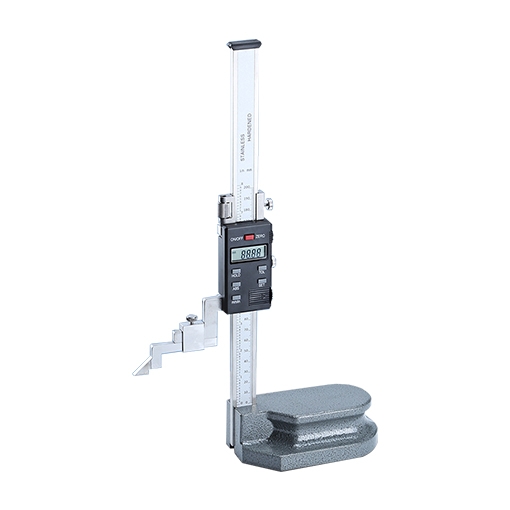

    0-1000mm Digital Height Gauge, 0.01mm

    Reliable digital height gauge with a resolution of 0.01mm, a measurement range of 0-1000 mm. The 0-1000mm height gauge is handy, reliable, and easy to use for vertical measurements within its range. It is the trusted tool used by professionals and do-it-yourselfers.
    SKU: SISCO-DHG-1000
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days

    Buy a SISCO 1000mm height gauge online which with a resolution of 0.01mm, error ±0.07mm. The clear and easy-to-read LCD high characters feature on this electronic digital height gauge makes it simple to get accurate readings quickly and easily.

    Digital height gauge detail

    Large screen digital display design

    • LCD high-definition LCD screen, the numbers are clear and easy to read
    • Comfortable in hand and full of functions
    Digital height gauge detail

    Precise fine-tuning device

    • Toggle mechanism for more precise values
    • High-definition scale film, dual display in metric and imperial


    Digital height gauge structure


    SISCO digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Digital height gauges are mainly used in the automotive industry, manufacturing, science, and research industries.

    Digital height gauge application

    • Model: SISCO-DHG-1000
    • Range: 0-1000mm
    • Voltage: 1.5V
    • Resolution: 0.01mm
    • Error: ±0.07mm
    • Responding Speed: 1 m/s
    • Body Material: 4CR13 stainless steel
    • Battery Type: LR44 button-type
    • Weight: 26kg


    Digital height gauge dimension


    Q1: What is a digital height gauge?
    A1: A height gauge is one of the most used accuracy and precision tools in different industries. Some of these industries are manufacturing, automobile, metalworking, and healthcare. Typically, they’re used in production stages, such as in cutting and marking raw materials. In some cases, height gauges are utilized in quality control to check if products have met particular standards.

    Q2: Is the digital height gauge accurate?
    A2: Standard height gauges provide readings accurate to one-hundredth of an inch, but precision-engineered digital height gauges can determine accurate measurements up to the thousandth of an inch and beyond.

    Q3: Why do we use digital height gauges?
    A3: A digital height gauge is used for measuring the height of objects. Vernier height gauges are used in metrology and metalworking to detect or measure vertical distances. The height gauges are often used to measure a granite surface or scribe part features from a datum plane.

    Tips: How to maintain a digital height gauge?

    • After the measurement, take off the jaws so that they can be cleaned and dried with a cloth that’s soaked with cleaning oil. You can use a clean, dry cloth before storing the instrument in the fit case.
    • During storage or while in use, it's important to maintain the temperature between five to 40 degrees Celsius. The protective sticker shouldn’t be in contact with any hydrous liquid.
    • Finally, prevent damage to the electronics, such as an electrical circuit overload, by never applying voltage or engraving with an electric pen any part of the depth gauge.

    Thank you for buying industrial test and measurement equipment on, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.

    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
