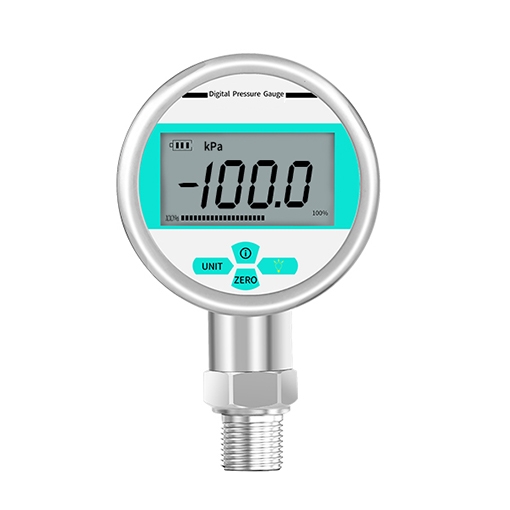

    ±1 bar Digital Vacuum Pressure Gauge, ±14.5 psi

    SISCO digital vacuum pressure gauge with a measuring range of -1 to 1 bar, 80mm dial diameter, M20*1.5 thread, and ±0.2% accuracy. The high-accuracy digital pressure gauge has the advantages of small in size, light in weight and durable.
    SKU: SISCO-DPG-±100kP
    $208.08
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Digital low pressure gauge features -14.5-14.5 psi measuring range, intuitive controls and menus make it easy to operate and configure the gauge. Digital vacuum pressure gauge is widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc.

    Digital pressure gauge detail

    5 measurement units which is easy to switch

    • The digital pressure gauge with a clear, easy-to-read dial that shows 5 pressure readings in psi, kPa, MPa, bar and kfg/cm².
    • Increment Markings: The electronic pressure gauge provides precise increment markings for accurate readings.
    Digital pressure gauge detail

    Powered by 2 AAA batteries, easy to replace

    • No external leads and power supply required.
    • 4-digit display, can retain 3 decimal places, more accurate measurement.
    • Long press to clear the history, maximum and minimum values ​​recorded.

    Note: When the LCD digital display is dim or no display, the battery should be replaced in time.

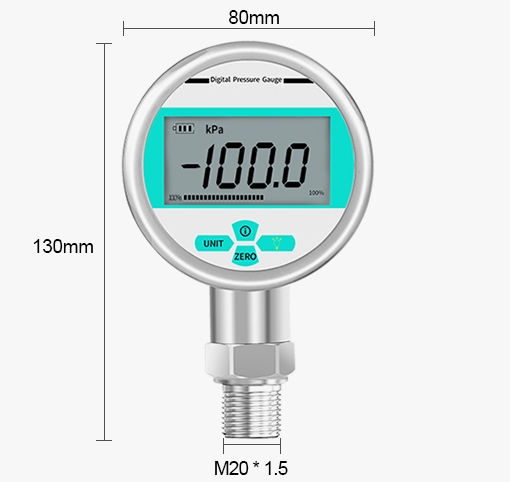

    Dimension

    -1 to 1 bar digital pressure gauge size
    Applications

    SISCO digital pressure gauges are widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc. The electronic pressure gauges are used to monitor and accurately measure the pressure of liquids and gases in real time. They provide high-precision readings, are easy to read, and can integrate data logging and remote monitoring functions.

    Digital pressure gauge for HVAC system

    HVAC Systems

    Digital pressure gauge for laboratory

    Laboratory

    Digital pressure gauge for water treatment

    Water Treatment

    Digital pressure gauge for industry

    Industry

    Specs



    Model SISCO-DPS-YB80-±100kP
    Measuring Range ±1 bar/ ±14.5 psi/ ±100 kPa
    Accuracy ±0.2%
    Thread M20*1.5
    Pressure Type Gauge pressure, absolute pressure, sealed gauge pressure
    Measurement Medium Water, air, hydraulic, oil
    Dial Size 80mm
    Overload Capacity <40MPa,150%;>40MPa,120%
    Long-term Stability 0.2% FS/Y
    Sampling Frequency 3 times/s
    Display Screen LCD display
    Supply Voltage 3V (two AAA batteries)
    Material 304 stainless steel
    Installation Method Radial
    Peak Value Recording
    One-button Power On/Off
    Unit Conversion
    Peak and Valley Value Recording
    Low Power Prompt


    Detail

    Details of digital pressure gauge

    FAQs

    Q1: What is a digital pressure gauge?
    A1: A digital pressure gauge is an instrument that measures and displays pressure readings electronically using a digital display. It typically offers higher accuracy and ease of use compared to analog pressure gauges.

    Q2: How does a digital pressure gauge work?
    A2: A digital pressure gauge measures pressure using a sensor that converts pressure into an electrical signal. This signal is amplified, converted from analog to digital, processed by a microprocessor, and then displayed on a digital screen. The result is an accurate, real-time pressure reading.

    Q3: What is a pressure gauge used for?
    A3: Yes, a digital pressure gauge is generally more accurate than a mechanical pressure gauge, as it offers higher precision, better resolution, and easier readability due to its electronic components and digital display.

    Tips: What does a digital vacuum pressure gauge do?

    A digital vacuum pressure gauge is an instrument that measures and displays pressure levels below atmospheric pressure (vacuum) in a precise and easy-to-read digital format. It uses a vacuum sensor to detect changes in pressure, which are then converted into an electrical signal. This signal is processed by an internal microprocessor to produce an accurate numerical value, which is displayed on a digital screen. Digital vacuum pressure gauges are commonly used in applications such as laboratory research, HVAC systems, semiconductor manufacturing, food processing, and pharmaceutical production, where precise monitoring of vacuum levels is critical. The digital display allows for quick and easy reading of pressure values, ensuring accurate control and monitoring of vacuum systems.
