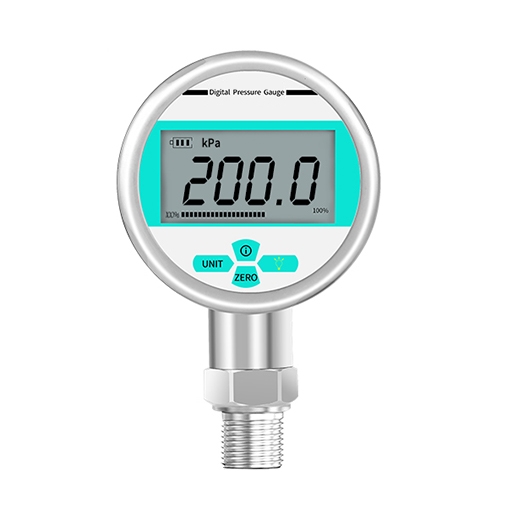

    0 to 2 bar High Accuracy Digital Pressure Gauge, 0-30 psi

    SISCO 0 to 30 psi pressure gauge for sale online. 80mm dial diameter, stainless steel, M20*1.5 thread, and ±0.2% accuracy specification for connection. Digital pressure measurer is mainly used in industries, laboratories, scientific research, HVAC systems, water treatment.
    SKU: SISCO-DPG-20kP
    $209.99
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Cheap price 0 to 2 bar digital pressure gauge is available with a 0~2 bar measuring range, 80mm dial diameter. The digital psi gauge can display pressure readings in various units such as PSI, bar, kPa, and MPa, allowing for flexibility in different applications.

    Digital pressure gauge detail

    5 measurement units which is easy to switch

    • The digital pressure gauge with a clear, easy-to-read dial that shows 5 pressure readings in psi, kPa, MPa, bar and kfg/cm².
    • Increment Markings: The electronic pressure gauge provides precise increment markings for accurate readings.
    Digital pressure gauge detail

    Powered by 2 AAA batteries, easy to replace

    • No external leads and power supply required.
    • 4-digit display, can retain 3 decimal places, more accurate measurement.
    • Long press to clear the history, maximum and minimum values ​​recorded.

    Note: When the LCD digital display is dim or no display, the battery should be replaced in time.

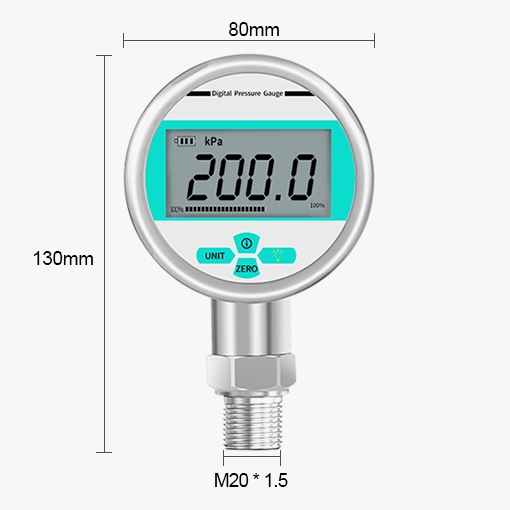

    Dimension

    0 to 2 bar high accuracy digital low pressure gauge size
    Applications

    SISCO digital pressure gauges are widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc. The electronic pressure gauges are used to monitor and accurately measure the pressure of liquids and gases in real time. They provide high-precision readings, are easy to read, and can integrate data logging and remote monitoring functions.

    Digital pressure gauge for HVAC system

    HVAC Systems

    Digital pressure gauge for laboratory

    Laboratory

    Digital pressure gauge for water treatment

    Water Treatment

    Digital pressure gauge for industry

    Industry

    Specs



    Model SISCO-DPS-YB80-200kP
    Measuring Range 0-2 bar/ 0-29 psi/ 0-200 kPa
    Accuracy ±0.2%
    Thread M20*1.5
    Pressure Type Gauge pressure, absolute pressure, sealed gauge pressure
    Measurement Medium Water, air, hydraulic, oil
    Dial Size 80mm
    Overload Capacity <40MPa,150%;>40MPa,120%
    Long-term Stability 0.2% FS/Y
    Sampling Frequency 3 times/s
    Display Screen LCD display
    Supply Voltage 3V (two AAA batteries)
    Material 304 stainless steel
    Installation Method Radial
    Peak Value Recording
    One-button Power On/Off
    Unit Conversion
    Peak and Valley Value Recording
    Low Power Prompt


    Detail

    Details of digital pressure gauge

    FAQs

    Q1: What is a digital pressure gauge?
    A1: A digital pressure gauge is an instrument that measures and displays pressure readings electronically using a digital display. It typically offers higher accuracy and ease of use compared to analog pressure gauges.

    Q2: How does a digital pressure gauge work?
    A2: A digital pressure gauge measures pressure using a sensor that converts pressure into an electrical signal. This signal is amplified, converted from analog to digital, processed by a microprocessor, and then displayed on a digital screen. The result is an accurate, real-time pressure reading.

    Q3: What is a pressure gauge used for?
    A3: Yes, a digital pressure gauge is generally more accurate than a mechanical pressure gauge, as it offers higher precision, better resolution, and easier readability due to its electronic components and digital display.

    Tips: Does a digital pressure gauge require an external power source?

    No, SISCO's digital pressure gauges are powered by internal batteries, making them portable and easy to use in various locations without the need for an external power source. These are particularly useful for field applications and situations where mobility is required. Battery life varies, so it's important to monitor and replace batteries as needed.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
