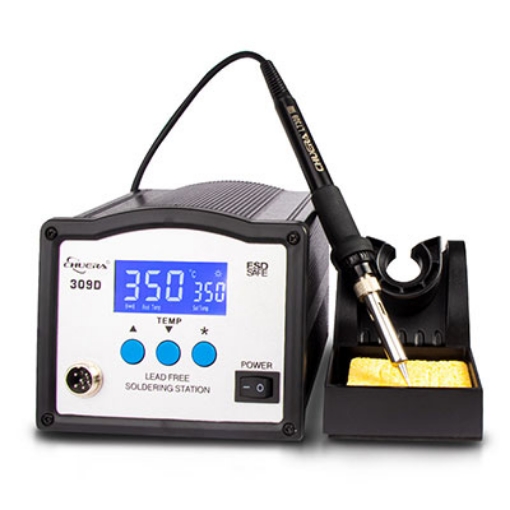

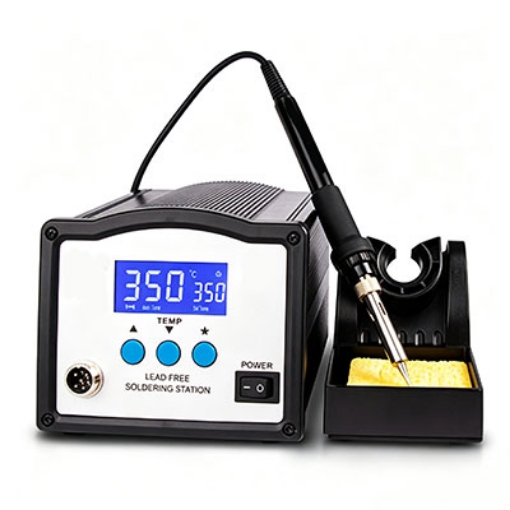

150W High Frequency Digital Soldering Station

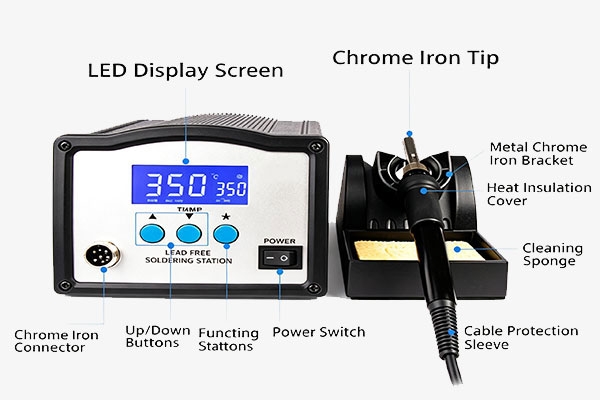

Details

Q1: What temperature range does this soldering station support?
A1: It supports a wide range from 50°C to 550°C, covering both delicate SMD work and high-temperature lead-free soldering. The digital display and keypad allow precise one-degree adjustments. This makes it a versatile temperature-controlled soldering station for various applications.

Q2: How does the ESD protection work, and why is it important?
A2:The built-in anti-static circuitry limits tip-to-ground voltage to < 2 mV and impedance to < 2 Ω. This safely dissipates static charges, protecting sensitive ICs and microprocessors from damage. It meets strict industrial ESD standards, making it ideal for PCB assembly and repair.

Q3: Is the heating core easy to replace?

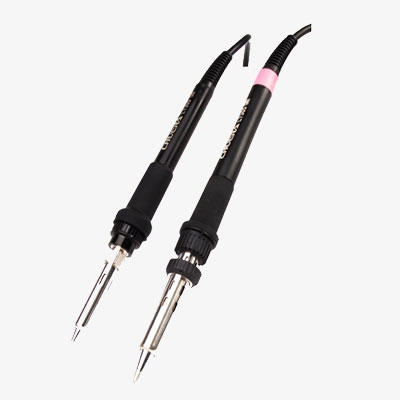

A3: Yes, the plug-and-play design allows you to swap the heating core within seconds without any tools. Simply loosen the collar, pull out the old core, and insert a new one. The soft silicone cord and aluminium housing also ensure long-term durability and comfortable handling.

Tips: How to get the most out of your soldering station?

To ensure optimal performance, tip longevity, and safe operation, please follow these practical guidelines. Proper use and routine maintenance will significantly extend the service life of your soldering station.

• Keep the tip tinned at all times. Before, during, and after use, always coat the tip with a thin layer of fresh solder. This prevents oxidation, improves heat transfer, and prolongs tip life. When cleaning, use a damp sponge or brass wool – but avoid over-wiping, as thermal shock can crack the plating and reduce efficiency.
• Select the right tip shape for your task. Different tip geometries are designed for specific applications. For example, a chisel tip delivers more thermal mass for large joints like ground planes, while conical or fine tips are ideal for precision SMD work. Switching tips is quick and tool-free, allowing you to match the tool to the job.
• Adjust temperature wisely for different components. The 50-550°C range gives you full control, but not every job requires maximum heat. For temperature-sensitive parts such as LEDs or plastic connectors, start low and gradually increase until the solder flows smoothly. For lead-free soldering, slightly higher temperatures are typically needed – the digital display helps you stay within the optimal range.
• Leverage the automatic sleep function for efficiency. If the station is left idle for more than 20 minutes, the sleep mode activates and reduces the temperature to a safe standby level. This not only conserves energy but also extends the lifespan of both the heating element and the tip. The station wakes instantly when you pick up the handle, ensuring you're always ready to work without unnecessary downtime.
