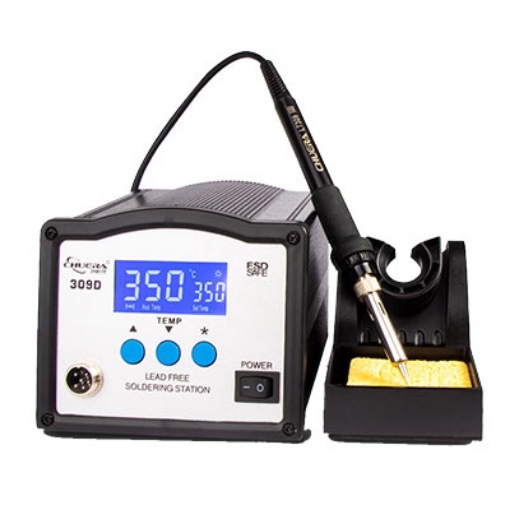

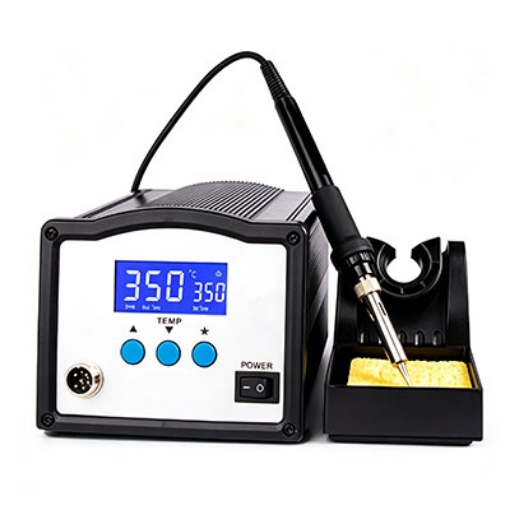

Featuring high‑frequency eddy‑current heating and dual digital displays, this 90W soldering station delivers rapid warm‑up and precise real‑time temperature monitoring. Designed for lead‑free applications, it offers stable, repeatable performance with ESD‑safe construction. Its intuitive controls and fast thermal recovery make it a dependable partner for daily professional soldering tasks.
High-Frequency Eddy Current Heating & Precision Temperature Control
- Rapid heat-up from cold start, reaching working temperature in approximately 10 seconds to minimise waiting time.
- Front-positioned temperature sensor detects tip temperature changes instantly and maintains accuracy within ±2°C under no-load conditions.
- Dual digital display shows both set temperature and real-time tip temperature simultaneously for clear monitoring.
- Excellent thermal recovery quickly replenishes heat after soldering large joints, preventing temperature drop during continuous work.
- Wide adjustable range from 50°C to 600°C, suitable for delicate SMD components as well as heavy-duty terminals.
Intelligent Protection & User-Friendly Operation
- Password-protected temperature lock prevents unauthorised adjustments, ensuring consistent process quality on production lines.
- Automatic sleep mode reduces power consumption and extends heater and tip life when the station is left idle.
- Plug-in ceramic heating core allows tool-free replacement in seconds, minimising maintenance downtime.
- Dual anti-static grounding protects sensitive electronic components from electrostatic discharge and ensures operator safety.
- Digital calibration enables quick and accurate temperature correction without manual potentiometer adjustments.
Applications

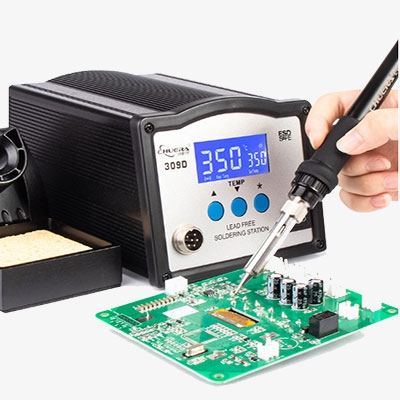

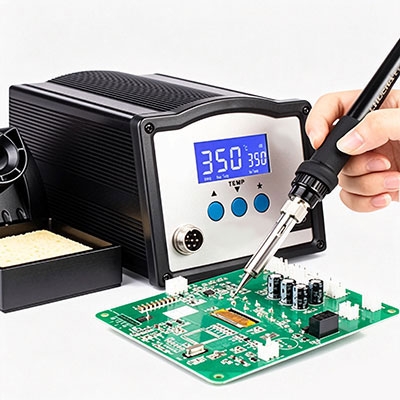

SISCO soldering station is ideal for PCB assembly and rework, SMD component soldering, and through-hole joint repairs. It performs equally well in consumer electronics repair, automotive electronics manufacturing, and industrial control panel assembly. The wide temperature range and fast thermal recovery also make it suitable for lead-free production lines, laboratory prototyping, and precision instrument maintenance.
Electronics Repair
Industrial Control
Electronics Manufacturing

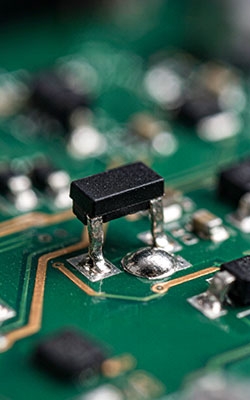

SMD Component Soldering
| Model | SISCO-SS-309D |
| Power Consumption | 90W |
| Operating Voltage | AC 220V / 50Hz |
| Temperature Range | 50°C – 600°C |
| Temperature Stability | ±2°C |
| Heat-up Time | Approx. 10 seconds |
| Tip-to-Ground Potential | < 2mV |
| Tip-to-Ground Resistance | < 2Ω |
| Display Type | Dual digital LCD |
| Heating Element | High-frequency eddy current heating |
| Heating Core Type | Plug-in ceramic heating core |
| Handle Model | LT202C |
| Compatible Tip Series | 200 Series |
| Handle Cable Length | 1.3m |
| Cable Material | Soft silicone |
| Control Station Material | Aluminium alloy |
| Dimensions (Station) | 150 × 125 × 100 mm |
| Net Weight | Approx. 3.6 kg |
| Fuse Rating | 2A |
| ESD Protection | Dual anti-static grounding design |
| Certifications | CE certified |

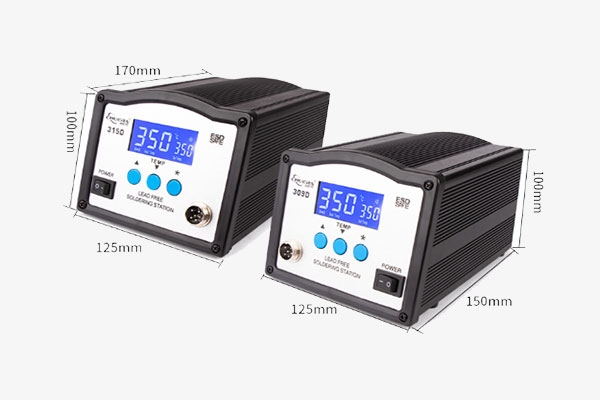

Dimension (unit: mm)
Q1: What temperature range does this soldering station support?
A1: The temperature range is adjustable from 50°C to 600°C, making it suitable for a wide variety of soldering tasks, from delicate SMD components to heavy-duty terminals that require higher heat input.
Q2: Can the temperature be locked to prevent accidental changes?
A2: Yes, the station features a password-protected temperature lock function. This is especially useful in production line environments where maintaining a consistent temperature is critical for process quality control and preventing unauthorised adjustments.
Q3: Is this soldering station safe for sensitive electronic components?
A3: Yes, the station incorporates dual anti-static grounding and maintains tip-to-ground potential below 2 mV, effectively protecting sensitive components from electrostatic discharge damage during soldering operations.
Tips: How to get the most out of your soldering station?
To ensure optimal performance, tip longevity, and safe operation, please follow these practical guidelines. Proper use and routine maintenance will significantly extend the service life of your soldering station.
- For daily maintenance, always keep the soldering tip tinned when the station is not in use. This prevents oxidation and ensures good heat transfer. Use a damp (not wet) sponge or brass wire cleaner to remove excess solder and contaminants.
- When soldering temperature-sensitive components such as LEDs or plastic connectors, start with a lower temperature setting and gradually increase until the solder flows smoothly. This approach minimises the risk of thermal damage.
- If the station is left idle for more than 30 minutes, the automatic sleep mode will activate and lower the temperature. This feature conserves energy and significantly extends the lifespan of both the heating element and the soldering tip.
