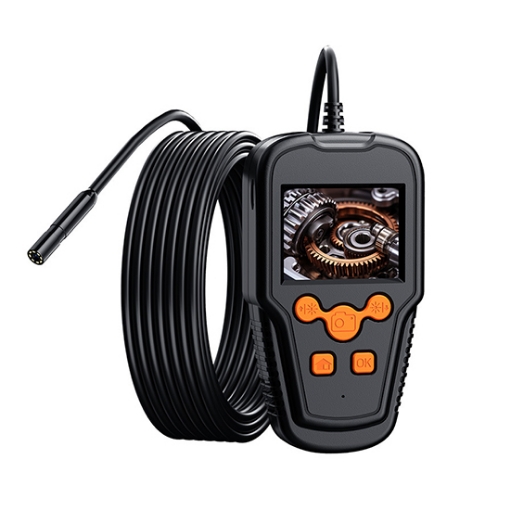

SISCO's portable inspection camera features an impressive 4~500 cm viewing distance and delivers crisp, detailed visuals with 1920×1080P resolution. The pipe camera features a durable, copper-core, semi-rigid cable that bends and retains its shape, allowing for easier navigation through tight or complex spaces. With its IP67 waterproof camera probe, the industrial endoscope performs reliably even in wet environments, making it suitable for sewer lines, water pipes, and other challenging inspection tasks.
Clear Imaging & Multiple Probe Options

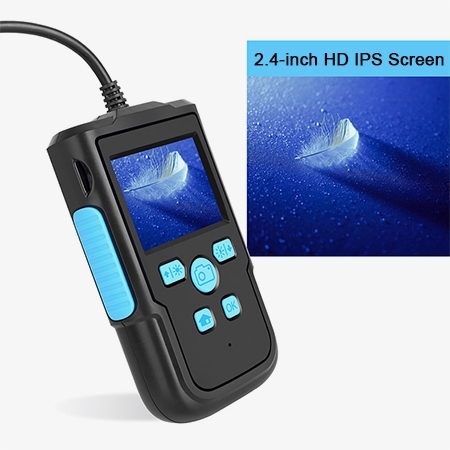

- This industrial borescope features a 2.4-inch IPS screen with a full-color HD display. Its ultra-wide viewing angle and zero-delay imaging make inspections more intuitive and efficient.
- Utilizing cutting-edge imaging technology, the sewer inspection camera captures exceptionally clear images with a resolution of up to 1080P, delivering meticulously detailed visuals.
- Additionally, this industrial inspection camera offers three highly sensitive waterproof probes with diameters of 3.9mm, 5.5mm, and 8mm for selection. Each provides crisp image quality and adapts flexibly to diverse working environments and inspection requirements.
Adjustable Lighting & Wide Viewing Distance

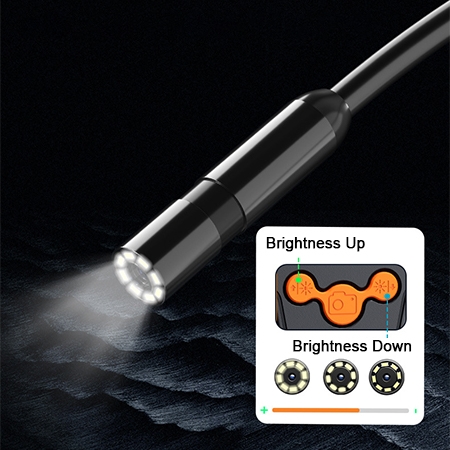

- This mini endoscope camera features 8 adjustable LED lights, allowing users to freely regulate brightness according to their environment and meet personalized lighting needs across various scenarios.
- Our waterproof inspection camera also employs advanced extended-range lens technology, delivering a viewing distance of 4 to 500 cm. It effortlessly handles both distant macro observations and close-up micro inspections.
- With simple one-button operation and no need for WiFi, Bluetooth, or apps, this handheld industrial endoscope is perfect for automotive repair, plumbing inspection, and sewer maintenance where fast, direct viewing is essential.
Applications
The industrial endoscope is widely used in automotive inspection, allowing users to check engine cylinders, valves, and oil leaks without disassembly and quickly pinpoint faults. During carbon buildup inspection, it observes valves and pistons through the spark plug hole, preventing unnecessary engine damage. In home appliance repair, the inspection camera helps examine circuit boards and compressors for faults. For pipeline or drain inspection, the pipe endoscope locates blockages or foreign objects, assesses severity, and guides cleaning — improving efficiency and accuracy.
Carbon Check
Appliance Repair
Clog Detection
Auto Repair
| Model | SISCO-IC-P60 |
| Color Options | Orange / Blue |
| Display | 2.4" Color LCD Screen |
| Lens Diameter Options | 3.9 mm / 5.5 mm / 8 mm |
| Cable Type | Hard (Semi-rigid) cable |
| Cable Length Options | 2 m / 5 m / 10 m |
| Camera Resolution | 1920 × 1080P |
| Focal Distance | 4–500 cm |
| Viewing Angle | 70° |
| Light Source | 8 Adjustable LED Lights |
| Battery | 2600 mAh Rechargeable Lithium Battery |
| Waterproof Rating | IP67 (camera probe only) |
| Supported Languages | English, Chinese, Japanese, French, German, Italian, Czech, Portuguese, Polish, Dutch, Turkish |
Details
Q1: What inspection scenarios is this 2.4-inch mini industrial endoscope suitable for?
A1: This compact pipe inspection camera is ideal for multiple industrial and household inspection tasks. It can navigate deep inside pipe systems, helping detect corrosion, blockages, and structural damage. For sewer inspection, the slim probe easily enters narrow drainage channels to locate clogs or assess internal wear. In plumbing and HVAC maintenance, it helps check scale buildup, leaks, and connection integrity inside water pipes and heating systems—making it a valuable tool for routine maintenance and troubleshooting.
Q2: How should I choose the appropriate probe diameter and cable length?
A2: Select the probe diameter according to the size of the inspection channel. The 3.9 mm probe is ideal for very narrow tubes or precision components. The 5.5 mm and 8 mm probes provide higher stability and clearer imaging for standard or larger pipes. For cable length, 2 m is suitable for short-distance inspections, such as small appliances or vehicle components. 5 m works well for medium-length plumbing or HVAC ducts. 10 m is recommended for long underground pipes or hard-to-reach industrial channels. Choose based on both access distance and the structural complexity of your inspection environment.
Q3: How waterproof is this inspection camera, and what should I pay attention to during underwater use?
A3: The camera probe is rated IP67, meaning it withstands temporary immersion and performs reliably in wet or humid environments. For underwater inspection, ensure all cable and connector areas remain dry and properly sealed. Adjust the LED brightness before submersion to compensate for low-light underwater conditions. After inspection, wipe the probe dry and store the device in a cool, dry environment to prolong its service life.
Tips: How to extend battery life for the 2.4-inch compact industrial endoscope?
When using this endoscope, follow these tips to maximize battery longevity.
- First, turn off the device promptly when not in use to prevent prolonged standby mode from draining power. If extended non-use is anticipated, remove the battery and store it separately to avoid deep discharge caused by residual device current.
- Second, avoid using the borescope for intensive inspection tasks when the battery is critically low. This can damage the battery and reduce its future performance.
- Additionally, operate and store the inspection camera in a suitable temperature environment. Extreme heat or cold can impair battery performance and lifespan. It is generally recommended to use and store the device and battery in a dry, room-temperature environment.
