5 Digit Display Controller for Load Cells, RS485/ 4-20mA Output

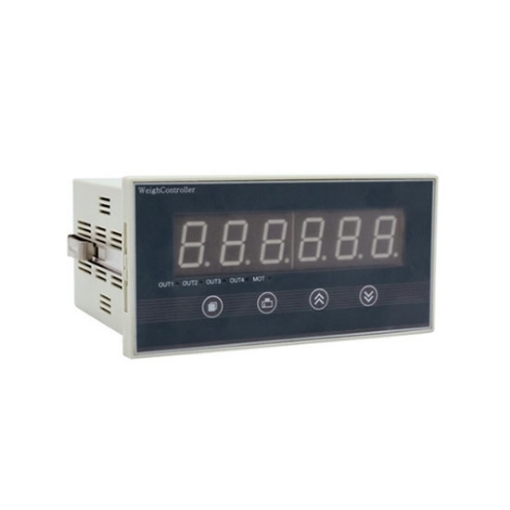

sisco 5 digit display controller can cooperate with load cells, force sensors and weighing sensors, two outputs for data comparison. Selectable RS485, 4-20mA or 0-10V transmitting signal output. This digital panel meter also can display gross, net, peak and valley value alternately.
SKU: SISCO-DPM-DY220
*
$247.85
i h
Free shipping
Delivery date: 7-12 days
Overview


5 digit intelligent digital display controller has functions such as zero tracking, automatic zero clearing when power on, which can be used for measuring pressure, impact force, tension and weight. This digital panel meter can connect with load cells for data comparion.

5 digit display controller

Hollow heat dissipation

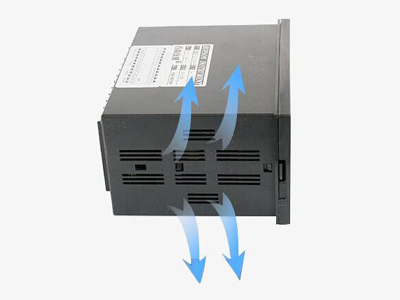

5 digital display controller has large-area hollow heat dissipation design, maintaining good breathability, and effectively ensuring product safety.

5 digit display controller

Terminals

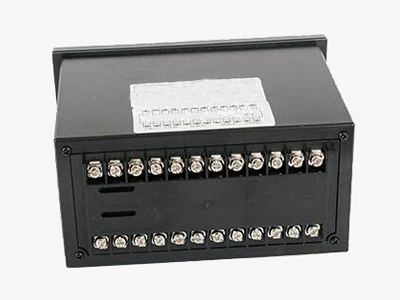

Display Controller has a detailed wiring diagram, which is more convenient to wiring. The reliable wiring terminal and flame retardant plastic terminal protective case make weight controller's performance more reliable.

Applications

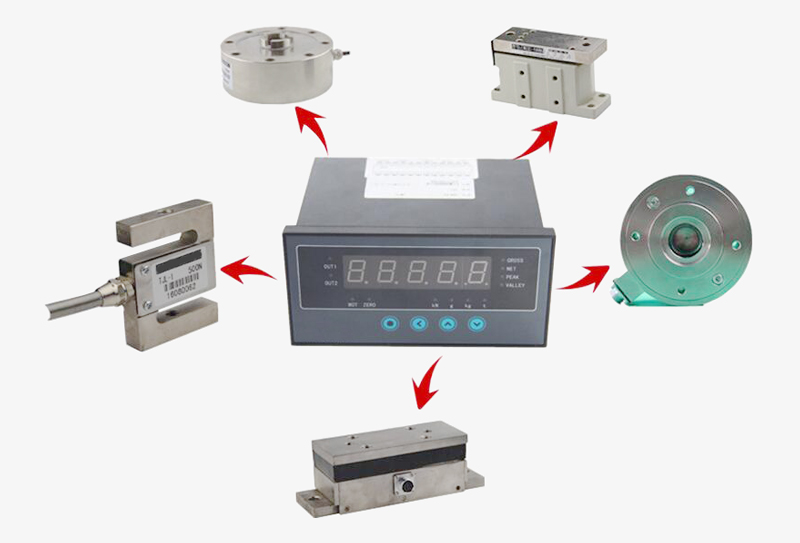

sisco 5 digit display controllers can be used for any functional force value sensors, such load cells, force sensors and weighing sensors.

5 digit display controller applications

Specs
Basics Model SISCO-DPM-DY220
Dimension 96*48*84mm horizontal, hole size 92*45mm
Shipping weight 2 kg
Technical parameters Display -9999~29500
Measurement accuracy 0.05%
Measuring speed 10 or 80 times/second (Settable)
Display method 5 digit LED display
Instrument power supply 100-240V AC, 50/60Hz
Input signal 0-2.5mV/V
Transmitting Output Signal Option RS485/ 4-20mA/ 0-10V
Power Consumption ≤5W
Indicator light definition Alarm 1, alarm 2, alarm 3, MOT, zero, gross, net, peak, valley, t, kg, g, kN
Alarm Three alarm outputs
External power supply 10V precision power supply
Working temperature Temp: -20~+50℃ (-4~+122℉)
Humidity: ≤85%RH

Wiring Diagram

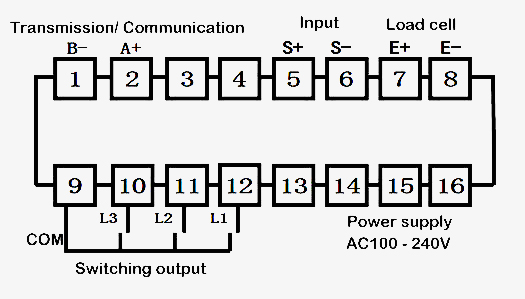

5 digit display controller for load cells wiring diagram

FAQs

Q1: What is a digital panel meter?
A1:
The digital panel meter displays the voltage, current value or other standard signal transmission display value in the electrical circuit by digital direct reading; the product has the advantages of good stability, strong anti-interference, high cost performance, and the product is small in size and can be directly replaced original pointer meter.

Q2: What are the functions of digital panel meters?
A2: Digital panel meters can be categorized by type, size, style or other criteria. Understanding the functions of the digital panel meter is an important factor in choosing it. Commonly used functions are ammeters, voltmeters, frequency meters, power meters, energy meters, counters, timers, thermometers, process meters and controllers.

Q3: What are the advantages of digital panel meters?
A3: The digital panel meter directly displays the measured value or deviation value by digital quantity, which is clear and intuitive, easy to read, and will not produce parallax. Digital panel meters generally use large and medium-scale integrated circuits, with simple circuits, good reliability and good shock resistance. Because of the common modular design method for instruments, that is, digital panel meters are mostly composed of a small number of modular circuits with separated functions, so they are conducive to manufacturing, debugging and maintenance.

Tips: How to install display controller?

  • On the fixed power distribution cabinet, select a suitable position to drill a mounting hole according to the size of the mounting hole.
  • Take out the panel meter, loosen the positioning screws, and remove the fixing clamp.
  • Insert the precision digital panel meter into the installation hole of the power distribution cabinet.
  • Insert the panel meter retaining clips and tighten the set screws.
Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


What is not covered?

  • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
  • Expendable parts.
  • Routine cleaning or normal cosmetic and mechanical wear.
  • Damage from misuse, abuse or neglect.
  • Damage from use of parts other than sisco approved.
  • Damage from use outside the product’s usage or storage parameters.
  • Damage from use of parts not sold by sisco.
  • Damage from modification or incorporation into other products.
  • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
  • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
