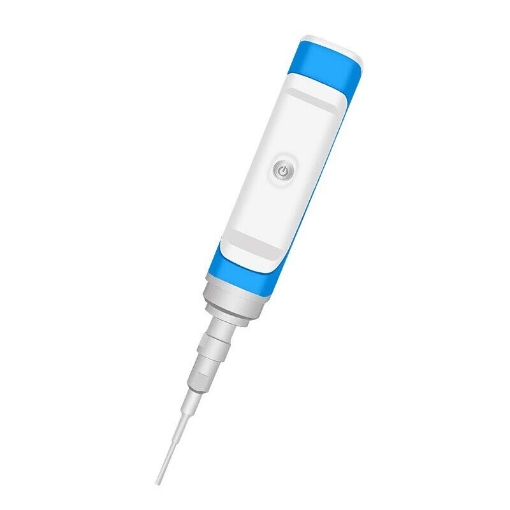

    0.1-5ml Mini Handheld Ultrasonic Homogenizer

    High quality and reasonable price handheld ultrasonic homogenizer for sale online. The suitable capacity of this ultrasonic disruptor is 0.1-5ml. This portable homogenizer adopts with 50 watts of power. Handheld ultrasonic homogenizer often used in research institution, chemistry field and food industry. (A horn is included in standard configuration.)
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days

    Portable handheld ultrasonic cell crusher can convert mains power into high frequency and high voltage electricity. The energy is transmitted to the transducer and converted into high frequency mechanical vibration, which acts on the liquid to produce strong pressure waves.

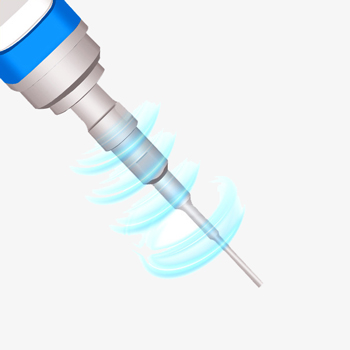

    Handheld ultrasonic homogenizer detail one

    Horn of ultrasonic homogenizer is made of titanium alloy material

    • Titanium alloy material which has high strength, strong corrosion resistance and long service life.
    • Frequency tracking and amplitude compensation adopt automatic mode, with stable load and high electro-acoustic conversion rate.

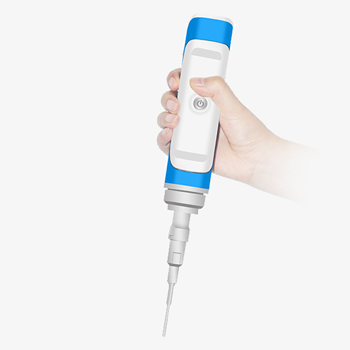

    Handheld ultrasonic homogenizer detail two

    Mini ultrasonic homogenizer is portable and compact in structure

    • It can be hand-held or can be fixed with a bracket.
    • Metal stainless steel plug-in opening.
    • Independent power supply, easy to carry.


    A mini handheld ultrasonic homogenizer is a laboratory instrument used for sample preparation in scientific research. It is a compact and handheld device. Mini handheld ultrasonic homogenizers are commonly used in various scientific and industrial applications for cell disruption, sample preparation, emulsification, and dispersion of nanoparticles.

    Handheld ultrasonic homogenizer application

    • Model: HX-MINI-5
    • Power: 50W
    • Input Output: 100-230VAC
    • Frequency: 30 KHz
    • Capacity: 0.1-5 ml
    • Optional Horn: 1.5, 2, 3, 6, 8 mm
    • Horn Material: titanium alloy
    • Single Ultrasound Time: <30 min
    • Single Interval Time: 0.1-99.9s
    • Operation mode: continuously

    Q1: What is mini handheld ultrasonic homogenizer?
    A1: A mini handheld ultrasonic homogenizer is a laboratory instrument used to disrupt, emulsify, and disperse samples in a variety of applications, such as cell disruption, nanoparticle synthesis, and homogenization of biological and chemical samples.

    Q2: What are the three types of homogenizer?
    A2: The three main types to consider when looking for the right homogenizer for your lab are: pressure, mechanical and ultrasonic homogenizers. They range in size from small handheld homogenizers to large industrial size homogenizers.

    Q3: What is the working principle of ultrasonic homogenizer?
    A3: Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse. This creates shear and shock waves which tear apart cells and particles.

    Tips: What is the difference between homogenizer and ultrasonic homogenizer?

    The main difference between a homogenizer and an ultrasonic homogenizer is the mechanism used to break down particles. A homogenizer uses mechanical shear forces to break down particles, while an ultrasonic homogenizer uses high-frequency sound waves. As a result, the two devices may be better suited for different applications. Homogenizers are often used for larger sample sizes and can be more efficient for tough samples such as plant tissues. Ultrasonic homogenizers are more commonly used for smaller sample sizes and for delicate samples such as proteins and lipids.


    Thank you for buying industrial test and measurement equipment on, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.

    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
    5.0 1
    Write your own review Close
    Eamon1997 | 11/26/2023 5:58 PM
    Versatility beyond expectations
    This mini handheld ultrasonic homogenizer was truly an amazing purchase! Not only does it excel at homogenizing samples, but I have found it to be very versatile in different lab applications. Thanks to its adjustable power and volume range, I can handle a variety of samples from 0.1ml to 5ml. Both cell fragmentation and DNA dispersion can be done quickly.
