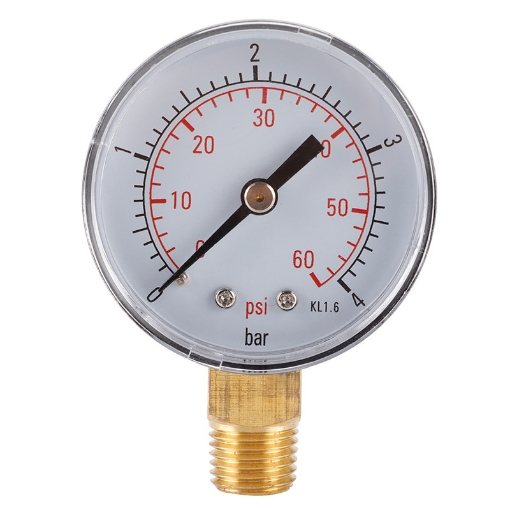

0 to 60 psi Pressure Gauge, 0~4 bar

Buy a 0 to 60 psi pressure gauge online. It is used for measuring water pressure, hydraulic pressure, oil pressure and air pressure. Diaphragm pressure gauge features a dual-scale display, 0~4 bar measuring range, 40mm dial diameter and stainless steel materials. Water/air pressure gauge with a 1/8" BSPT thread specification, suitable for mining, smelting, medical treatment, maintenance, etc.
SKU: SISCO-PG-60
$48.12
i h
Free shipping
Delivery date: 7-12 days
Overview


Get a 0 to 60 psi pressure gauge from sisco.com to help measure water pressure, hydraulic pressure, oil pressure and air pressure.  Water/air pressure gauge comes with a dual-scale display, 0~4 bar measuring range, 40mm dial diameter, stainless steel materials, 1/8" BSPT thread specification, waterproof, ideal for pressure detection in metallurgy, electric power, petroleum and chemical industry.

Pressure gauge details

Pressure gauge, φ40mm dial diameter, 1/8 installation diameter, BSPT thread, 0~60 psi & 0~4 bar measuring range.

  • 0 to 60 psi pressure gauge can be used as a water pressure gauge, air pressure gauge, hydraulic pressure gauge and oil pressure gauge.
  • Circular dial is enclosed in a stainless steel case for corrosion resistance. Diaphragm pressure gauge offers clear readings and is weather-resistant.
  • Brass and stainless steel wetted parts for measuring non-corrosive liquid and gas pressure. Such as water, oil, fuel, coolant, air, co2, nitrogen, and argon pressure test.
  • sisco pressure gauge with dual scale (0~60 psi/0~4 bar). Display accuracy of 2.5% over the entire range of the gauge.
  • It also has a lower-mount male connection with a 1/8" BSPT thread.


Applications

Pressure gauge is the most commonly used measuring instrument for displaying and controlling pressure. sisco diaphragm pressure gauges are widely used in the chemical industry, petroleum, metallurgy, mining, and electric power production, especially in vehicle maintenance shops, heat pipe networks, water and gas supply systems, etc.

Pressure gauge applications

Specs
  • Model: SISCO-TS-Y408-60psi
  • Dial Diameter: φ40mm
  • Installation Method: Radial
  • Range: 0~60 psi, 0~4 bar
  • Installation Diameter: 1/8
  • Thread Specification: BSPT
  • Size: 6x4x2.5cm
  • Material: Stainless Steel
  • Package Size: 8.5x6.5x4.5cm
  • Product Weight: 44g
  • Package Weight: 60g

Dimension (Unit: mm)

Pressure gauge dimensions

FAQs

Q1: What is a pressure gauge?
A1: A pressure gauge refers to an instrument that uses elastic elements as sensitive elements to measure and indicate pressure higher than the environment. It is used in almost all industrial processes and scientific research fields, mainly in heat pipe networks, oil and gas transmission, water and gas supply systems, and vehicle maintenance. Maintenance shop, etc. Especially in the process of industrial process control and technical measurement, mechanical pressure gauges are becoming more and more popular due to the high mechanical strength and convenient production of the elastic sensitive components of mechanical pressure gauges.

Q2: How does a pressure gauge work?
A2: The pressure gauge transmits the pressure deformation to the pointer through the elastic deformation of the sensitive components (Bourdon tube, diaphragm box, bellows) in the watch, and then the conversion mechanism of the watch movement, causing the pointer to rotate to display the pressure. This is the working principle of a pressure gauge.

Q3: What is a pressure gauge used for?
A3: sisco pressure gauges are both air pressure gauges and water pressure gauges and are mainly used for pressure detection in metallurgy, electric power, petroleum, chemical industry, light industry, machinery, etc. The pressure gauge relies on measures such as internal filling of damping oil and matching buffer devices, and has good shock resistance. It is suitable for occasions where the pressure of the measured medium has strong pulse changes or pressure shocks, and often suddenly unloads in the production process, as well as environmental vibrations. The pressure gauge can measure the average value of the pulsating pressure of gas and liquid, so as to overcome the damage caused by the strong pulse of the medium and the vibration of the environment to ensure the accuracy of the reading.

Tips: Why use a pressure gauge to measure tire pressure?

Because of the cold weather, after the tires have not been inflated for a long time, the monitoring of the tire pressure of the car can only rely on the alarm indicator light instead of showing the detailed pressure value used to detect the tire pressure. In summer, cold tire pressure is about 15% lower than normal, which will reduce the tire pressure on long-distance driving, and the tire pressure can easily be reduced to a minimum. sisco pressure gauge can be used as a tire pressure gauge. If the tire pressure is too high, a tire blowout will occur at any time, and it will also cause serious tire wear. Therefore, in different seasons, be sure to check the tire pressure.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


What is not covered?

  • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
  • Expendable parts.
  • Routine cleaning or normal cosmetic and mechanical wear.
  • Damage from misuse, abuse or neglect.
  • Damage from use of parts other than sisco approved.
  • Damage from use outside the product’s usage or storage parameters.
  • Damage from use of parts not sold by sisco.
  • Damage from modification or incorporation into other products.
  • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
  • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
