The dual-hole design and transparent protective cover enhance safety. The automotive spark tester's output voltage range is adjustable from 500V to 6000V, using high-voltage pulses to simulate engine ignition to test spark plugs for proper operation.

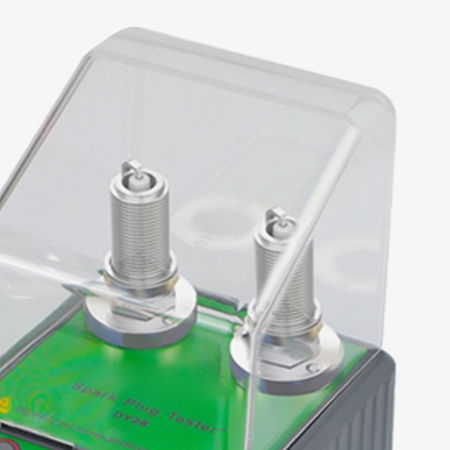

Dual interface slots, transparent protective cover
- The dual-hole design enables the car spark plug tester to test two spark plugs simultaneously, facilitating intuitive performance comparison and saving time.
- The transparent protective cover covers the spark plug interface, preventing high voltage contact and improving the spark tester tool's safety.
- The portable spark plug tester simulates engine ignition with high-voltage pulses to test spark plugs for proper operation, determining ignition intensity and gap condition.

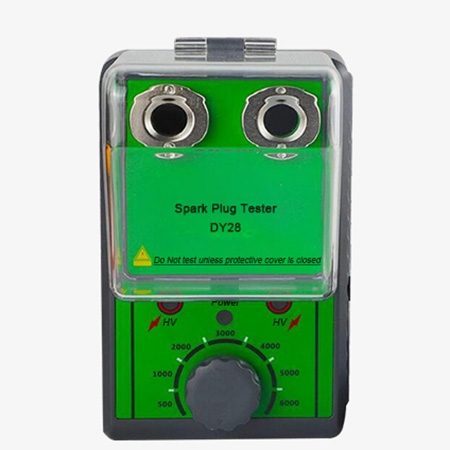

Adjustable voltage output, user-friendly knob design
- The automotive spark plug tester's knob adjusts the output voltage (500V to 6000V) to meet the needs of different spark plug types and engines.
- The adjustable spark tester's built-in high-voltage indicator clearly displays spark intensity, providing easy-to-understand test results.
- The user-friendly knob design allows for quick selection of different speeds and convenient operation.
- The internal structure of the high-voltage circuit ensures stable high-voltage output while reducing electromagnetic interference.
- The spark plug tester for car is suitable for a variety of gasoline vehicle spark plugs, meeting the testing needs of repair shops, mechanics, and vehicle owners.

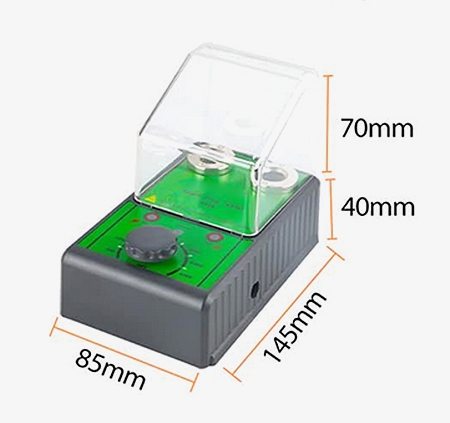

Car Spark Plug Tester Size
Application
The car spark plug tester is mainly used to detect the ignition performance of the spark plug, the output status of the ignition coil, and the working condition of the entire ignition system. It has important applications in many fields such as automobile maintenance, production quality inspection, and testing small internal combustion engine equipment. It can not only quickly diagnose faults, but also optimize engine performance and reduce emissions.
Motorcycles
Lawn mowers
Production Testing
Automobiles
Â
| Model | SISCO-SPT-DY28 |
| Adjustable Power | 500V~6000V |
| Input | 110-220V AC |
| Output | 12V 1A DC |
| Working Frequency | 1000~6000 rpm/min |
Q1: What is a spark plug tester?
A1: A spark plug tester is a device used to test spark plug performance. It simulates engine operating conditions to check whether the spark plug can generate a spark normally, thereby determining its working condition.
Q2: How does a spark plug tester work?
A2: A spark plug tester generates high voltage internally, simulating the high voltage generated by the engine's ignition system. Connect the spark plug to be tested to the tester. Under the action of the high voltage, a spark is generated between the spark plug electrodes. The tester displays the spark generation through an observation window or indicator light. The spark strength, frequency, and stability of the spark are used to assess the spark plug's performance.
Q3: What is a spark plug tester used for?
A3: It can quickly check the working condition of a spark plug and determine whether it needs replacement or repair. This helps prevent engine performance degradation or damage caused by spark plug failure. Using a spark plug tester can shorten troubleshooting time and improve repair efficiency. It helps ensure proper engine operation and driving safety.
Tips: What vehicles are spark plug testers suitable for?
Spark plug testers are suitable for all gasoline vehicles with a traditional spark plug ignition system. Most spark plug checkers are designed for 12V gasoline engines and are compatible with 99% of small gasoline engines and motorcycle spark plugs on the market.
