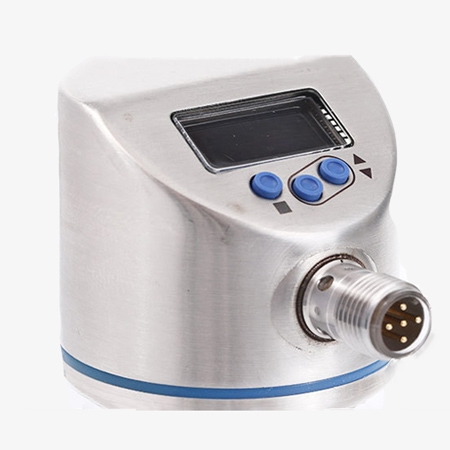

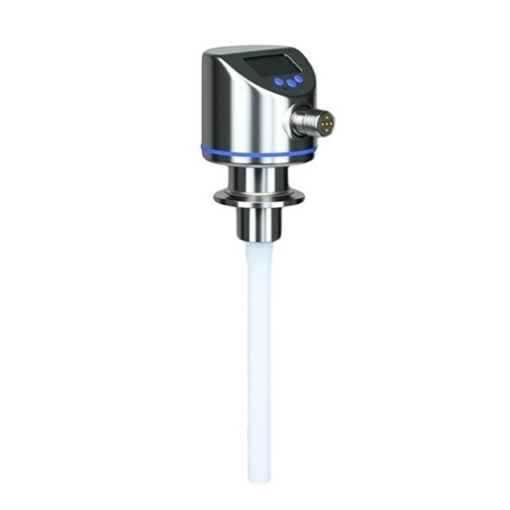

SISCO capacitive level sensor for corrosive/high-temperature liquids is designed for reliable liquid level measurement in demanding industrial environments. With a measuring range of 1-1500 mm, pressure resistance from 0 MPa to 30 MPa, and accuracy up to 0.5% FS, it provides stable and precise level monitoring. The IP67-rated housing ensures excellent protection against dust and water, while the compact 300g design makes installation easier in various process applications.
Robust Hardware & Construction for Tank Level Monitoring
- Corrosion-resistant build with flexible extension: This capacitive level sensor uses PFA, PTFE, and 316L stainless steel for wetted components, perfectly suited for corrosive and high-temperature liquids. Rod-type probe supports up to 5 m length; cable‑type probe can reach 25 m to fit deep tanks.
- Zero measurement dead zone: No blind measuring distance, enabling reliable liquid level measurement for all kinds of storage tanks and vessels. Accurate level transmission even at low liquid levels inside the tank.
Superior Measuring Performance & Adjustable Parameters
- High-precision level detection: Adopting the capacitive principle for liquid level measurement, it delivers mm-level accuracy to capture subtle liquid‑level changes for continuous tank monitoring.
- Configurable digital filtering for stable output: Built‑in digital filtering program with adjustable damping time ensures smooth and stable level readings. Calibrated zero-point and measuring range parameters can be modified on-site to match your working conditions.
Applications
Built to meet varied user measurement demands, this capacitive level sensor performs stable liquid-level monitoring for numerous industrial applications. It is widely deployed in the food industry, metallurgy, petroleum, and chemical sectors, offering dependable level detection for ordinary liquids as well as corrosive and high-temperature liquids.
Metallurgy Industry
Petroleum Industry
Chemical Process Industry

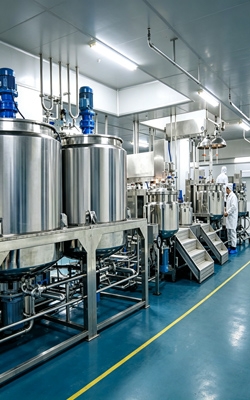

Food-Processing Industry
| Model | SISCO-CLS-TY300DR |
| Measuring Range | 1 ~ 1500 mm |
| Pressure Range | 0 MPa ~ 30 MPa |
| Electrode Temperature Range | -50 ~ 150 °C |
| Ambient Temperature | -40 ~ 80 °C |
| Relative Humidity & Output | 50-80% RH, 4-20mA |
| Weight | 300g |
| Wetted Parts Material | PTFE, 316L Stainless Steel |
| Housing Material | 304 Stainless Steel |

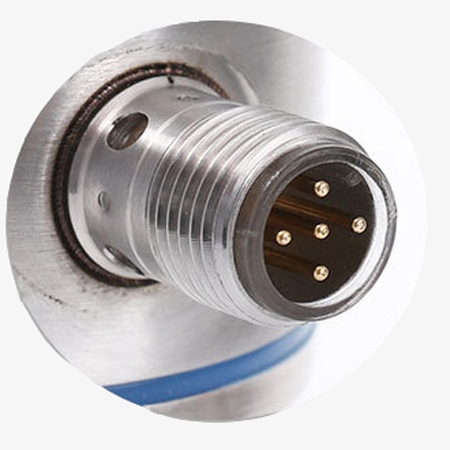

| Connection Type | M12*1 connector |
| Power Supply | 18 ~ 30 VDC |
| Wiring Protection | Reverse-polarity protection, overload protection, short-circuit protection |
| Housing Protection Grade | IP67 |
| Switch Repeatability | ±0.25% F.S (TYP.) |
| Analog Accuracy | ±0.5% F.S (TYP.) |
| Temperature Drift | ±0.02% F.S (TYP.) |
| Annual Drift | ≤0.2% F.S / year |
| Current Consumption | ≤35 mA |
| Response Time | ＜50 ms |
| Vibration Resistance | 10G/0~500Hz; 50G/1ms |

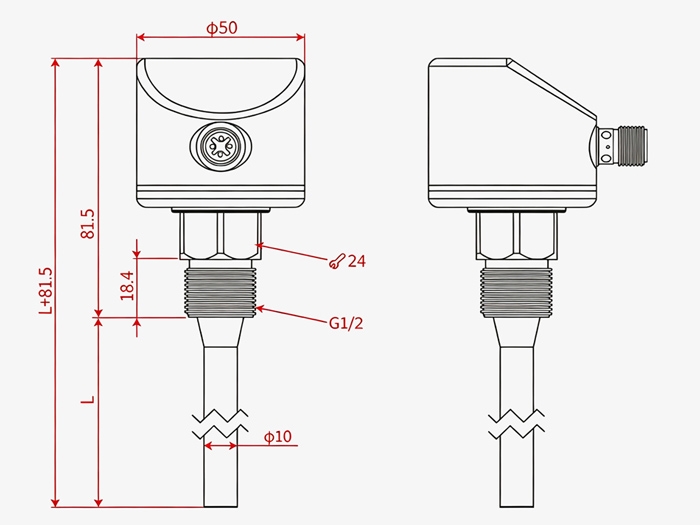

Dimensions (unit: mm)

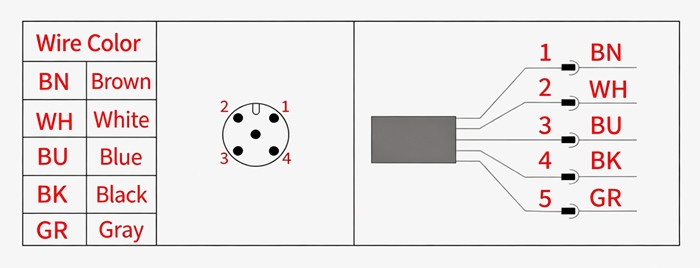

Wiring Connection
Q1: What pressure can this capacitive liquid level sensor withstand?
A1: This capacitive liquid level sensor can withstand a pressure range of 0 MPa to 30 MPa, making it suitable for liquid level measurement in high-pressure, industrial, and process equipment. Its robust design allows stable operation under demanding pressure conditions while maintaining reliable level detection performance.
Q2: Does this capacitive level sensor support high-temperature liquid measurement?
A2: Yes. With wetted parts made of PFA, PTFE, and 316L stainless steel, this sensor is engineered for high-temperature and corrosive liquid tank level monitoring.
Q3: What is the measuring range of this capacitive level sensor?
A3: This capacitive level sensor supports a 1–1500 mm measuring range, allowing it to be used for liquid level monitoring in different sizes and industrial equipment.
Tips: What is the protection rating of this capacitive level transmitter?
This capacitive level transmitter features an IP67 protection rating, meaning it is dust-tight and can withstand temporary immersion in water. The IP67 housing helps protect the sensor from moisture, dust, and harsh industrial conditions.
