The carbon monoxide detector with dedicated sensors continuously monitor the surrounding atmosphere, while the clear color display provides easy-to-read gas concentration data in real time. With audible, visual, and vibration alarm functions on supported configurations, the detector helps users identify abnormal gas levels and potential atmospheric hazards more quickly.

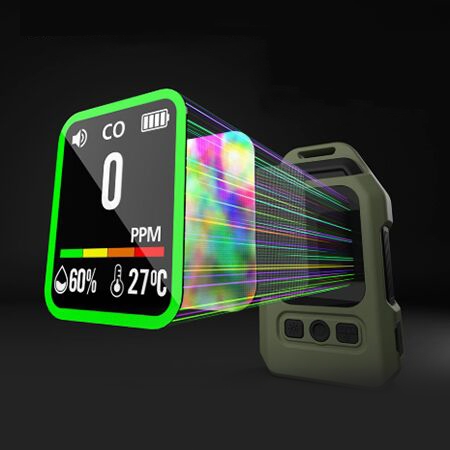

Color LCD Display, Easy-to-Read Measurements
- Bright Color LCD Screen: Features a clear color LCD display for easy viewing of carbon monoxide concentration and measurement status.
- Real-Time CO Readings: Displays the detected CO concentration in real time, helping users quickly understand current air conditions.
- Intuitive Data Presentation: Large, easy-to-read digits and clear screen information make measurement results simple to identify at a glance.
- Clear Alarm Status: Visual indicators make it easier to recognize alarm conditions and changes in CO concentration.

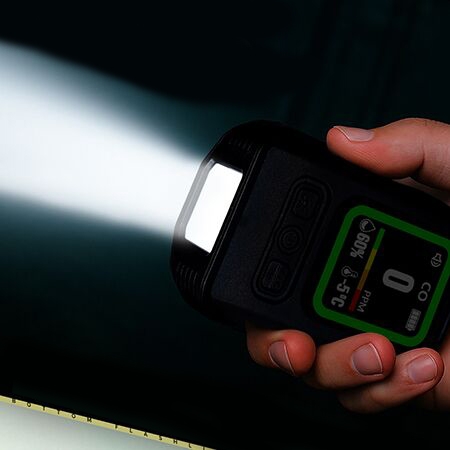

Built-In Bottom Lighting, Convenient for Nighttime Outdoor Use
- Built-In Bottom Light: Integrated lighting at the bottom of the detector provides additional illumination when working or checking equipment in dark environments.
- Improved Nighttime Visibility: Helps illuminate the surrounding area and measurement position, making nighttime operation more convenient.
- Easy Operation in Low-Light Conditions: The built-in light reduces the need for carrying a separate flashlight, helping users operate the detector more efficiently after dark.
- Portable All-in-One Design: Combines CO detection with auxiliary lighting in one compact device for greater convenience during nighttime field use.
Applications
A portable carbon monoxide detector is a compact device designed to detect and monitor carbon monoxide (CO) concentrations in the surrounding air.
- RV & Camper – Help monitor CO levels inside RVs, campers, and mobile living spaces during travel and overnight stays.
- Camping & Outdoor Activities – Suitable for camping areas, outdoor shelters, and temporary accommodations where fuel-burning equipment may be used.
- Hotels & Vacation Rentals – Provides an additional way to check CO levels when staying in unfamiliar indoor environments.
- Garages & Workshops – Useful for monitoring areas where vehicles, generators, heaters, or other combustion equipment may produce carbon monoxide.
- Boats & Marine Applications – Convenient for monitoring CO levels in cabins and enclosed areas of boats.
- Travel & Outdoor Work – Compact and portable for road trips, field operations, construction sites, and other mobile work environments.
Camping
Hiking
Mountain Climbing
Picnic
| Model | SISCO-GD-9617B |
| CO2 Detection Range | 400-5000 ppm |
| CO Detection Range | 0-1000 ppm |
| Temperature Measuring Range | -10°C (14°F)~55°C (131°F) |
| Humidity Measuring Range | 0-100% RH |
| Warm Up Time | 15 Seconds |
| Data Refresh Frequency | 2 Seconds |
| Charging Input | 5V/1A |
| Full Charging Time | Approx. 3 Hours |
| Working Time of Carbon Dioxide after fully Charged | ≥95 Hours |
| The Max. Luminous Flux(High) | ≥100Lm |
| The Max. Luminous Flux(Low) | ≥20Lm |
| Working Time of Torch after fully Charged(High) | ≥4 Hours |
| Working Time of Torch after fully Charged(Low) | ≥15 Hours |
| Dimensions | 97*56*31 mm |
| Weight | 120 g |

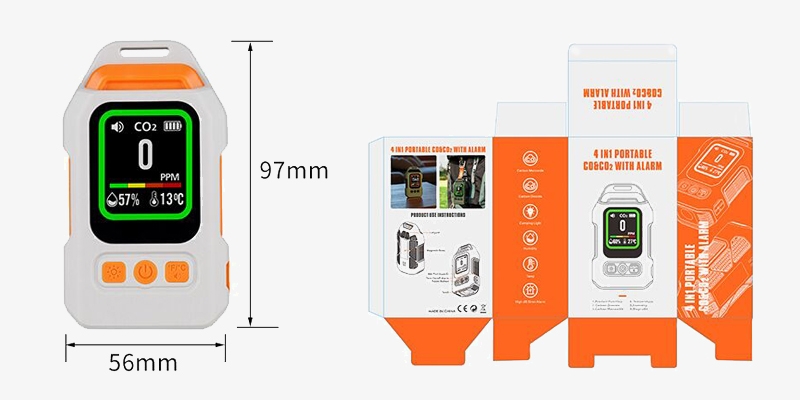

Dimension
Q1: What is a gas detector?
A1: A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is ppm of gas detector?
A3: Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips: Can the detector monitor CO and CO₂ simultaneously?
Yes. A 4 in 1 CO & CO₂ gas detector equipped with dedicated sensors can monitor carbon monoxide (CO) and carbon dioxide (CO₂) simultaneously. The device continuously samples the surrounding air and processes the signals from each sensor independently, allowing multiple gas concentrations to be displayed in real time on the screen. This provides a convenient way to monitor different atmospheric conditions with a single portable instrument.
Simultaneous CO and CO₂ monitoring is especially useful in workshops, industrial facilities, boiler rooms, garages, laboratories, warehouses, HVAC inspections, construction areas, and other enclosed or poorly ventilated spaces. CO monitoring helps identify potential carbon monoxide hazards from combustion sources, while CO₂ monitoring provides useful information about ventilation and changes in indoor air conditions. With real-time readings and high/low concentration alarms on supported models, users can respond more quickly when gas levels reach preset thresholds.
