Cup Anemometer, three cup, 0~45 m/s, Output RS485

Get a 3-cup anemometer from SISCO. The anemometer with wind speed measurement range 0~45 m/s, output signal pulse/current 4-20mA/ RS-485/ voltage 0-5V for selection, supply voltage DC 5-24V or 12-24V. The 3-cup anemometer is a sensitive wind speed sensor designed to measure air velocity and wind run.
SKU: SISCO-CA-045
*
*
$113.38
i h
Free shipping
Delivery date: 7-12 days
Overview


Three-cup anemometer for sale with 0-45 m/s measurement wind speed. Wind cups of the wind gauge are made of carbon fiber, with high intensity and low starting threshold. The signal processing units are built in the housing shell. It can be widely used in meteorology, marine, environmental monitoring, weather station, airport, harbor, laboratories, industrial and agricultural areas.

Detail of 3-cup anemometer

Wiring-free design

  • The upper and lower wind speed limits can be set on the phone, and when the wind speed reaches the upper and lower limits, the phone will be alerted.
  • The phone monitors the current wind speed value in real time and displays the current wind speed.
  • In the cell phone software, you can check the real-time wind speed value at any time.

Detail of 3-cup anemometer

Electroplating spraying treatment outdoor use level

  • The external plating spraying treatment, with good anti-corrosion, anti-leaching and other characteristics to protect.
  • Transmitter long-term use without rusting phenomenon.

3-Cup Anemometer Output Characteristics

  • Pulses Output

3-Cup Anemometer Output Characteristics

  • Pulses Output

Characteristic transfer function:

F = 0, V = 0

F ≠ 0, V = 0.1 + 0.0875 × F

(where V = wind speed (m/s), F = output frequency (Hz) )

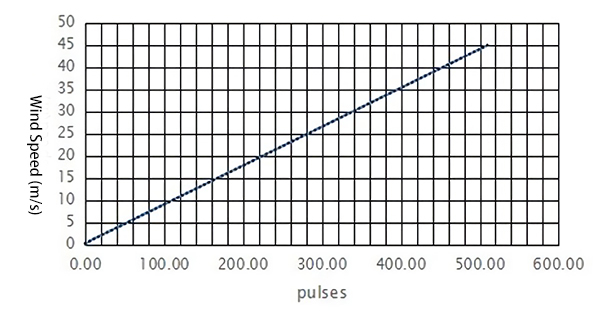

Pulses output diagram of 0-45 m/s 3-cup anemometer

  • Current Output

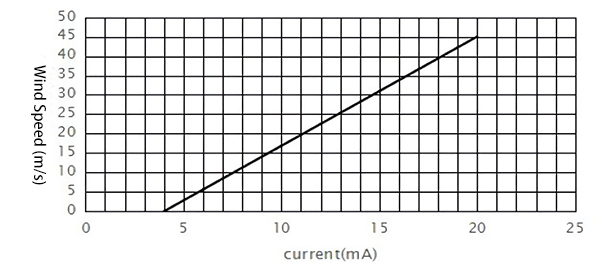

Current output diagram of 0-45 m/s 3-cup anemometer

  • Voltage Output

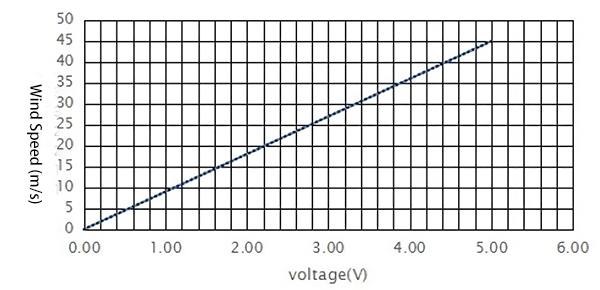

Voltage output diagram of 0-45 m/s 3-cup anemometer

  • RS-485 Output

lf the transmission distance is over 100m, please add a 120Q terminal matching resistances on the front endand back end of bus interface respectively. See the modbus communication protocol specification.



Application

The digital anemometer can be widely used outdoors (such as riding), and for measuring wind speed and air volume. So the vane anemometer is widely applied to windsurfing, outdoor measurement, navigation survey, offshore fishing survey and electric power measurements, shooting, model plane flying, etc outdoor activities. It is also appropriate for industrial and family use, normally in conjunction with dust and fume extraction devices, heating and air conditioning systems, etc, measuring wind speed and air volume.

Application of digital anemometer

Specs
Model SISCO-RK100-02
Output Signal (Optional) Pulses (PNP) 4-20mA 0-5V RS-485
Power Supply (Optional) DC 5V, 12-24V
Load Capacity >1kΩ, default high level: 5V <500Ω (typ 250Ω) >1kΩ -
Wind Speed Range 0~45 m/s
Accuracy ± (0.3 + 0.03V) m/s (V is the current wind speed)
Starting Threshold <0.5 m/s
Limit Wind Speed 50 m/s
Ingress Protection IP65
Operating Temperature -40 ~ +50℃
Cable Grade Nominal voltage: 300V, Temperature grade: 80℃
Net Weight 170g
Dimension Cup rotor: Ф 179mm, Height: 160mm
Main Material Carbon Fiber
Finish Polyester powder electrostatic spraying (black))
Storage Condition 10~50℃ @ 20%-90% RH
FAQs

Q1: How do you ensure accuracy of anemometer?
A1: To make sure anemometers are reliable and precise, they should be regularly calibrated. This is the procedure of checking the accuracy of a measuring instrument – as well as the adjustment to align it with the standard. The process allows equipment to produce more accurate results than would've otherwise been possible.

Q2: What affects an anemometer?
A2: The higher the wind speed, the more power is required to keep the wire at a constant temperature. Wind speed can also be determined by measuring air pressure. (Air pressure itself is measured by an instrument called a barometer.) A tube anemometer uses air pressure to determine the wind pressure, or speed.

Q3: Does an anemometer measure wind direction?
A3: An anemometer looks like a weather vane, but instead of measuring which direction the wind is blowing with pointers, it has four cups so that it can more accurately measure wind speed. Each cup is attached to the end of a horizontal arm, each of which is mounted on a central axis, like spokes on a wheel.

Tips: What is a 3-cup anemometer?

The 3-Cup Anemometer is a traditional type, sensitive sensor for horizontal wind measurement. All 3-Cup Anemometers are constructed with lightweight and UV-resistant plastic cups.
