    DC Leakage Current Clamp Meter, 0.0mA-6.0A DC

    The DC leakage current meter with 0.0mA-6.0A measuring range, jaw opening 25*30mm. The iron core is made with high-performance permalloy, with digital integration technology, small size and high accuracy, and a resolution of 0.1mA.
    SKU: SISCO-LCM6
    $210.32
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Good quality DC leakage current clamp meter comes with a measuring range of 0.00mA-6.0A, and a large jaw opening of 25*35mm. The leakage meter has functions such as data retention and data storage and can save 99 sets of data. The instrument is connected to the computer through the USB interface, and the saved data can be uploaded to the computer for easy reading, analysis, storage, printing, etc.

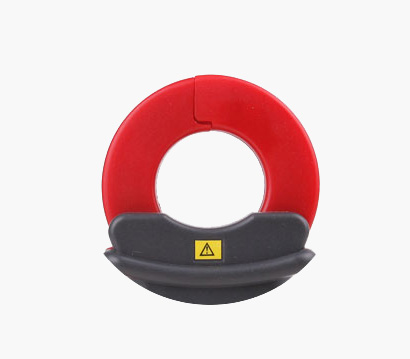

    Detail of earth leakage clamp meter

    Super large diameter, more practical

    • Jaw size 25*30mm
    • Opening 25mm, can clamp diameter 25 wires

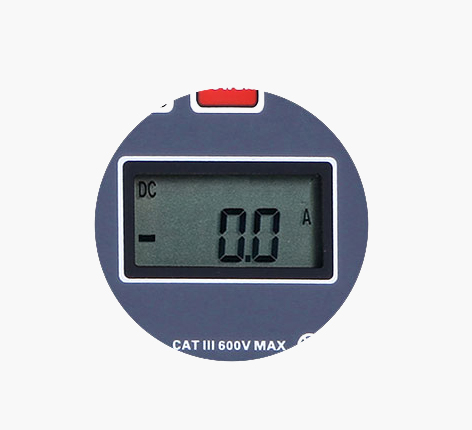

    Detail of clamp current ampere meter

    Backlit HD screen design

    • The logo is displayed in the upper left corner
    • DC direction is negative display "-"

    Applications

    sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.

    Clamp current meter applications

    Specs



    Model SISCO-ETCR6300D
    Current Range

    0.0mA-6.0A

    Resolution

    0.1mA

    Measurement Accuracy (23℃ ±3℃ , below 70%RH)

    Range: 0.0mA~300.0mA; Resolution:0.1mA ; DC: ±2%rdg±5dgt

    Range: 0.30A~6.00A ; Resolution:0.01A; DC: ±2%rdg±5dgt

    CT Size 25*30mm
    Meter Dimensions 175mm×70mm×38mm
    Weight 210g
    Power Supply

    Alkaline battery 6LR61 9V

    LCD Size

    35mm×21.5mm; display area: 32mm×15mm

    Sampling Rate

    2 times/second

    Zero-adjustment

    Yes, press the "ZERO" key to clear before measurement

    Communication Interface

    With a USB interface, stored data can be uploaded to the computer, and software monitoring.

    Data Storage

    99 groups, flash display "FULL" symbol indicates storage full

    Peak Hold

    Peak value capture and hold function, long press HOLD key display peak value.

    Data Hold

    Data hold function: "DH" symbol display

    Overflow Display

    Exceed measure range overflow function: "OL A" symbol display

    Polarity Indication

    In DC current test auto-identified and display the "-" symbol

    Auto Shut Down

    5 minutes after powering on, it will power off automatically without any operation to reduce the power consumption.

    Battery Voltage

    Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery

    Working Current

    20mA

    Limit Temperature Error

    -10°C~0°C and 40°C~50°C, max error increase 2%rdg

    Line Voltage

    Below AC 600V circuit test

    Shift

    0.0mA~6.00A DC Automatically

    Accessories

    Meter: 1PCS; Communication cable: 1PCS; Cloth bag: 1PCS

    FAQs

    Q1: What is clamp ampere meter?
    A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.

    Q2: How does a current clamp meter work?
    A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.

    Q3: How to use a clamp ammeter?
    A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.

    Tips: How to detect the leakage current by using a DC Leakage Current Clamp Meter?

    Leakage detection is different from the usual current detection, two (single-phase 2-wire type) or three (single-phase 3-wire type, three-phase 3-wire type) must be clamped. It can also clamp the grounding wire for detection. The insulation management method of detecting leakage current on low-voltage circuits has become the primary means of judgment. Since it was confirmed (revision of electrical equipment technical standards in 1997), it has been used in buildings and The factory gradually adopts the leakage current clamp meter to detect.
