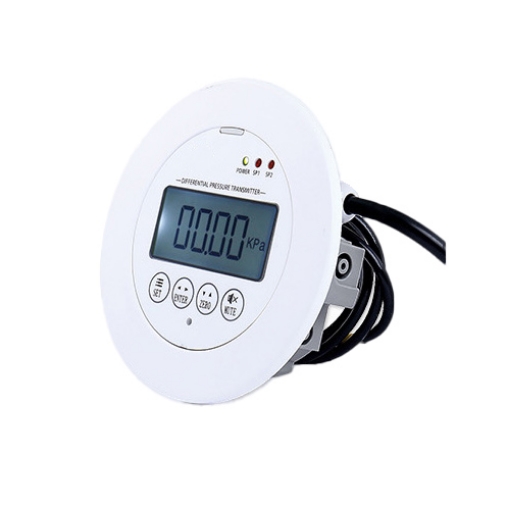

Suited for measuring differential pressure of air and neutral, non-corrosive gases, this differential air pressure sensor supports both wall-mounted and embedded installation. Equipped with RS485 output, dual relay alarm channels, IP65 protection, 15-28VDC power input, and a high resolution of 1/2000, it is widely adopted for clean-room, laboratory, and HVAC ventilation pressure monitoring scenarios.
Installation & Structural Features

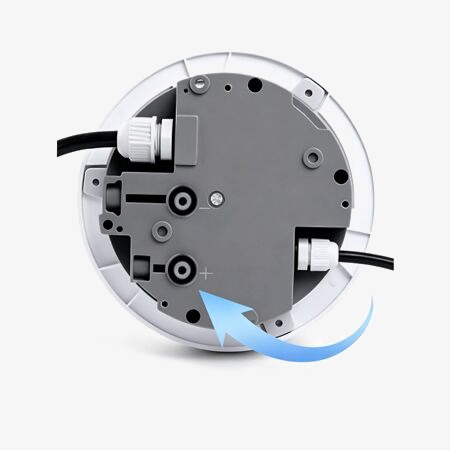

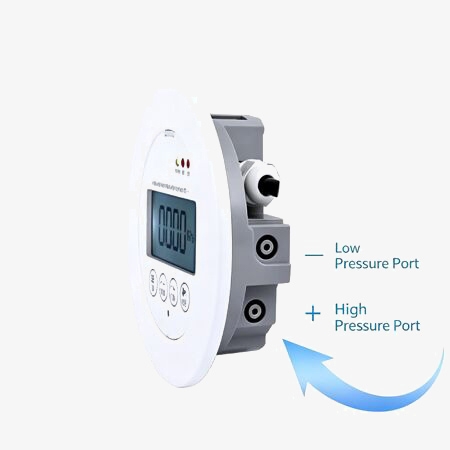

- Multiple air inlet configurations: Comes with front panel, rear-panel, and side panel air inlet options, perfectly adaptable to diverse field installation layouts for differential air pressure sensor deployment.
- Dual mode mounting capability: Compatible with wall-mounted and embedded installation styles, meeting varied on-site mounting demands for HVAC and clean room pressure measuring projects.
- Flame-retardant ABS enclosure: Constructed from flame-retardant ABS material, offering superior impact resistance and heat resistance to secure inner pressure sensing components under industrial-grade working conditions.
Performance & Functional Features
- Premium imported sensing wafer core: Adopts an imported high-performance wafer core, delivering high measurement accuracy, minimal temperature drift, and exceptional long-term working stability for differential pressure measurement.
- On-site configurable audible visual alarm with built-in buzzer: Integrated buzzer enables audible visual alarm reminders; users are allowed to set and tweak alarm thresholds directly on site without extra auxiliary equipment.
Application
Specially engineered for commercial‑industrial environments, this differential air pressure sensor supports both wall‑mounted and embedded installation. Optimized to measure air and non‑corrosive neutral gases, it performs accurate measurements of positive pressure, negative pressure, and differential gas pressure for diverse ventilation ductworks, air‑conditioning systems, and air‑handling equipment.
Environmental Monitoring
Cleanroom
Laboratory
Industrial Equipment
Â
| Model | SISCO-DPS-CCY81 |
| Measuring medium | Air and neutral gas (compatible with contact material and humidity < 90% RH, no condensation) |
| Measuring range | 0~10kPa (optional; please contact us if other ranges are required) |
| Accuracy | 0.5%FS or 0.25%FS (range ≥1kPa) |
| 1%FS or 0.5%FS (range <1kPa) | |
| Pressure type | differential pressure |
| Output signal | RS485 |
| Alarm output | relay output *2 (contact capacity 220VAC, 3A) |
| Power supply voltage | 15~28VDC |
| Temperature compensation | -10~60℃ |
| Medium temperature | -10~60℃ |
| Connection time | 400ms |
| Response frequency | ≤5Hz |
| Stability performance | ±0.3%FS/year (range ≥1kPa) |
| ±0.5%FS/year (range ≤1kPa) | |
| Temperature drift | ±0.03%FS/℃ (within temperature compensation range) |
| Durability | 1x106 times (number of cycles from lower limit to upper limit of range) |
| Overall weight | about 365g |
| Protection level | IP65 |
| Resolution | 1/2000 |
| Maximum power | ≤0.015Us (W) |
| Insulation resistance | ≥100MΩ, 500VDC |
| Insulation strength | 500VAC |
| Environmental temperature | -40~85℃ |
| Environmental humidity | 0%~95%RH (no condensation and no condensation) |
| Certification | CE, ISO 9001, SGS |

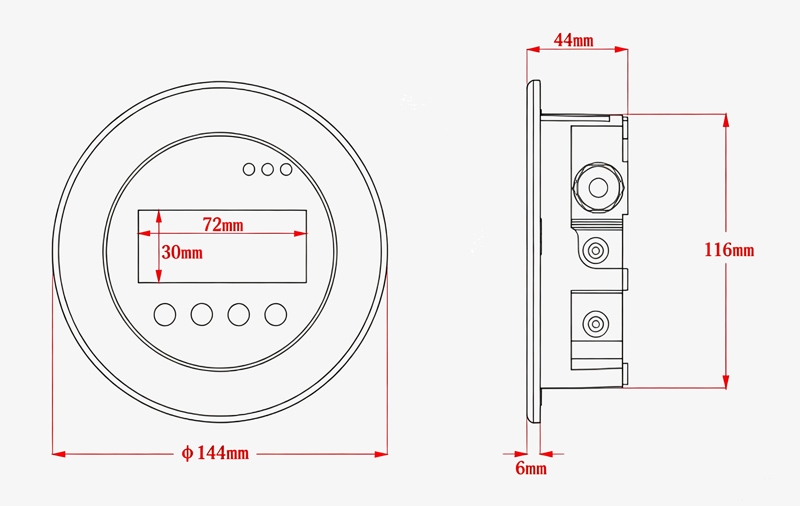

Dimensions (unit: mm)
Q1: Can this differential air pressure sensor monitor HVAC systems?
A1: Yes, this differential air pressure sensor is well‑suited for HVAC system monitoring. It measures positive pressure, negative pressure, and differential pressure of air and neutral gases, working reliably for ventilation ducts and air‑handling equipment.Â
Q2: How fast does the differential air pressure sensor respond?
A2: The differential air pressure sensor has a connection time of 400ms and a response frequency up to ≤ 5Hz, allowing quick detection of pressure changes in monitoring applications.
Q3: What installation methods are available for this differential air pressure sensor?
A3: This differential air pressure sensor supports both wall-mounted and embedded installation methods. The flexible installation design allows it to be easily integrated into HVAC systems, ventilation equipment, control cabinets, and industrial monitoring devices.
Tips: What temperature range can the differential air pressure sensor operate in?
The differential air pressure sensor supports an environmental temperature range of -40~85℃, while the medium temperature and temperature compensation range are -10~60℃ for stable measurement performance.
