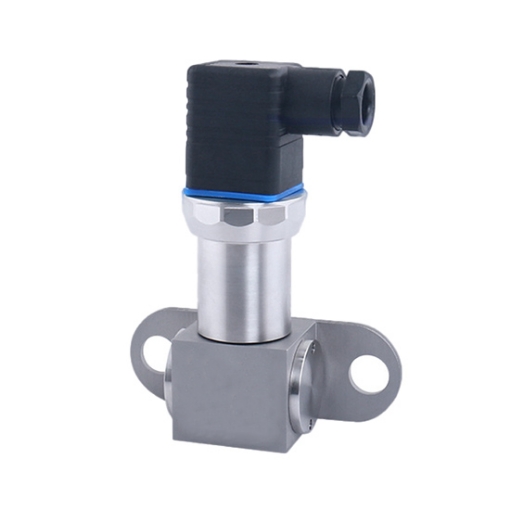

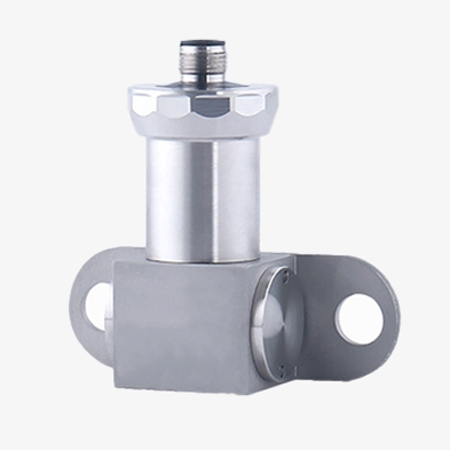

SISCO Water differential pressure sensor is designed for accurate and responsive pressure monitoring in industrial systems. It supports a 0–2.5 MPa differential pressure range, 20 ms response time, and 0.25% FS accuracy. With 10 million pressure cycles and IP65 protection, which is built for long-term, repeated measurement.

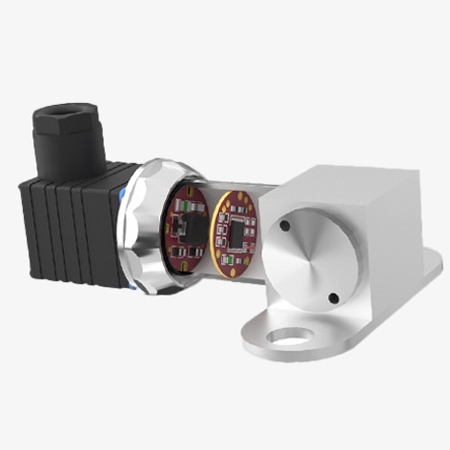

- Patch Isolation & Integrated Chip: This water differential pressure sensor uses patch isolation technology and an integrated chip, supporting wide‑voltage power input for flexible differential pressure measurement in diverse field deployments.
- Strong Anti‑interference & Lightning Protection: Special intercept design delivers high anti‑interference ability and lightning‑proof performance, ensuring stable signal output for the differential pressure transmitter under complex site conditions.
- Multiple Circuit Protection: Built‑in flow‑limiting, pressure‑limiting, and reverse‑splicing protection safeguards the water differential pressure sensor against damage caused by abnormal working conditions.
- High‑Performance Sensing Core: Delivers high precision, excellent stability, fast response rate, and great shock‑resistance to achieve trustworthy differential pressure measurement for liquid and gas media.
- Compact & Humanized Mechanical Design: Compact structure for easy installation. Anti‑rotation buckle prevents cable breakage triggered by mis‑installation and improves the overall protection grade of this differential pressure sensor.
- Breathable Sensor Structure: Breathable structure blocks moisture intrusion and prevents condensation, maintaining consistent high accuracy for the water differential pressure sensor in humid working surroundings.
Applications
Our water differential pressure sensor is engineered for industrial‑grade differential pressure measurement of both liquid and gas media. It is widely deployed for industrial equipment, pharmaceutical and biotechnology applications, as well as flow monitoring tasks.

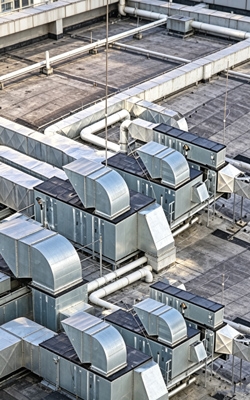

HVAC

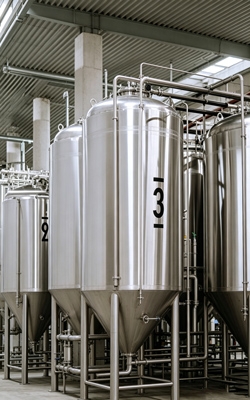

Industrial Gases Monitoring

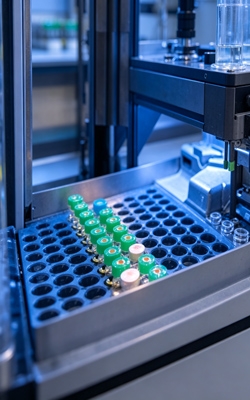

Pharmaceuticals

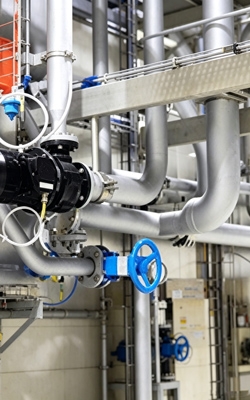

Industrial Equipment
| Model | SISCO-DPS-CCY17 |
| Measured Medium | Liquid or gas (compatible with wetted materials) |
| Pressure Type | Differential pressure |
| Measurement range | 0 ~ 2.5MPa (optional) |
| Output Signal | 4 ~ 20mA, RS485, 0 ~ 10VDC, 0 ~ 5VDC, 1 ~ 5VDC, 0.5 ~ 2.5VDC |
| Power Supply | 9 ~ 36VDC, 15 ~ 36VDC, 3 ~ 5VDC |
| Medium Temperature | -40 ~ 85 °C |
| Response Time | 20 ms |
| Accuracy | 0.25% FS (differential range / rated range ≥ 1:2.5) 0.5% FS (differential range / rated range < 1:2.5) Repeatability ≤ 0.05% FS, Hysteresis ≤ 0.05% FS Head display accuracy 0.5% FS, LED (digital tube) display |
| Note | Reference conditions: temperature 15~25 °C, atmospheric pressure 86~106 kPa, humidity 45~75% RH |
| Response Frequency | Analog output ≤ 30 Hz, digital output ≤ 5 Hz |
| Stability | ±0.1% FS/year |
| Temperature Compensation | -10 ~ 70 °C |
| Temperature Drift | ±0.01% FS/°C (within compensation range) ±0.05% FS/°C (outside compensation range) |
| Protection Rating | IP65 (without display); IP54 (with display) Note: the above ratings are achieved with the electrical connection completed |
| Durability | 10×10⁶ cycles (cycles from lower range limit to upper range limit) |
| Weight | ≈415 g (without display); ≈460 g (with display) |
| Resolution | Analog output: 0.01% FS; digital output: 0.05% FS |

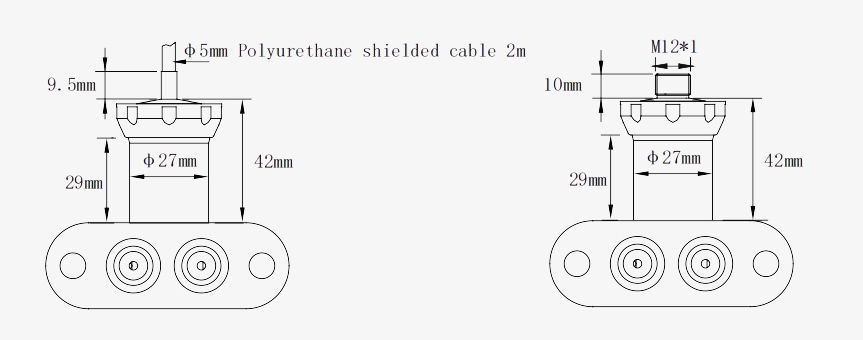

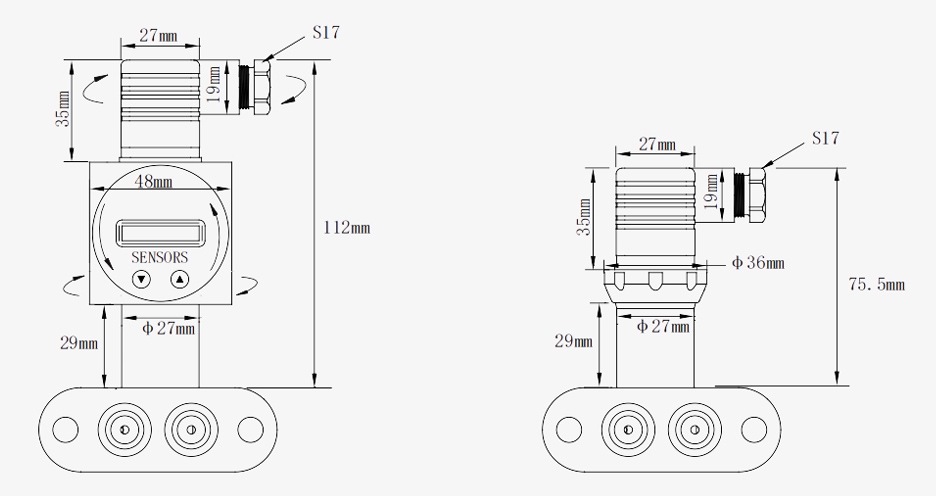

Dimensions (unit: mm)
The outlet line of Hesman plug shows Hersman plug outlet
Direct outgoing line Aviation plug outlet

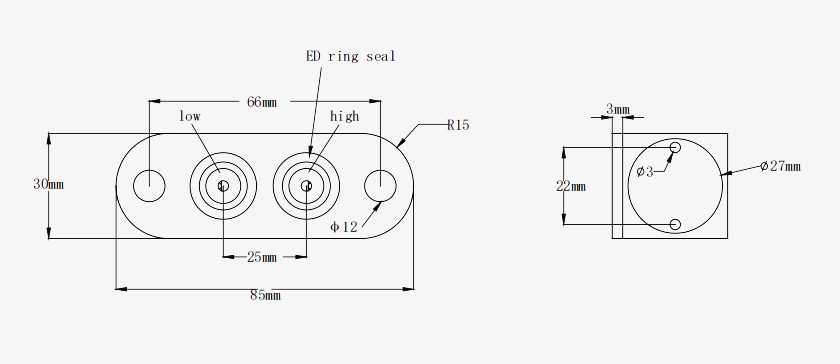

Lower dimension
Q1: What temperature range does this water differential pressure sensor support?
A1: This water differential pressure sensor supports a medium temperature range of -40 to 85°C, making it suitable for measuring differential pressure in both cold and relatively high-temperature liquid or gas applications.
Q2: Does temperature affect the water differential pressure sensor measurement?
A2: Yes. Temperature changes can cause measurement drift in the water differential pressure sensor. This differential pressure sensor provides temperature compensation from -10 to 70°C to reduce the influence of temperature changes on measurement accuracy.
Q3: Where can the water differential pressure sensor be used?
A3: This water differential pressure sensor fits broad industrial applications including workshop equipment, textile, printing, packaging, robotics, and pneumatic control. It also serves pharmaceutical & biotechnology processes for pharmaceutical water, disinfection, and drying workflows.
Tips: Does the water differential pressure sensor have a digital display?
Yes. The water differential pressure sensor is available with or without a display. The with-display version uses an LED digital tube to show the differential pressure reading directly, making it convenient for on-site checking. The no-display version is designed for applications where the pressure data is read through the connected control or monitoring system.
